QUICKFIRE® WRAP AROUND
22 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL825
Installation
Installing Boom Components

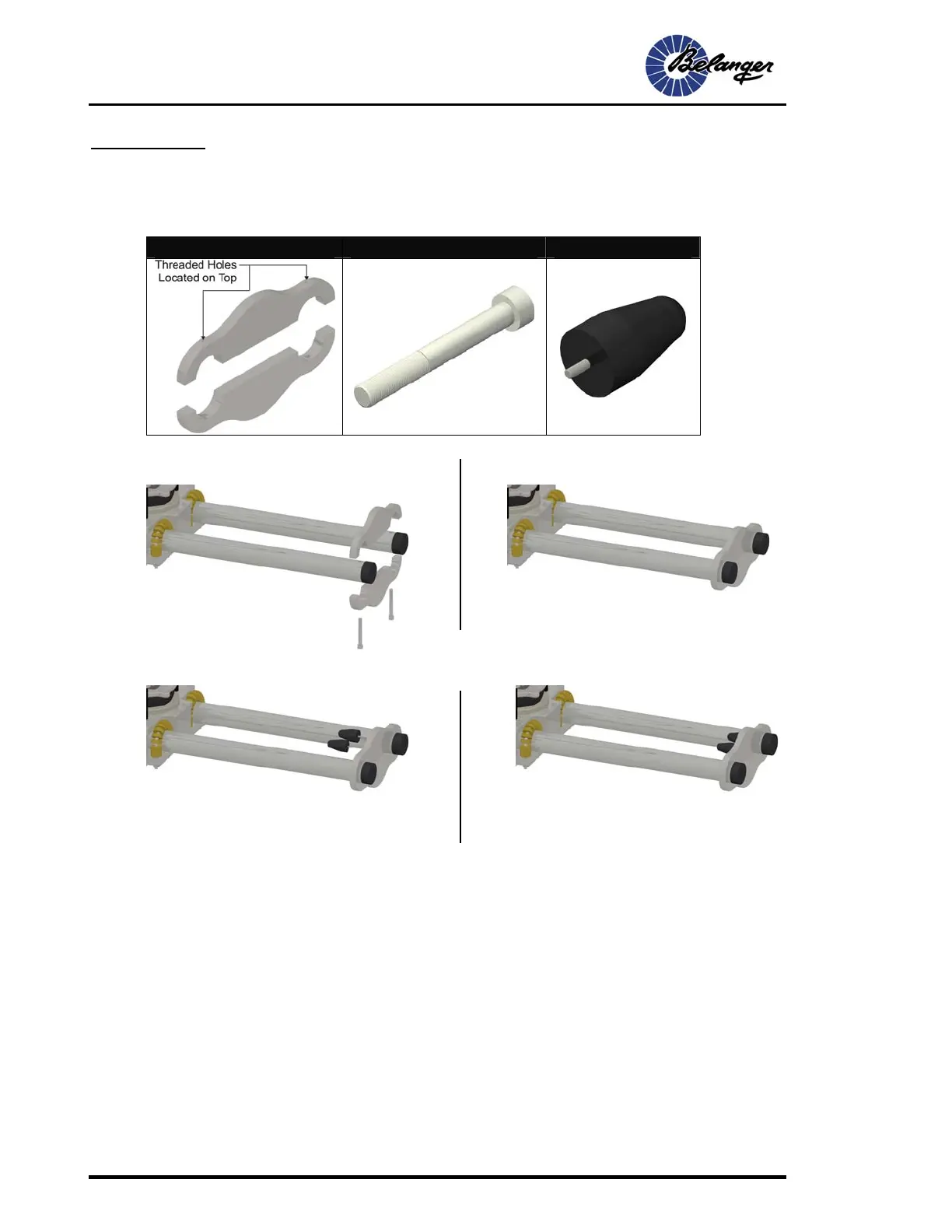

6) Locate the parts shown below.
Boom End Plates 1/2-13 x 5” Socket Head Bolt Positive Stop Bumper
7) Secure the above items into place as shown below. The piece with the tapped hole on top is
the upper piece.
8) Locate the Rubber Bumper-Stop and install it as shown below.
If the Head Assembly does not move smoothly along the rails, the plastic bearing may need
adjusting. See head Assembly Bearing Adjustment later in this document.
Before After
Before After
