QUICKFIRE® WRAP AROUND
38 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL825
Installation
Installing Cleaning Material
Upper Hub: Neo-Tex®
10) Locate 12 of the 28” x 8 x 1/4” thick” Neo-Tex® pieces and twelve 8” Wash Clips.
11) Place the Wash Clips ends through the holes of the packs.
12) Fill every third “C” Channel slot as shown below (12 pieces in all). Make sure the Packs are
pushed down as far as possible. Be sure the flaps are in the right direction.
13) Locate 12 of the 32” x 10”
x 1/4” thick Neo-Tex® pieces and twelve 10” Wash Clips.
14) Place the Wash Clips ends through the holes of the packs.
15) Fill every third “C” Channel slot as shown below (12 pieces in all). Make sure the Packs are
pushed down as far as possible. Be sure the flaps are in the right direction.

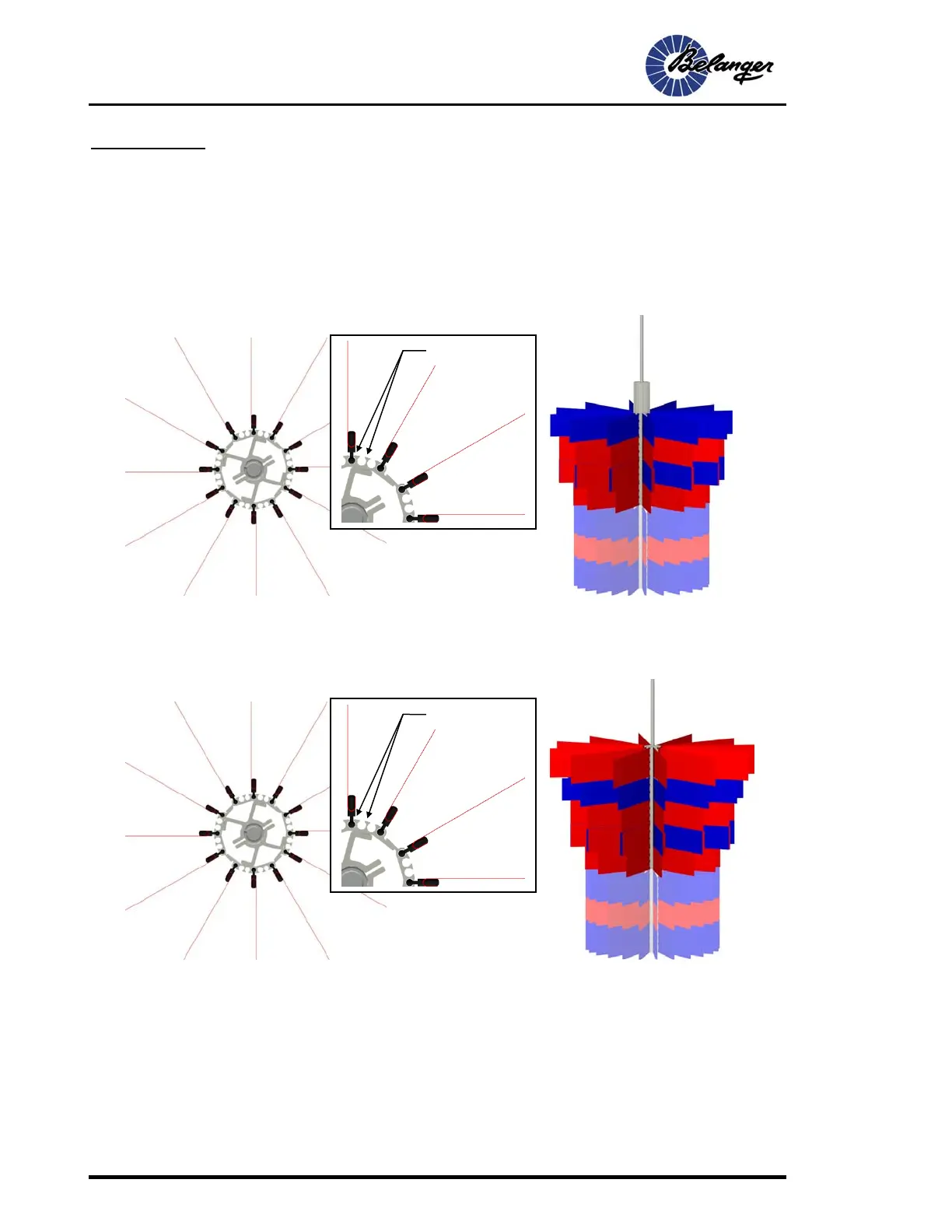

Hub Overhead View
Fill every third slot
12 (28” x 8 x 1/4” thick”)
Pieces of Neo-Tex®, 1 per
clip
12 Wash Clips
Hub Overhead View
Fill every third slot
12 (32” x 8” x 1/4” thick) Pieces of Neo-Tex®, 1 per clip
12 Wash Cli
p
s
