QUICKFIRE® WRAP AROUND
56 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL825
Operational Performance and Controls

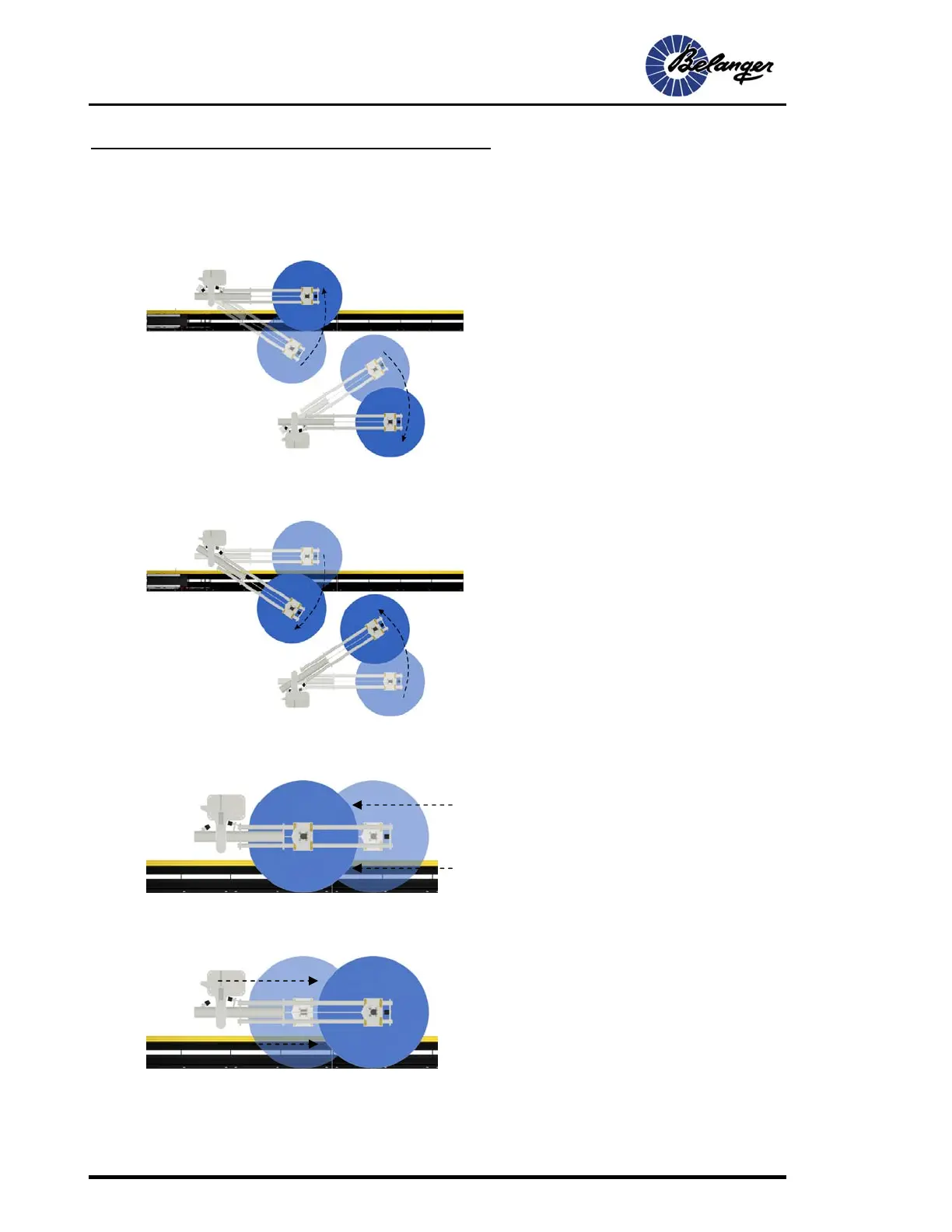

Understanding Component Movement
Swing Retract
This is the motion of the full boom when it is moving away from its initial mid-track position as shown below.
.
Swing Extend
This is the motion of the full boom when it is moving toward its initial mid-track position as shown below.
.
Head Retract
This is the motion of the head alone when it is moving “up” the rails towards the stand as shown below.
.
Head Extend
This is the motion of the head alone when it is moving “down” the rails away from the stand as shown below.
.
