PL-6000DC/DCX Two-Post Parking Lift 24 P/N 5900273 — Rev. A6 —July 2024

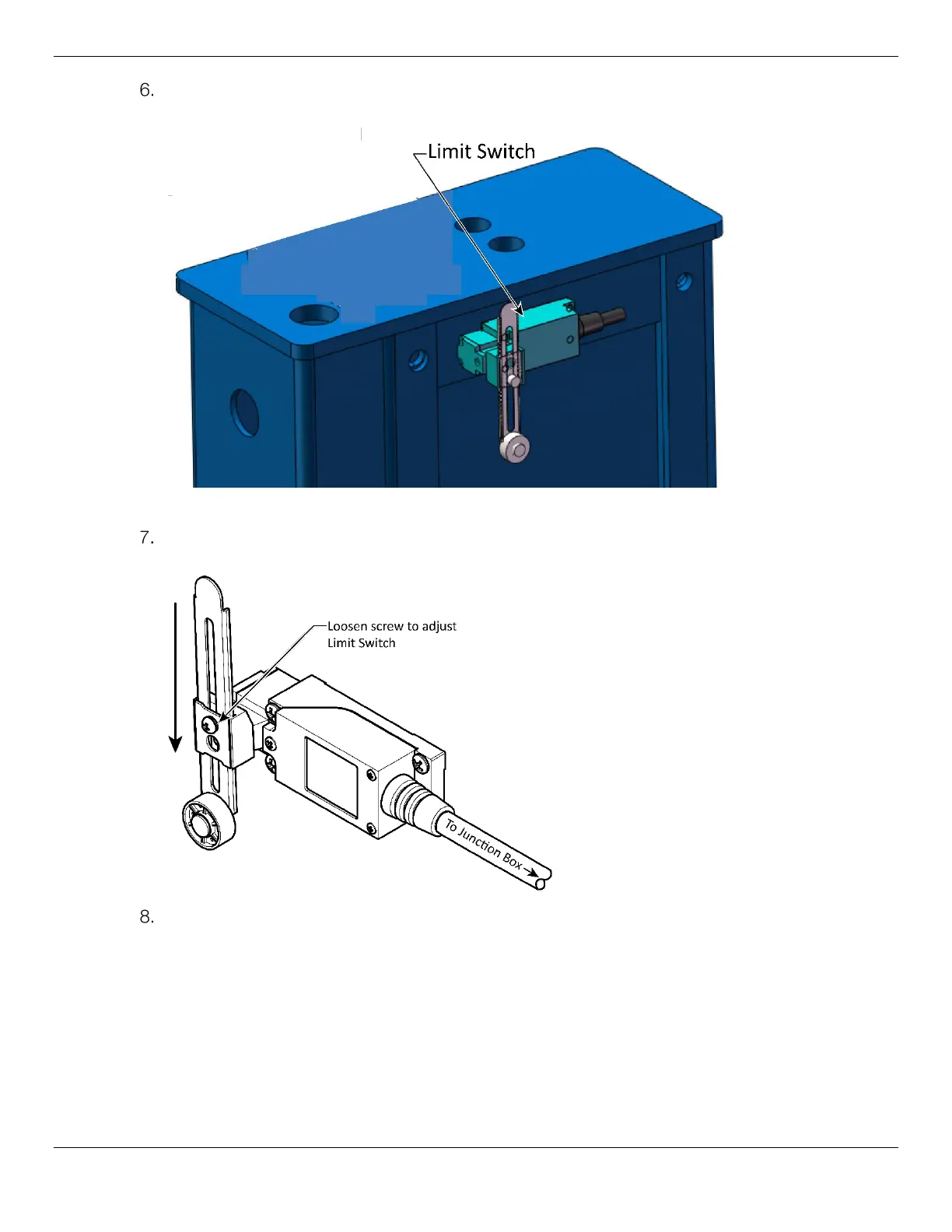

Mount the Limit Switch to the top of the Powerside Post using two M4 x 20 and two M4 x 40
machine screws. See figure below and page 54.
Drawing not to scale.
Loosen the Phillips screw and extend the Limit Switch arm to its maximum distance toward the Lift
Platform. Refer to the figure below.
Feed the Hydraulic Hose through the inside of the Powerside Post from top to bottom. Use tape or
wire to temporarily hold the Hose in place while standing-up the Posts. See figures below.
⚠ WARNING Do not damage Hydraulic Hoses by bending into a tight radius. (Hydraulic Hose
bending radius is to be more than 9 times the outer diameter of Hose.)
