PL-6000DC/DCX Two-Post Parking Lift 28 P/N 5900273 — Rev. A6 —July 2024
⚠ WARNING The components are heavy and their weight is not evenly distributed. Use proper
tools, Forklift or Shop Crane, and assistants to move the posts into position.

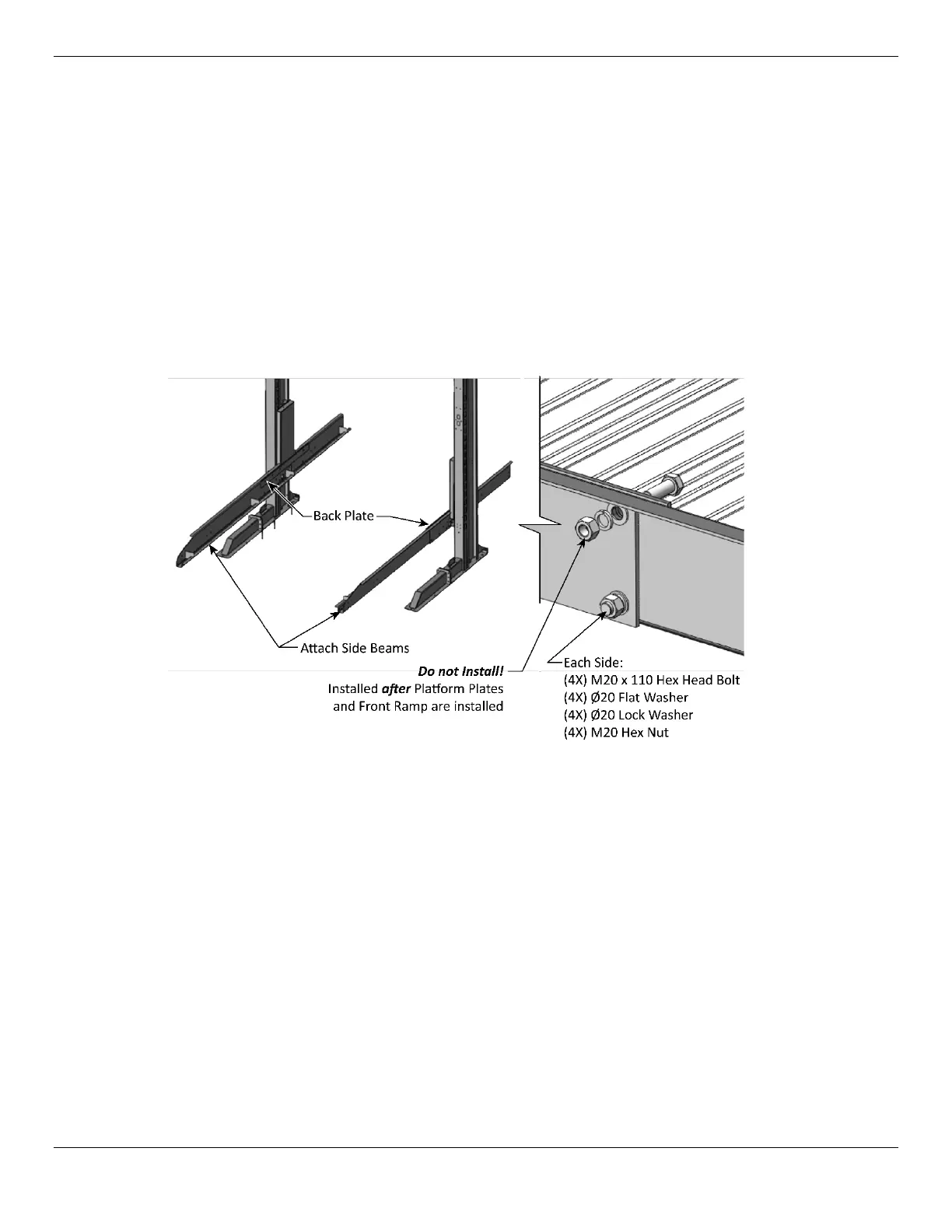

To attach the Side Beams, Back Plate, and Connection Rods:
1. Attach the Left Side Beam onto the Powerside Post Lift Carriage. Use four sets of M20 x 110 Hex
Head Bolts, Ø20 mm Flat Washer, Ø20 mm Lock Washer and M20 Hex Nut. Verify the Hex Bolt
heads, and Flat Washers are on the inside of the Lift and the Nuts, Lock Washers on the outside of
the Beam facing out from the Lift. Refer to the figure on the next page.
2. Attach the Right-Side Beam onto the Offside Post Lift Carriage. Use the same Fasteners as
referenced in step 1 above. Verify the Hex Bolt heads, and Flat Washers are on the inside of the
Lift and the Nuts, Lock Washers on the outside of the Beam facing out from the Lift. Do not
install the Four M20 x 55 Hex Head bolts at this time. Refer to the figure on the next
page.
3. Stand-up the Offside Post and move it to the chalk lines previously created. Do not drill
holes for the Anchors.
Note: If multiple units are being installed, this Offside Post will be shared and act as the Primary post
for the next Lift
4. Install the Back Plate with the Groove facing the Approach Side of the Lift. Attach with two
M14 x 40 mm Hex Head Bolt, Ø14 Flat Washer, Ø14 Lock Washer and M14 Hex Nut each side.
Make all fasteners finger tight, do not tighten. Refer to the figure below.
