PL-6000DC/DCX Two-Post Parking Lift 43 P/N 5900273 — Rev. A6 —July 2024
Install the Safety Lock Release Angle
The Safety Lock Release Handle is mounted to the Control Arm. The Safety Locks are released by the
Safety Lock Release Handle linked by Wire Rope to a Safety Release Angle mechanism on the
Powerside Post.
To Install the Safety Lock Release Angle:

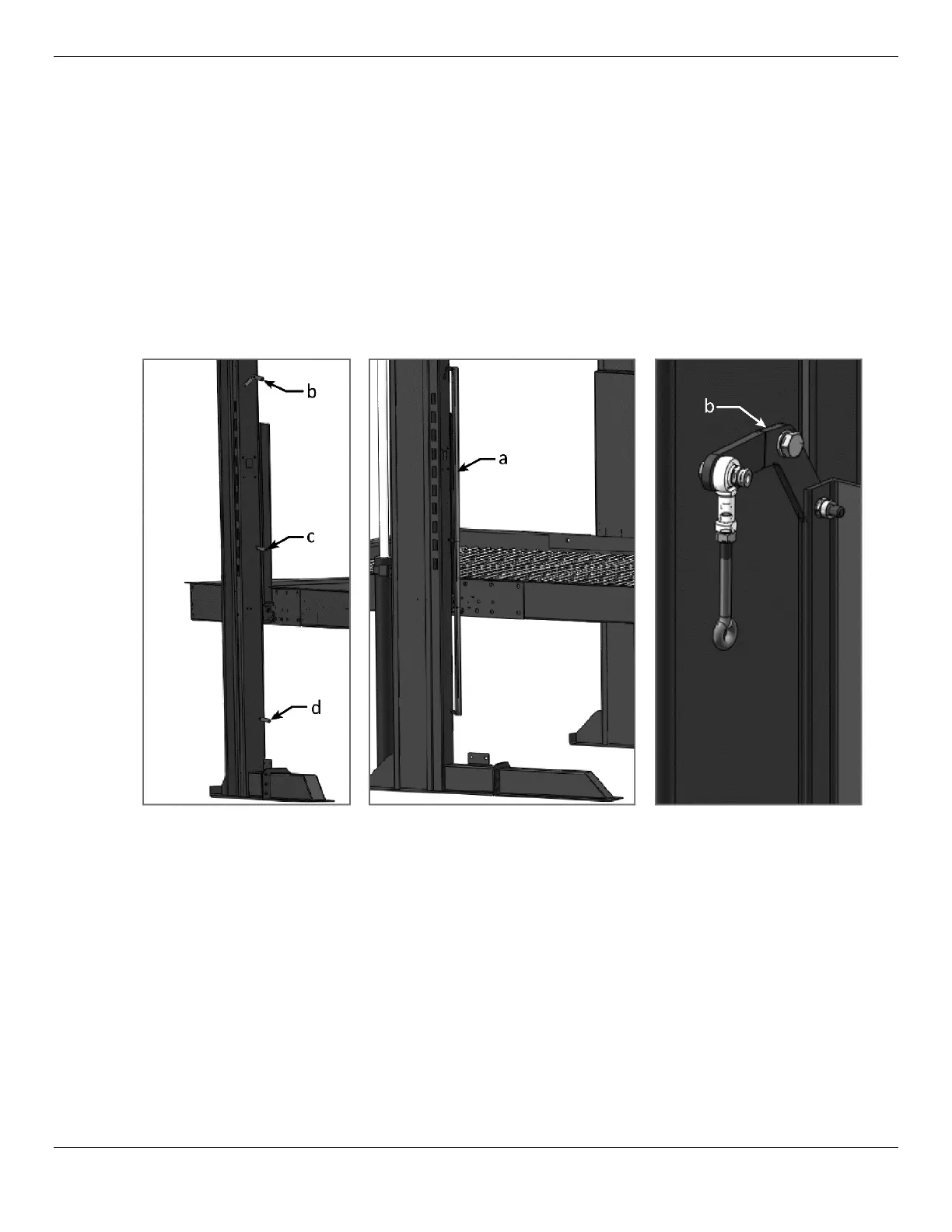

Install the Safety Release Angle (a) on the front side of the Powerside Post. The release angle functions
a part of the Safety Lock Release mechanism. It is supported by a Rocker Arm (b) and two smaller
Straight Arms (c and d). Secure using M6 x 25 Hex Head Bolt and M6 Locknuts. Attach the Rocker
Arm using M6 x 35 Hex Head Bolts and Locknuts. Verify the mechanism moves freely after securing
the fasteners. Review the figures and details below.
Drawing not to scale.
