PL-6000DC/DCX Two-Post Parking Lift 44 P/N 5900273 — Rev. A6 —July 2024

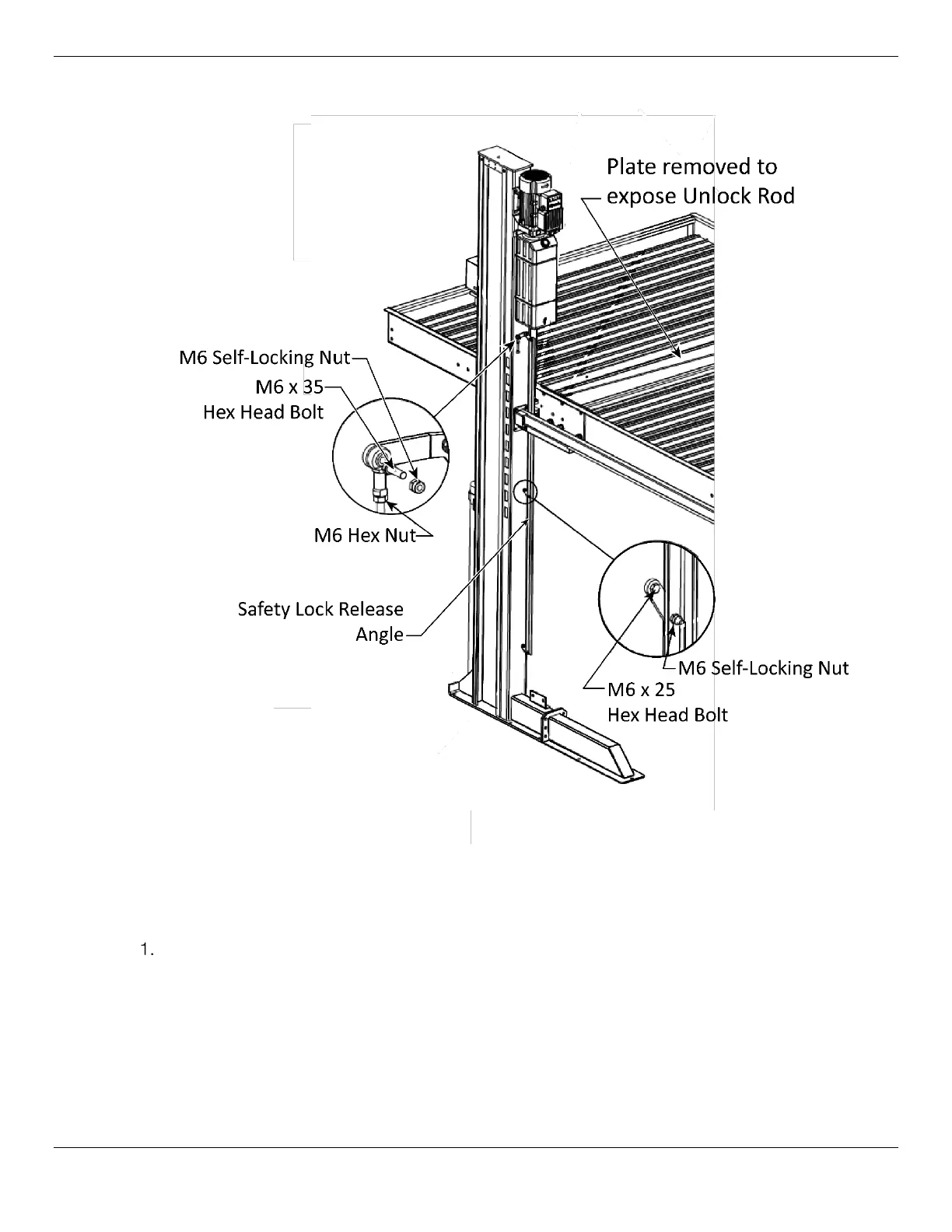

Safety Lock Angle Parts Detail
Drawing not to scale
Installing the Control Arm
Route the wiring from the Control Panel box through the Control Arm.
Mount the Control Panel box on the front of the Control Arm. Attach the Control Panel and Box
onto the Control Arm using (4) four M4 x 20 Phillips Machine Screws and (4) four M4 Hex Nuts.
