2 DESCRIPTION OF THE APPLIANCE

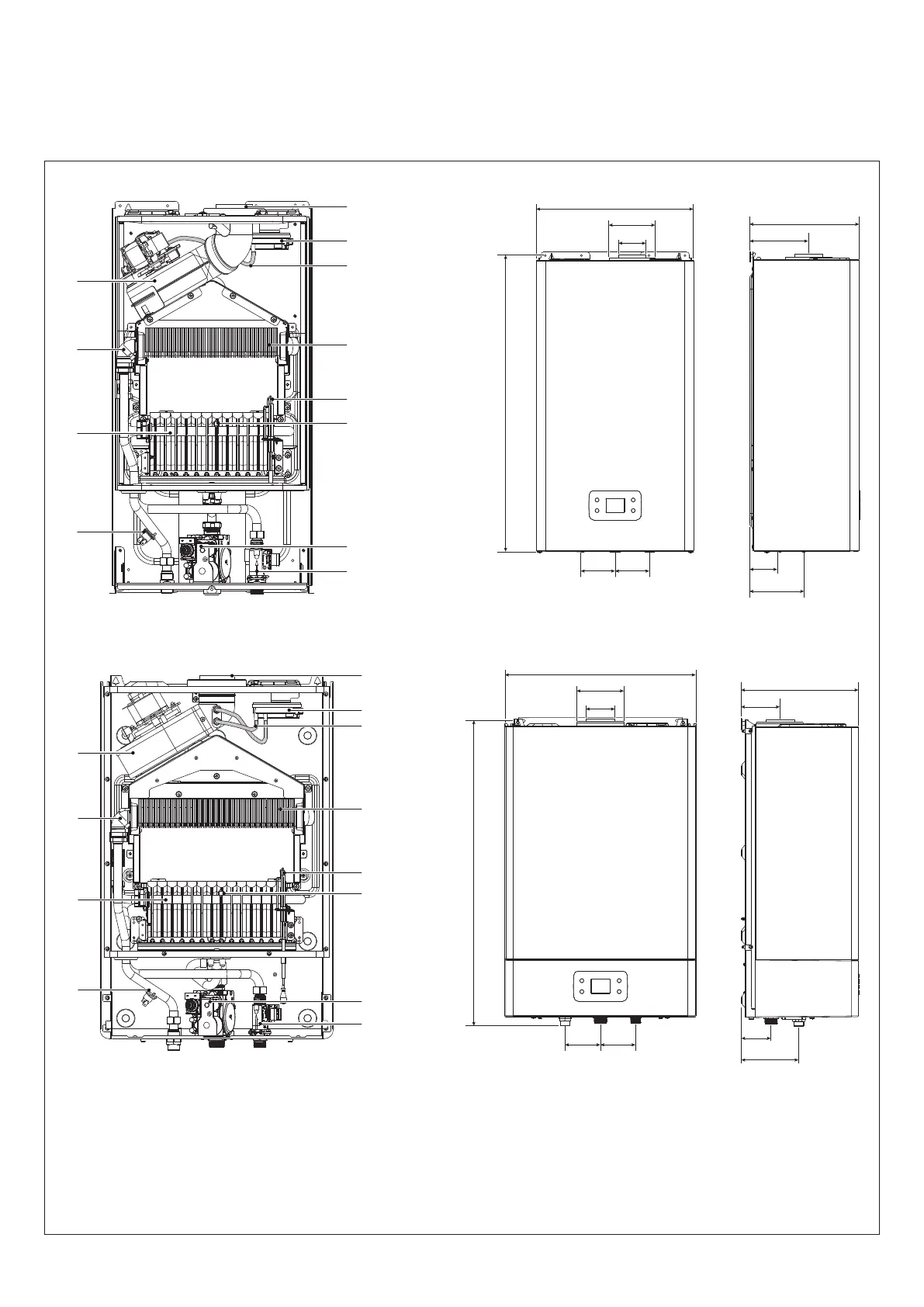

2.1 Functional elements of the appliance / Max. dimensions and connections
2.1.1 Models for indoor installation
Models 11-13
127
237
60
118
340
ø60
74 74
ø100
642
4
5
6
7
8
9
11
10
12
3
2
1
Models 17
4
3
2
1
5
6
7
8
9
11
10
12
81
240
62
120
400
ø60
74 74
ø100
640
1 Maximum temperature thermostat
2 Burner
3 NTC probe
4 Fan
5 Exhaustueduct
6 Air pressure switch
7 Pressure/depression
8 Exchanger
9 Ignition/detection electrode
10 Burner thermostat
11 Gas valve
12 Waterowswitch
Fig. 1

Beretta IDRABALCONY Lx 11 Specifications

General

Brand	Beretta
Model	IDRABALCONY Lx 11
Category	Boiler
Language	English
