4 PUTTING INTO SERVICE
7
4.1 Controls interface
A
B
C
D
A ON - OFF/RESET key
B MENU - CONFIRM key
C + key
D - key

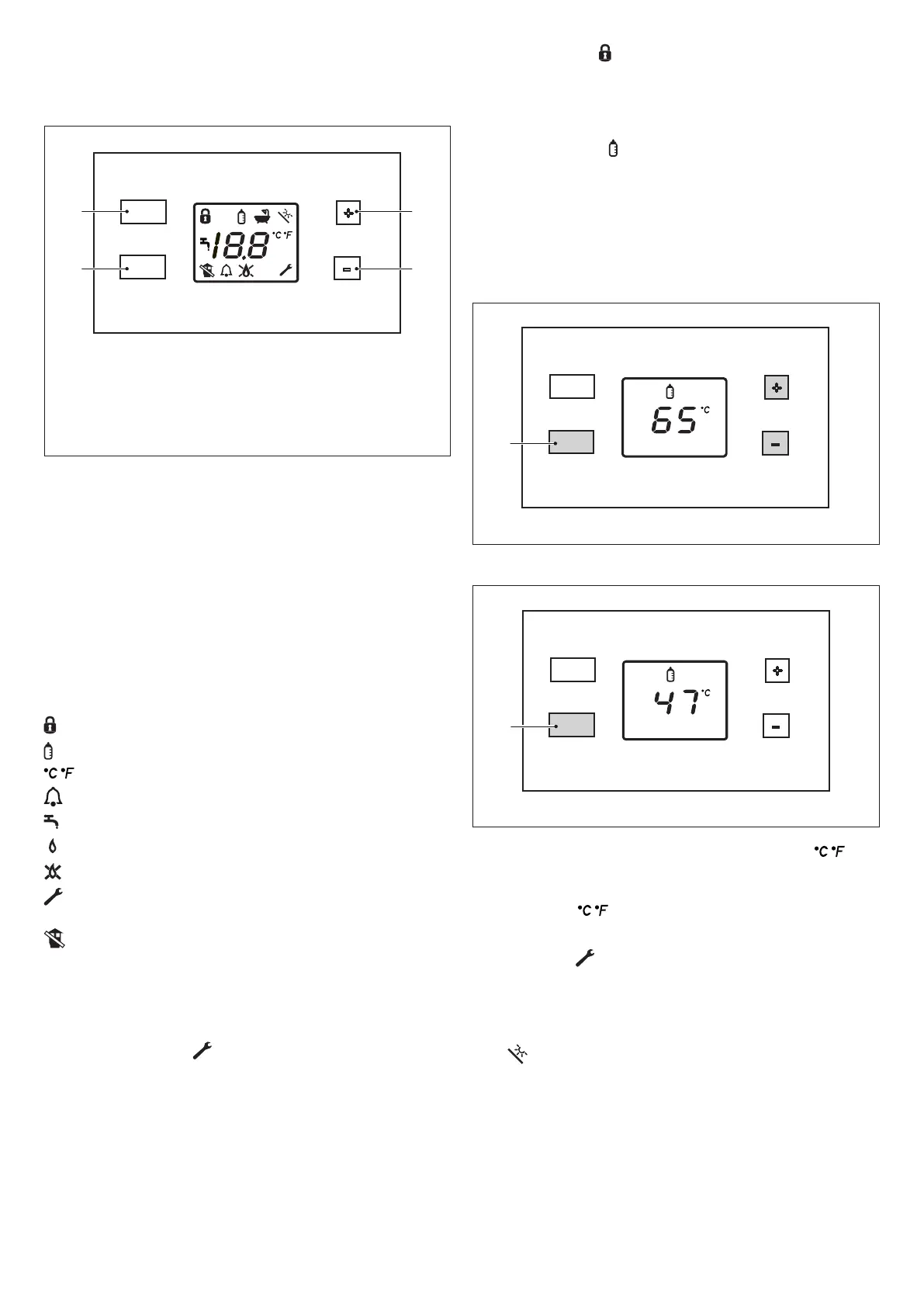

Fig. 24
ON - OFF/RESET key
Allows the appliance to switch on and off. It also allows it to be reset in
the event of a fault.
MENU
Allows the selections to be conrmed, to enter the user menu and, if
pressed for more than two seconds, to access the technical menu (in this
caseyouwillbeaskedtoenterthepassword).
+ and - keys
They allow you to navigate the various functions that are available, to
change the value of a parameter and to change the temperature that has
been set for the domestic hot water.
4.2 Description of icons
 Temperatureadjustmentlockout
Bottle feeder function
Function for choosing temperature unit of measurement
General alarm
Domestic hot water pick-up
Flame presence
Flame lockout
 Maintenanceneeded(ortechnicalintervention)orelseentryin
the technical menu
Flue gases fault
4.3 Selecting functions
Using the "+" e "-" keys it is possible to scroll through the available func-
tions on the display. The icon regarding the selection made blinks togeth-
er with the central segments.
In the case of the wrench (
)thecentralsegmentsdonotappear.
PressingtheMENU(B)keyyoupasstovaluesettingmode.Either“on”
or “oF” is displayed depending on the function that is currently active or
inactive. To change the status of the function:
- press the "+" and "-" keys
- presstheMENU(B)keytoconrmandreturntotheselectionofthe
functions.
b
Keeping either the "+" or "-" key pressed, the fast scrolling mode
is activated.
Button lock function
Allows the keyboard to be locked out. It is activated or deactivated
through a combination of the keys ("+" and "-" keys pressed together for
5seconds).
Whenthemodeisactive(lockout)itisnotpossibletousethekeyboard.
Feeder bottle function
Selecting this function makes it possible to set the maximum temperature
atwhichthewaterisdelivered(maximum65°C;minimum36°C).
If the function is not active,“oF appears on the display”. If the function
is active, the "bottle feeder" temperature that was previously set is dis
-
played.
The maximum value that can be set is established in parameter 1
1 (see
tableofparameters).
TochangethesetvaluepresstheMENU(B)keyandwiththe"+"or"-"
key select the desired value.
B
Fig. 25
ThenconrmtheselectionbypressingMENU(B)again.
B
Fig. 26
Function for choosing temperature unit of measurement
There are two possible units of measurement: Degrees Celsius and Fahr-
enheit.
The display shows the current unit of measurement.
To change the value
enter the function (
)andusethe"+"and"-"keys.
ThenconrmtheselectionbypressingMENU(B)key.
Wrench function
When the wrench function is selected, the central segments of the display
switchoff.PressingMENU(B)for2secondsyoupasstothepassword
entry mode (only for professionally qualied personnel) to access the
technical menu (see section "Parametersmenu").
Solar
The function is only active if the installation is set up to operate with a
solar system.
