5
ITALIANO

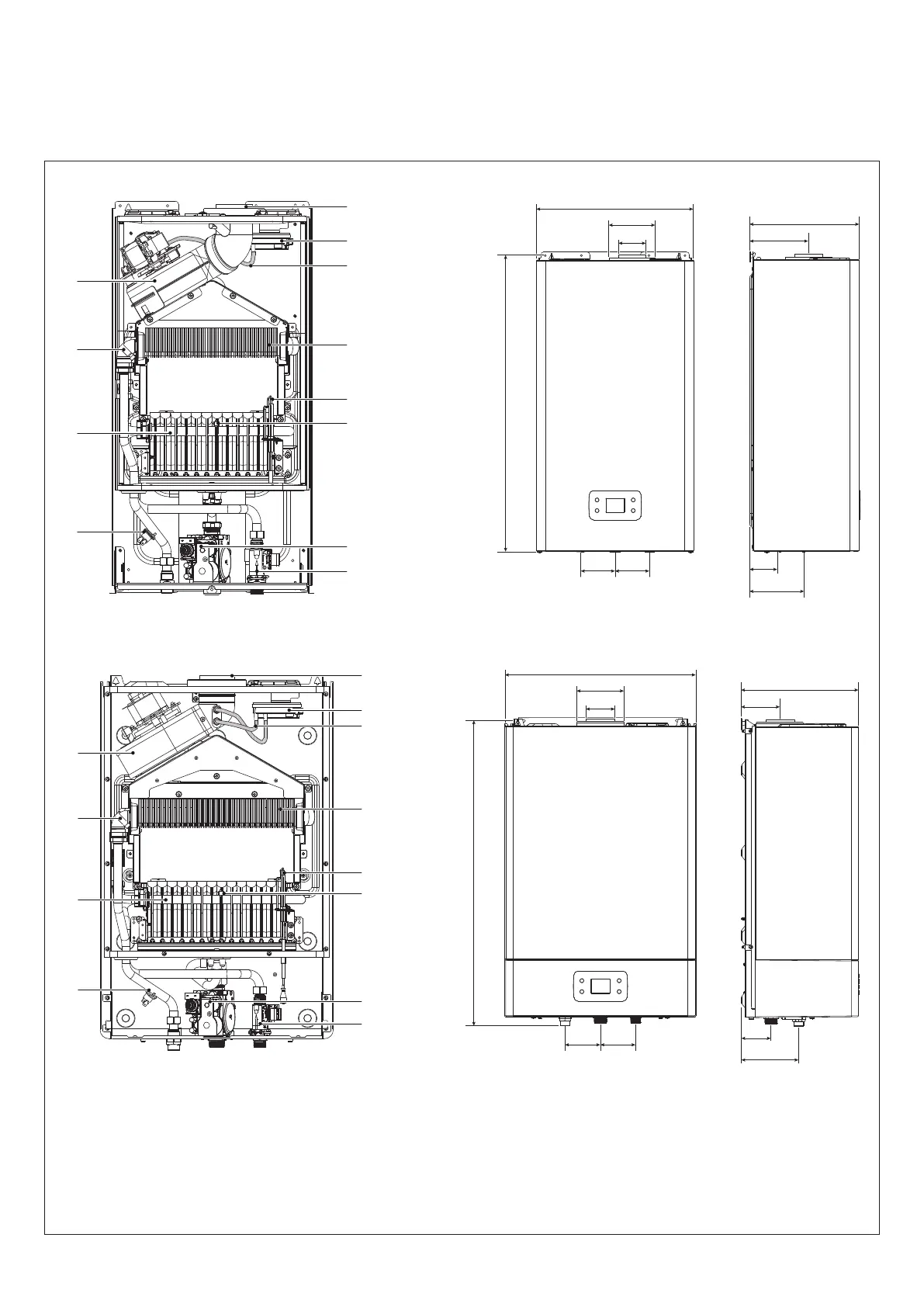

2 DESCRIZIONE DELL’APPARECCHIO
2.1 Elementi funzionali dell’apparecchio / Dimensioni d'ingombro ed attacchi
2.1.1 Modelli per installazione interna
Modelli 11-13
127
237
60
118
340
ø60
74 74
ø100
642
4
5
6
7
8
9
11
10
12
3
2
1
Modelli 17
4
3
2
1
5
6
7
8
9
11
10
12
81
240
62
120
400
ø60
74 74
ø100
640
1
Termostato limite
2
Bruciatore
3
Sonda NTC
4
Ventilatore
5
Scarico fumi
6
Pressostato aria
7
Pressione/depressione
8
Scambiatore
9
Elettrodo accensione/rilevazione
10
Termostato bruciatore
11
Valvolagas
12
Flussostato acqua
Fig. 1
