BestCode NExT 88SHS - Printhead

BestCode Next Series 8 Technical Manual October 2022 Page 4 of 290
Printhead

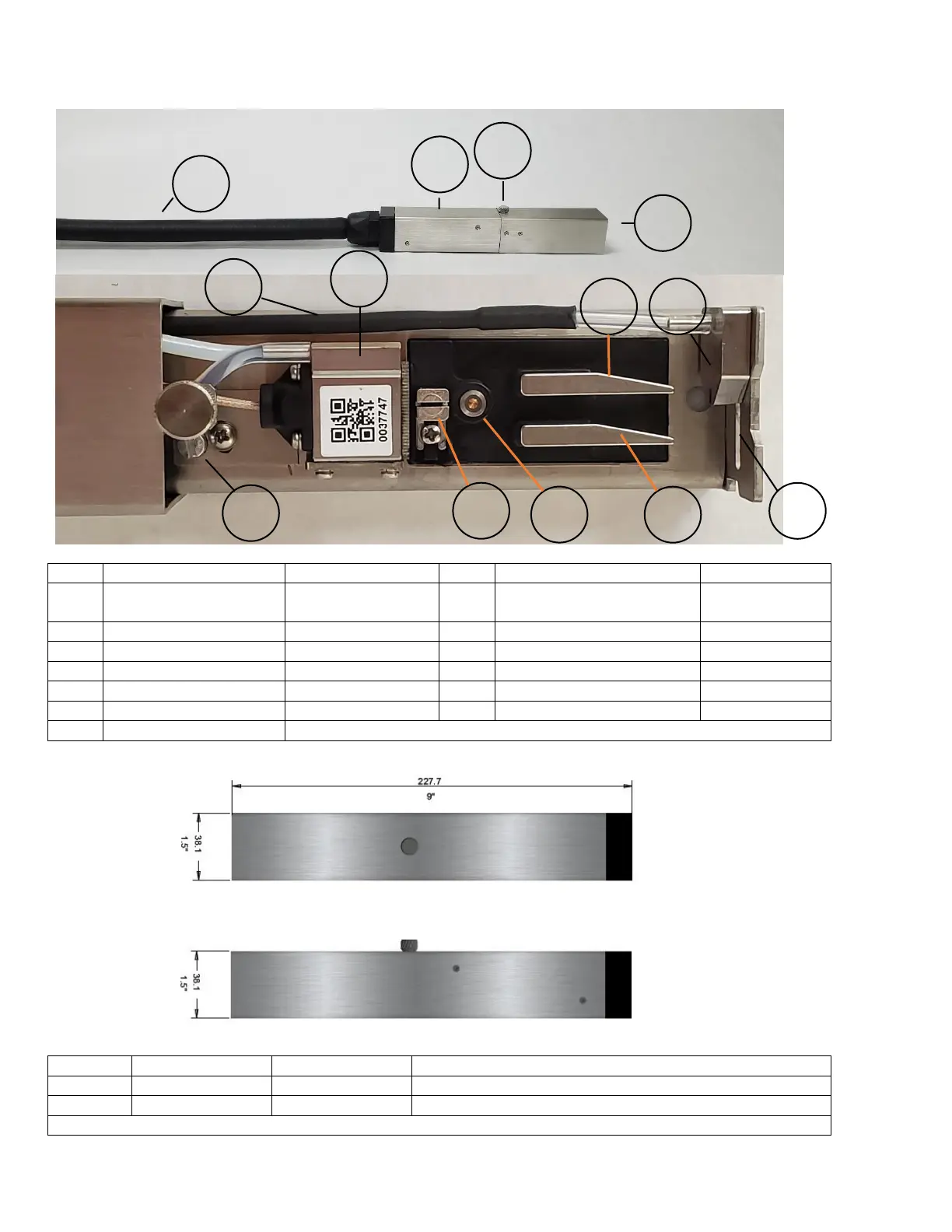

The Next Series 8 CIJ Printhead may vary slightly from what is shown, but the components will be the same.
Item
Description
Part Number
Item
Description
Part Number
1
Umbilical
*
8
Charger, Series 8 PH
22-0012-04
2
Back Printhead Cover
22-0038-04
9
Phase Detector
*
3
Printhead Thumb Screw
28-0047-01
10
Negative High Voltage Plate
*
4
Printhead Front Cover
22-0039-04
11
Positive High Voltage Plate
*
5
Gutter Detect
22-0083-01
12
Gutter, Series 8
22-0010-13
6
Cam, Series 8 PH
22-0003-05
13
Print slot
*
7
Drop Generator
Varies by model, see pricelist
*This part is non-replaceable
Length:
9” (227.7mm)
Height:
1.5” (38.1mm)
Width:
1.5” (38.1mm)
Umbilical Length:
9’ 10” (3m)
Available in 15ft (4.5m)
Micro printhead is same length as shown above.
