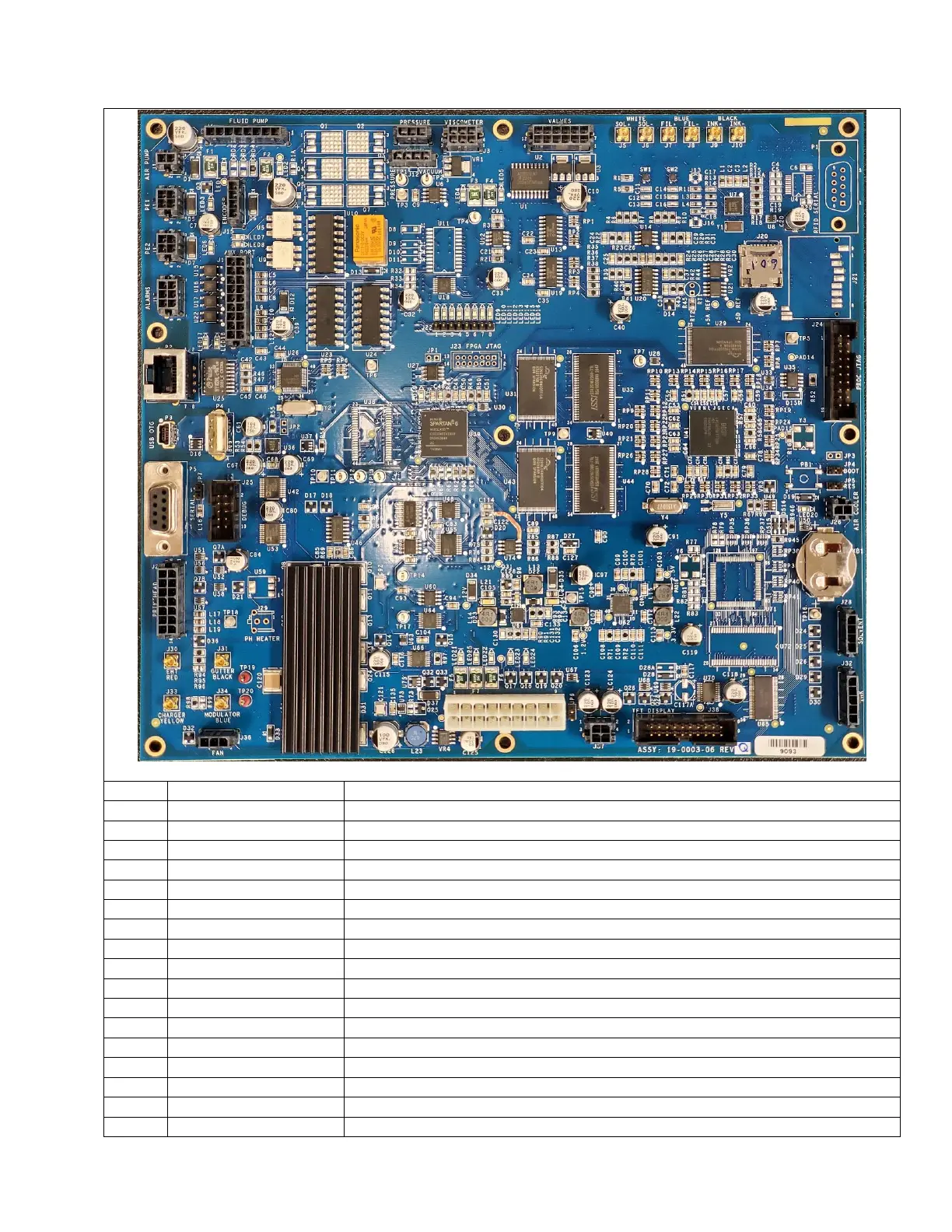

Diagnosing Main Circuit Board Issues
Connections
#
Connector Name
Function
J1
Fluid Pump
Controls output voltage to pump
J2
Pressure
Provides voltage and collects from Pressure Sensor.
J3
Viscometer
Controls viscometer valve state and recieves signal from viscometer inductive sensor.
J4
Valves
Controls 5 valves located on Main Ink Manifold.
J5
Sol +
Connectors to Makeup Fill cup SmartFill reader. RFID Tag scanner
J6
Sol -
Connectors to Makeup Fill cup SmartFill reader. RFID Tag scanner
J7
Fil +
Connectors to SmartFilter reader. RFID Tag scanner
J8
Fil -
Connectors to SmartFilter reader. RFID Tag scanner
J9
Ink +
Connectors to Ink Fill cup SmartFill reader. RFID Tag scanner
J10
Ink -
Connectors to Ink Fill cup SmartFill reader. RFID Tag scanner
J11
Air Pump
Used for Positive Air accessory.
J12
Vacuum
Unused
J13
J14
PE1
Provides voltage and recieves photocell sensor signal
J15
Encoder
Provides voltage and recieves encoder signal
J16
J17
PE2
Provides voltage and recieves photocell sensor signal
