BestCode NExT 88SHS - Printhead Umbilical Replacement

BestCode Next Series 8 Technical Manual October 2022 Page 150 of 290
Printhead Umbilical Replacement
Be familiar with proper safety information for handling fluids.
Procedure Time: 2 minutes

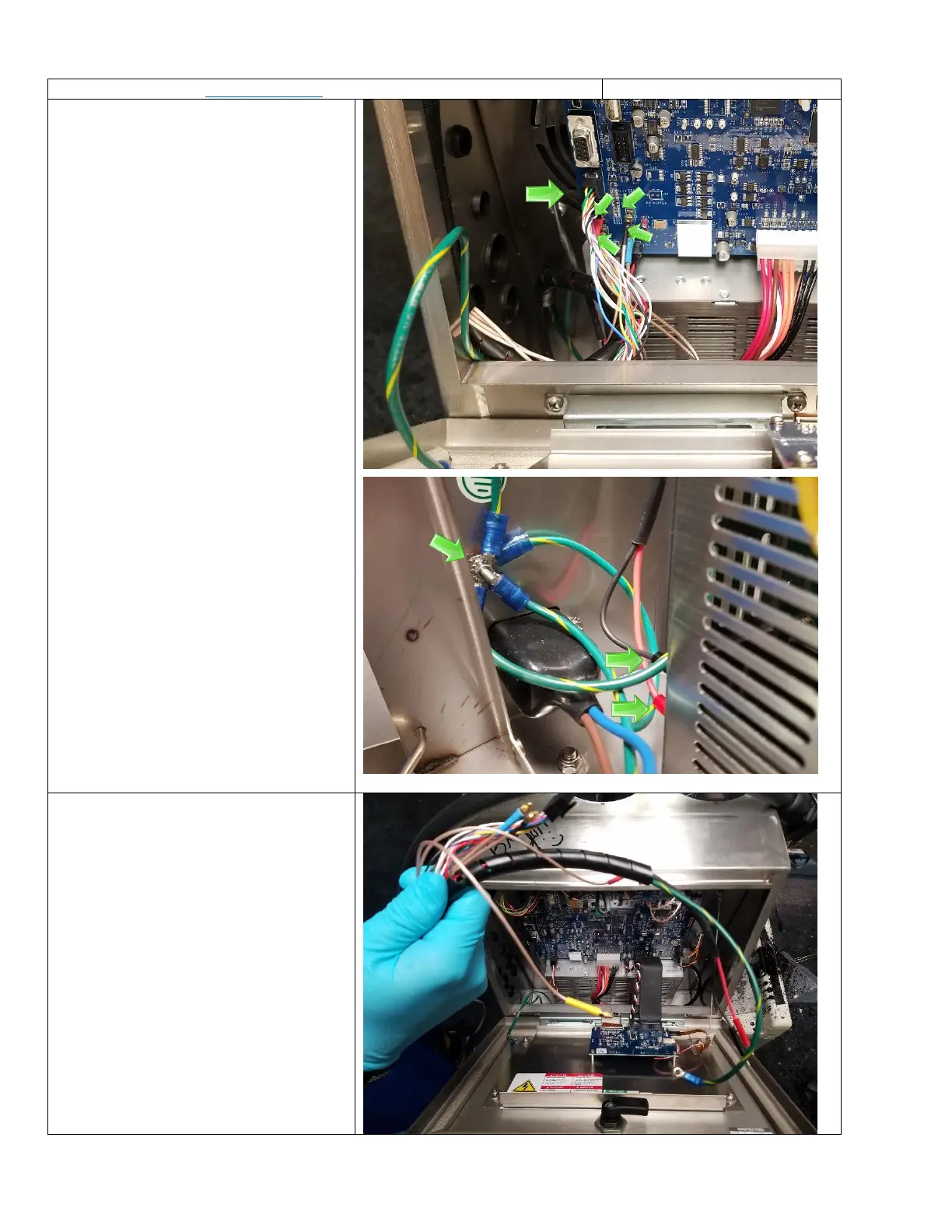

1. Locate and remove all of the Printhead
cables from the Main CPU Board, the
Power Supply, and from the Case
ground stud.
2. Pull the printhead harness forward to
ensure all of the cables are disconnected
from the Main CPU Board.
