BestCode NExT 88SHS - Appendix C - System, Stands, Brackets, and Peripheral Diagrams

BestCode Next Series 8 Technical Manual October 2022 Page 249 of 290
Appendix C – System, Stands, Brackets, and Peripheral Diagrams

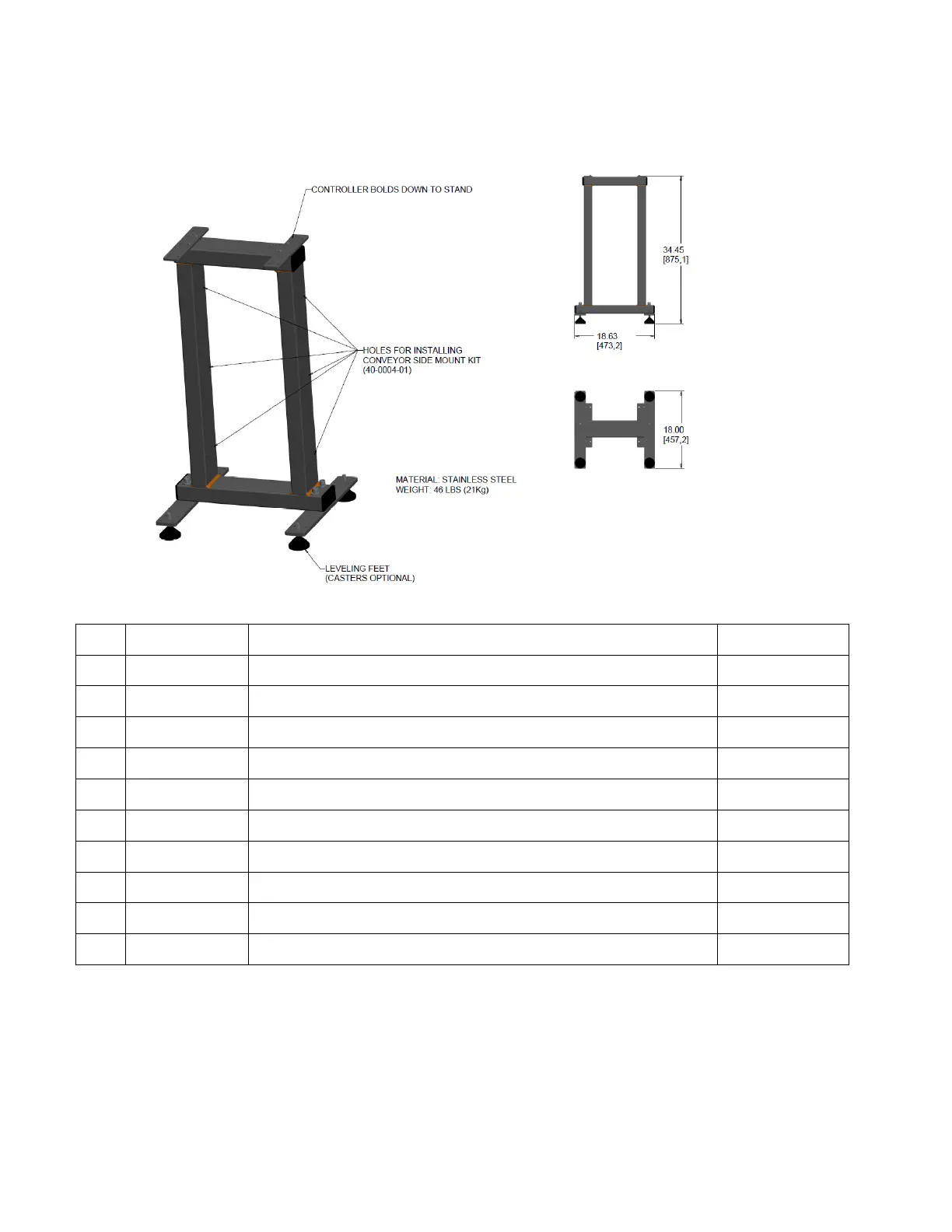

Controller Stand – 40-0019-01
Item
Part Number
Description
Quantity Needed
1
22-0072-07
Stand Base, Modular Leg
2
2
22-0091-02
Stand, Frame Weldment SS
1
3
22-0092-04
Cabinet Foot Plate, Stand
2
4
28-0007-01
Bolt, M12x70 Controller Stand
4
5
28-0020-01
Nut, M12, Controller Stand
4
6
28-0116-01
Screw, M6x1x20 Hex SS 18-8
4
7
28-0137-02
Feet, Controller Stand
4
8
28-0138-01
Screw, M6x1x30 SS
4
9
28-0149-01
Nut, M6 Locking
8
10
28-0167-01
Cap, Insert/Glide, Stand
4
Ships flat packaged
Assembly Time: 10 minutes
