Appendix E – Print Applications / Setup

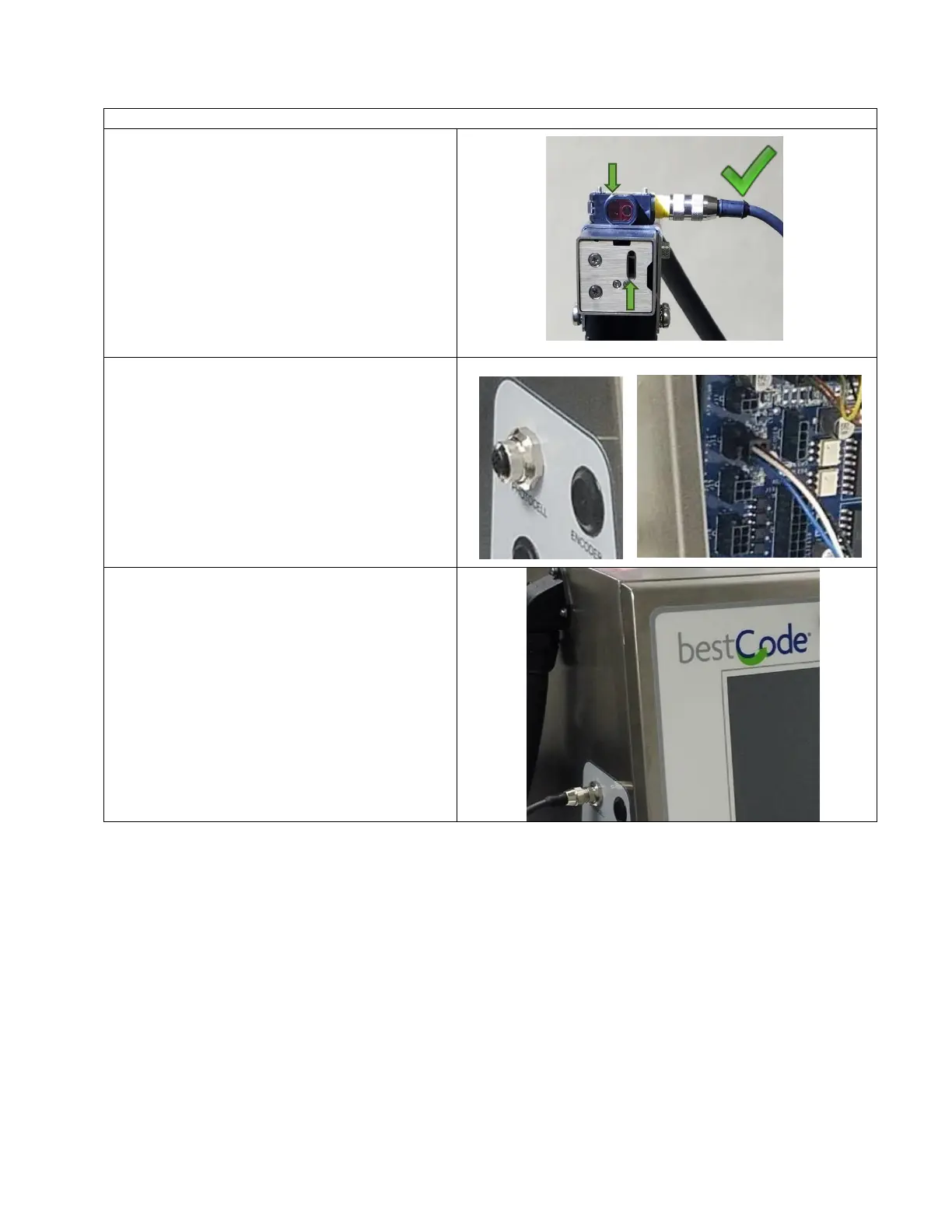

Photocell Installation
Setup Time: 10 minutes
1. Align the sensor as close to the print slot as
possible
The following sensors are offered.
44-1001-01 Photocell, Laser Kit
44-1002-01 Photocell, Proximity Kit
44-1003-01 Photocell, Fiber Optic Kit
44-1004-01 Photocell, Retroreflective Kit
44-1005-01 Photocell, Inductive Kit
44-5008-01 Photocell, Print Registration
2. Install the Photocell Cable.
3. Plug the Photocell cable into J14 on the board.
4. Lock the Electronic Compartment door
5. Install the M12 Cable on the Photocell Cable.
