BestCode Next Series 8 Technical Manual October 2022 Page 260 of 290

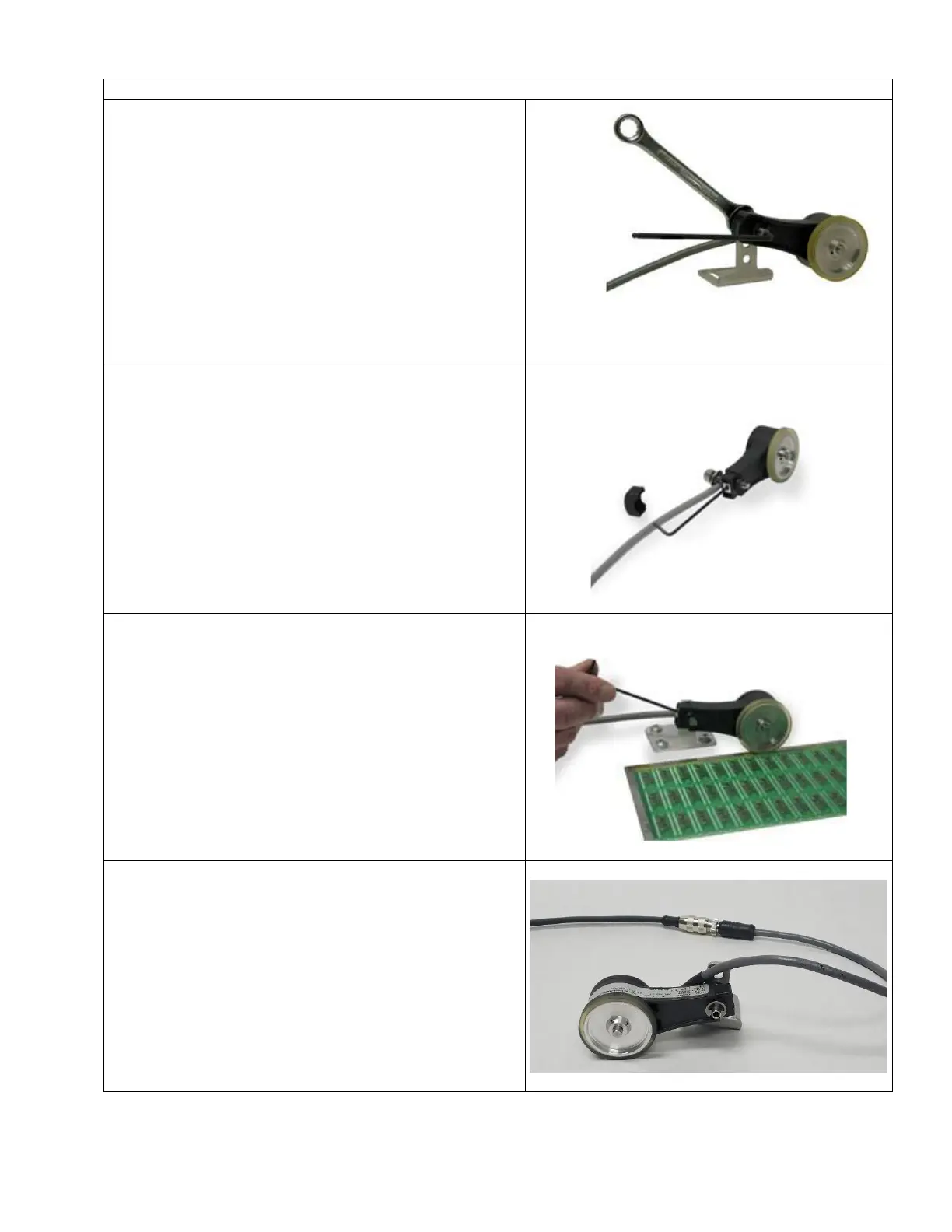

Encoder Installation
Setup Time – 15 minutes
1. Secure the Encoder to the Bracket
The following encoder items are offered.
44-1050-01 Encoder, Shaft Kit
44-0052-01 Coupler, Shaft Light Duty 1/4" - 1/4"
44-0053-01 Coupler, Shaft Light Duty 1/4" - 3/8"
44-0054-01 Coupler, Shaft Heavy Duty 1/4" - 3/8"
44-0055-01 Coupler, Shaft Heavy Duty 1/4" - 1/4"
2. Remove the rubber plug from the encoder
3. Mount the encoder as desired
4. Tension the encoder using the set screw under the rubber
plug.
5. Connect the M12 cable to the encoder.
