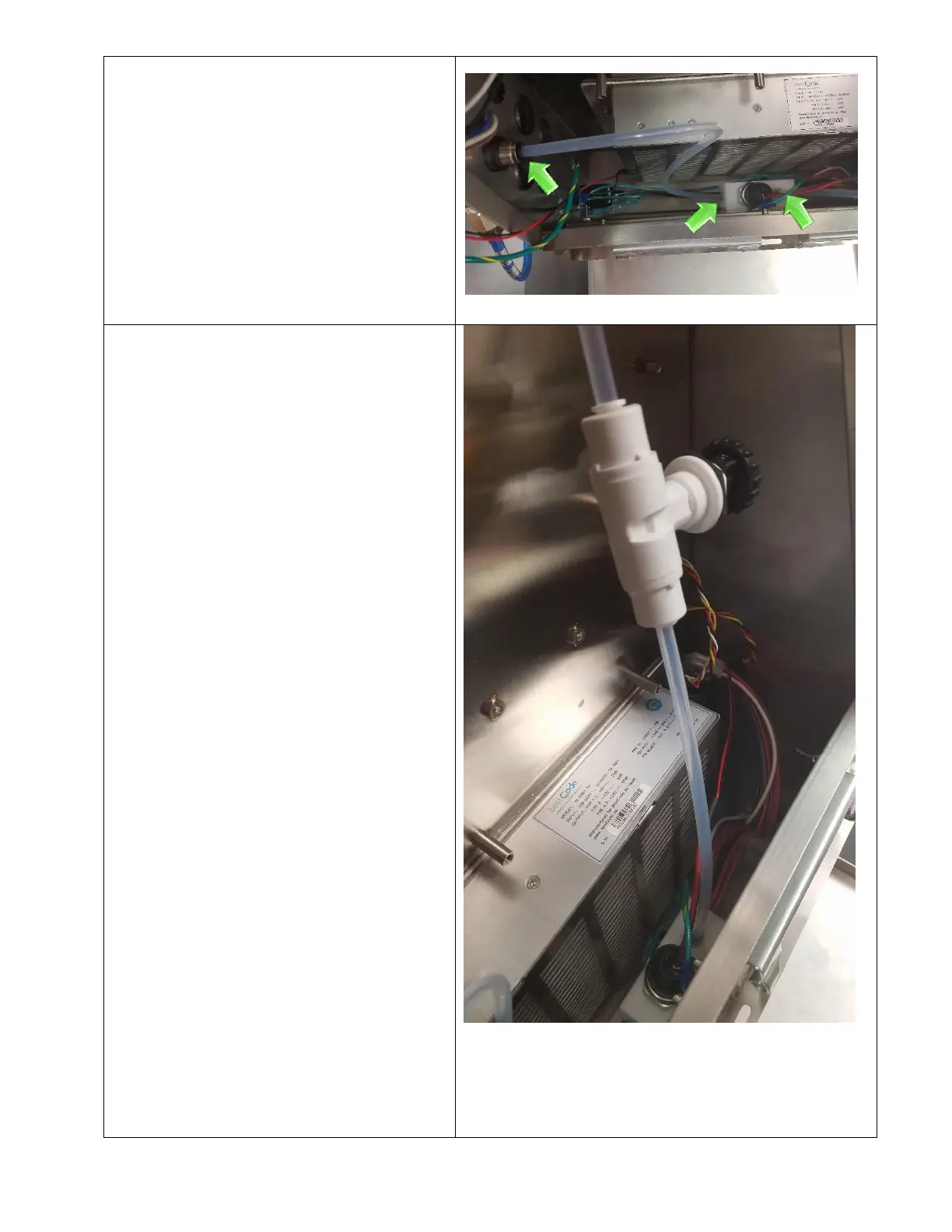

10. Connect the long tube from the 90° air fitting
to the Air Distribution manifold on the back of
the Air Dryer filter blank.
11. Connect the middle length tube to the
printhead air supply fitting.
12. Connect the Printhead flow valve and install
the short length of tubing to the valve outlet.
13. Set the valve to ¼ turn open (90° only).
EXCESS AIR FLOW WILL INTERUPT JET AND
CAUSE POOR PRINT
