Big Backyard F23475 - STEP 2 Access Ladder Assembly

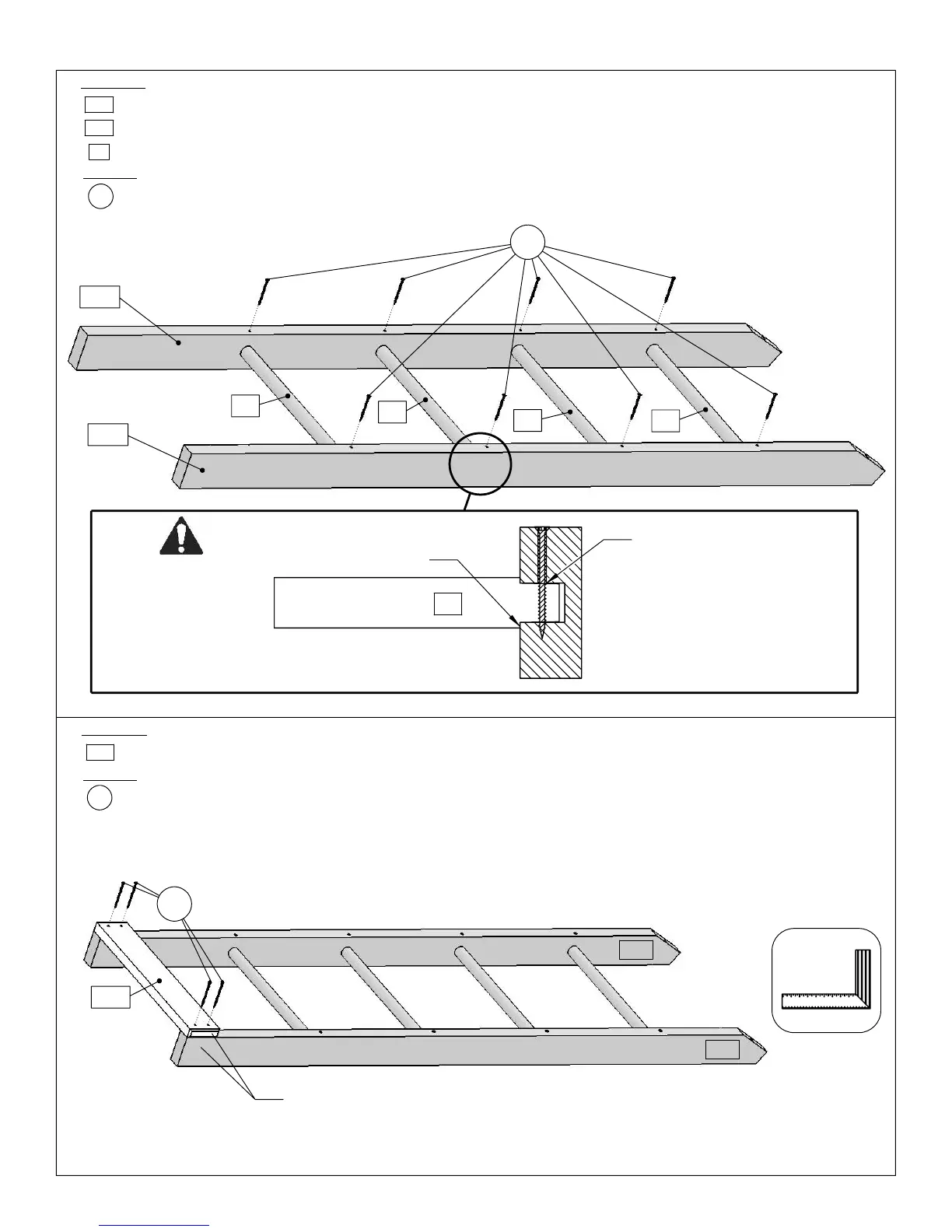

STEP 2 Access Ladder Assembly
Drill 1/8" pilot holes
through Dowels to
prevent splitting wood
Make sure shoulder is
against rails before drilling
A3
S3 Wood Screw #8 x 2½"
Tennon Dowel 1ǩ x 18ǫ"
Wood Parts
Before Fastening
using 4
Ladder Bottom 5/4 x 4 x 20"
Hardware
1X
Wood Parts
#8 x 2½” wood screws.
Wood Screw #8 x 2½"
Ladder Bottom to the access rails
B12
S3
B11
(S3)
C
Square Assembly
1X Left Access 2 x 4 x 69"
1X Right Access 2 x 4 x 69"
: Attach
4X
E12
(E12)
A3
8X
4X
Hardware
A
: Insert
(A3)
Tenon Dowel into both
(B11)
Left Access and
(B12)
Right
Access making sure the shoulder is snug against the rails. Pre-drill with
1/8” drill bit through
(B11)
Left Access and
(B12)
Right Access and into
each dowel.
B
: Use 2
(S3)
#8 x 2½” wood screws per dowel to attach dowels to rails.
S3
B12
B11
A3
A3
A3
A3
WARNING!
B12
B11
S3
E12
Note:
(E12)
Ladder Bottom must
be flush with
(B11)
on this side
18
