Big Backyard F23475 - STEP 34 Attach Picnic Canopy and Telescope

STEP 34 Attach Picnic Canopy and Telescope
Pan Screw #6 x 1"
Upper SL using 2
Swing and Access Ladder removed for clarity.
2X Wood Screw #8 x 1½"
Pan Screw #6 x 1/2"
Parts
#8 x 1½" wood screws.
1X Pinic Canopy Frame
S2
Hardware
4X
12X
1X Telescope
(S2)
A:

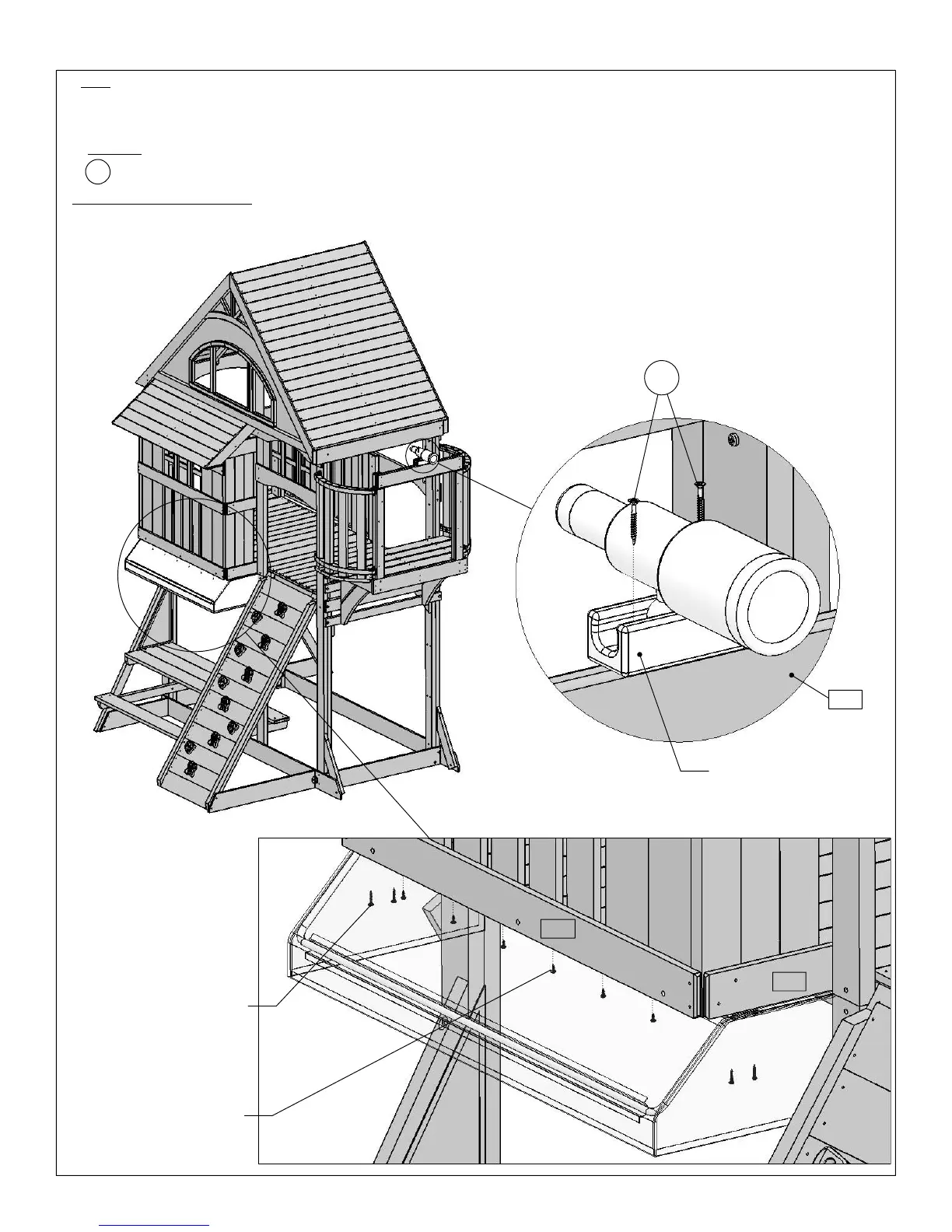

Feed Picnic Canopy Frame through the channel in the Picnic Canopy.
B:
Attach Picnic Canopy Frame to
(B29)
Porch Side, above the Picnic Table
using 4 #6 x 1” pan screws.
C:
Attach Picnic Canopy to the
(B29)
Porch Side and
(D11)
Porch Floor using
12 #6 x 1/2” pan screws.
D
: Attach Telescope to
(E23)
1X Pinic Canopy
Hardware included with Tarp Set
B29
Picnic Canopy
Use 12 #6 x 1/2"
Pan Screws
Use 4 #6 x 1"
Picnic Canopy Frame
Pan Screws
D11
Telescope
S2
E23
