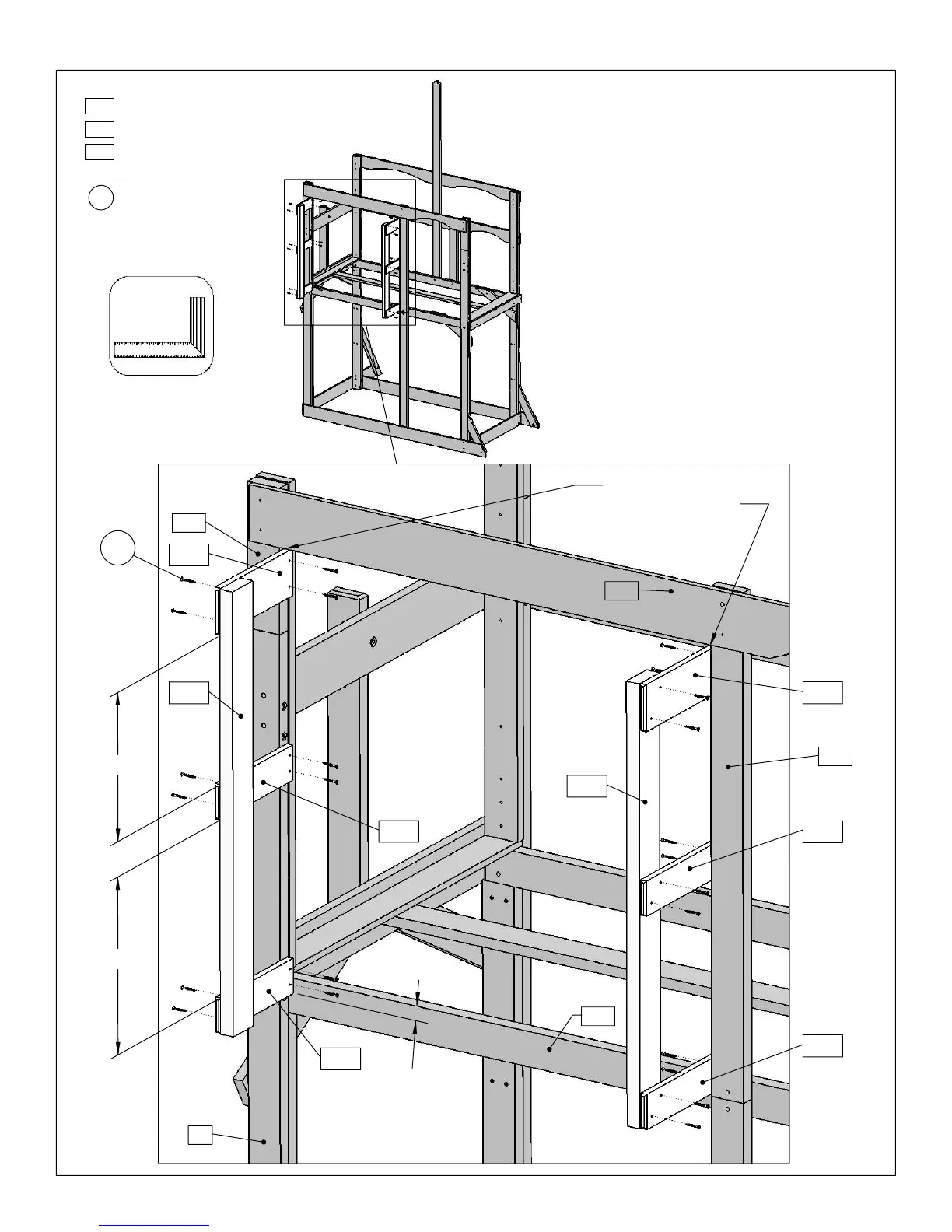

Big Backyard F23475 - STEP 12 Attach Porch Frame

B29
B28
B28
S2
B19
C4
B16
B24
B29
B30
B29
B30
B29
E29
14¼"
17"
1¾"
1" space between
(B30)
and
(E29)
X24
Porch Side 1 x 4 x 12¼"
(B28)
B30
Porch Post 2 x 4 x 42½"
S2
2X
2X
Hardware
B29
Wood Screw #8 x 1½"24X
Wood Parts
B28
4X
attaching
Top Porch Side 1 x 5 x 12¼"
Note: Make sure
(B30)
and
(B29)
are level prior to
Square
Assembly
A
: Measure 1" down from
(E29)
and Attach 1
(B30)
Top Porch Side to
(B16)
Roof Block and
1 to
(B24)
Upper Front Post using 2
(S2)
#8 x
1½” wood screws per board.
B
: Measure 14¼” down from bottom of
(B30)
and attach 1
(B29)
Porch Side to each of the
(C4)
Post and
(B24)
Upper Front Post using 2
(S2)
#8 x 1½” wood screws per board as
shown below.
C
: Measure 17” down from bottom of
(B29)
and attach another
(B29)
Porch Side to each
of the
(C4)
Post and
(B24)
Upper Front Post
using 2
(S2)
#8 x 1½” wood screws per board.
The bottom of this board will sit 1¾” down
from the top of
(B19)
Front Floor.
D
: Make sure the
(B30)
Top Porch Sides and
(B29)
Porch Sides are level and then attach 1
(B28)
Porch Post to the inside of each set of
(B30
) Top Porch Side and
(B29)
Porch Sides
using 6
(S2)
#8 x 1½” wood screws per post.
STEP 12 Attach Porch Frame
27
