Big Backyard F23475 - STEP 29 Swing Assembly B

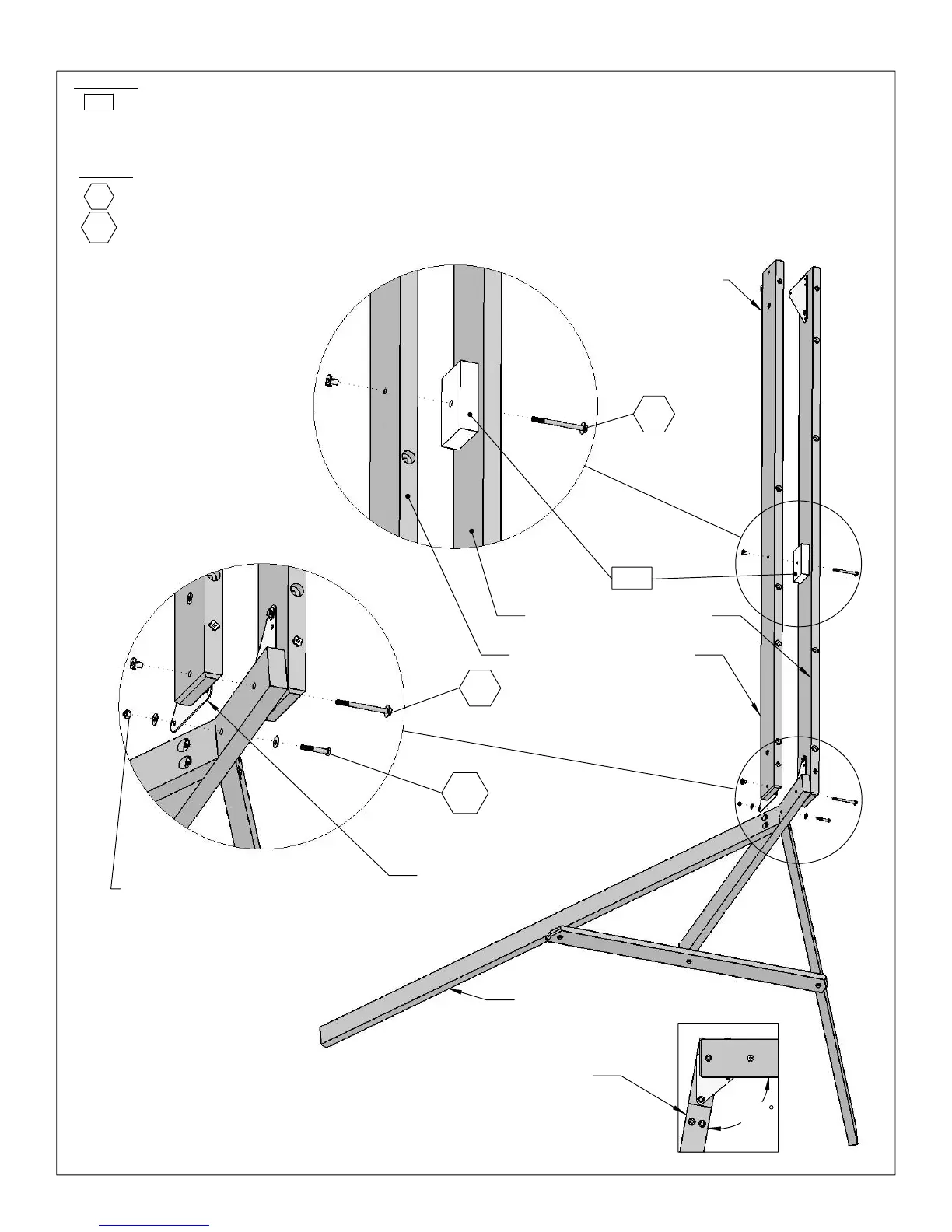

STEP 29 Swing Assembly B
G5
GL8
G5
Swing End Side
Side with OVERHANG
Lock Nut
Swing End Assembly
Fort End
NO OVERHANG
Make sure Swing End
Flares out 105°
105
B33
A
: Attach
(C44)
SW Rail Block between the
(C1)
Front Beam and
(C2)
Back Beam using 1
(G5)
5/16 x 4½” hex bolt (with flat washer,
lock washer and t-nut).
B
: Connect the swing beam side with the Triangle Plates over
hanging to the Swing End Assembly using 1
(G5)
5/16 x 4½” hex
bolt (with flat washer, lock washer and t-nut) and 1
(GL8)
5/16 x 2”
hex bolt (with 2 flat washers and 1 lock nut) as shown below.
C
: Make sure the Swing End flares out at a 105 degree angle.
Back Beam Assembly
Front Beam Assembly
Hardware
Hex Bolt 5/16 x 4½"G52X
1X Hex Bolt 5/16 x 2"
GL8
1X Front Beam Assembly
1X Back Beam Assembly
1X Swing End Assembly
Wood Parts
1X B33 SW Rail Block 2 x 4 x 5Ǫ"
44
