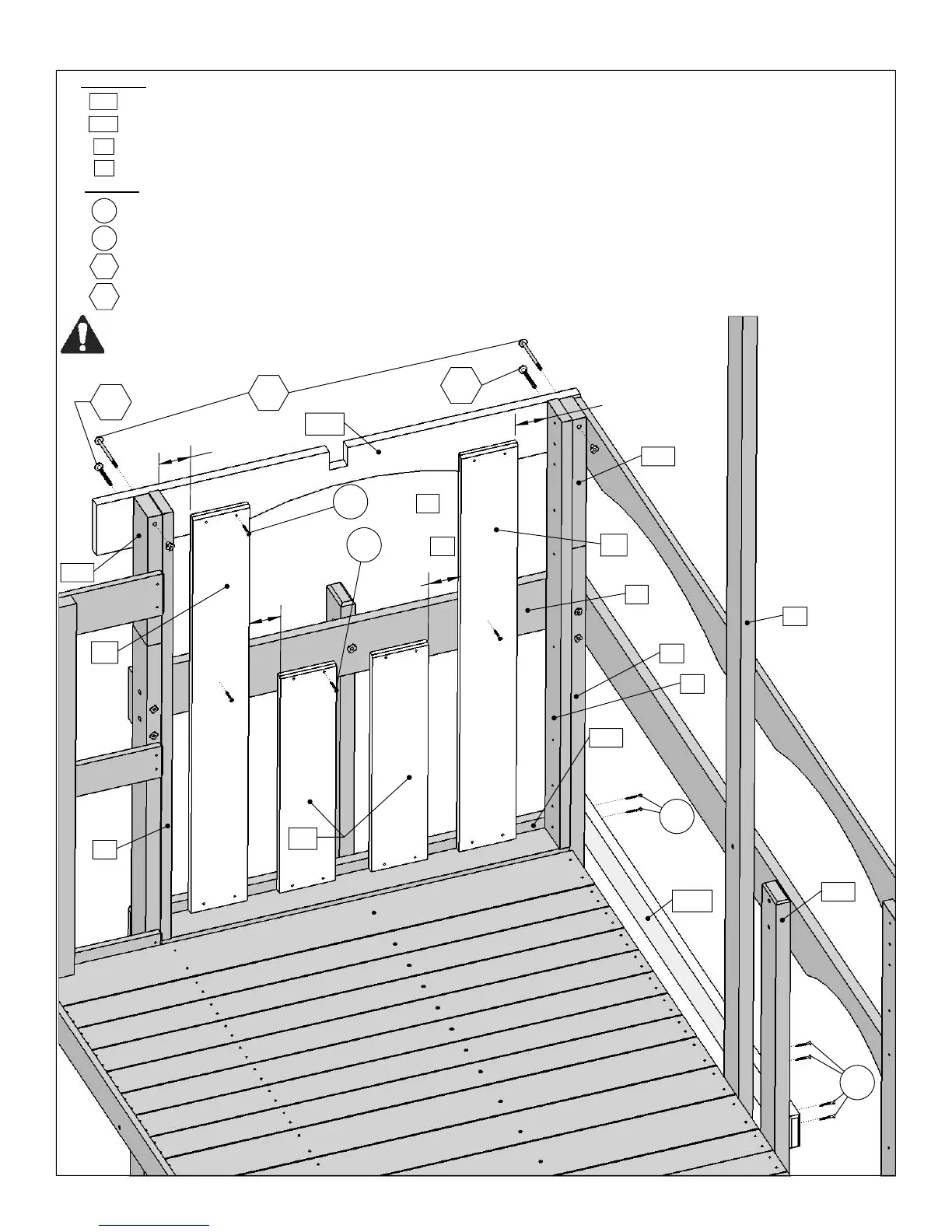

Big Backyard F23475 - STEP 15 Attach Wall Boards

D8
H5
LS3
S7
S2
S2
S7
E7
LS3
E7
C13
D4
4 per
E16
E7
5 per
E9
E10
B16
C4
C9
B18
B16
D4
D8
2½"
2½"
2½"
2½"
1X
SW Roof Side 5/4 x 6 x 45¾"
Hex Bolt 1/4 x 4½"2X
Pan Screw #12 x 2"
Warning.
1X
2X
C13
Wood Parts
Lag Screw 1/4 x 3"2X
When spacing wall
2X
E16
E7
6X
D4
Cedar Wall 1 x 6 x 43"
Wood Screw #8 x 1½"
CE Wall Board 1 x 6 x 23½"
S7
S2
18X
boards, do not exceed 2½"
H5
Hardware
Lower Back 5/4 x 4 x 52½"
LS3
Note:
(C13)
sits flush
to top of floor
boards
A
: Attach
(C13)
Lower Back to
(B18)
Centre Divide,
(C9)
Roof Upright
and
(C4)
Post using 6
(S7)
#12 x 2” pan screw, making sure that
(C13)
is flush to the top of the floor boards.
B
: Pre-drill pilot holes using a 1/8” drill bit before installing lag screws.
Attach
(E16)
SW Roof Side to both
(B16)
Roof Blocks using 2
(H5)
1/4
x 4½” hex bolts (with flat washer, lock washer and t-nut) in the top holes
and 2
(LS3)
1/4 x 3” lag screws (with flat washer) in the bottom holes.
C
: Attach 1
(E7)
Cedar Walls 2½" from the edge of each
(D8)
to
(E16)
SW Roof Side,
(E9)
SW Top and
(E10)
SW Floor using 5
(S2)
#8 x 1½"
wood screws per board.
D
: Attach 1
(D4)
CE Wall Board 2½" from the edge of each
(E7)
Cedar
Wall to
(E9)
SW Top and
(E10)
SW Floor using 4
(S2)
#8 x 1½" wood
screws per board.
STEP 15 Attach Wall Boards
30
