Big Backyard F23475 - STEP 8 Assemble Upper Frame

E39
B18
B20
H11
C4
C9
H3
C4

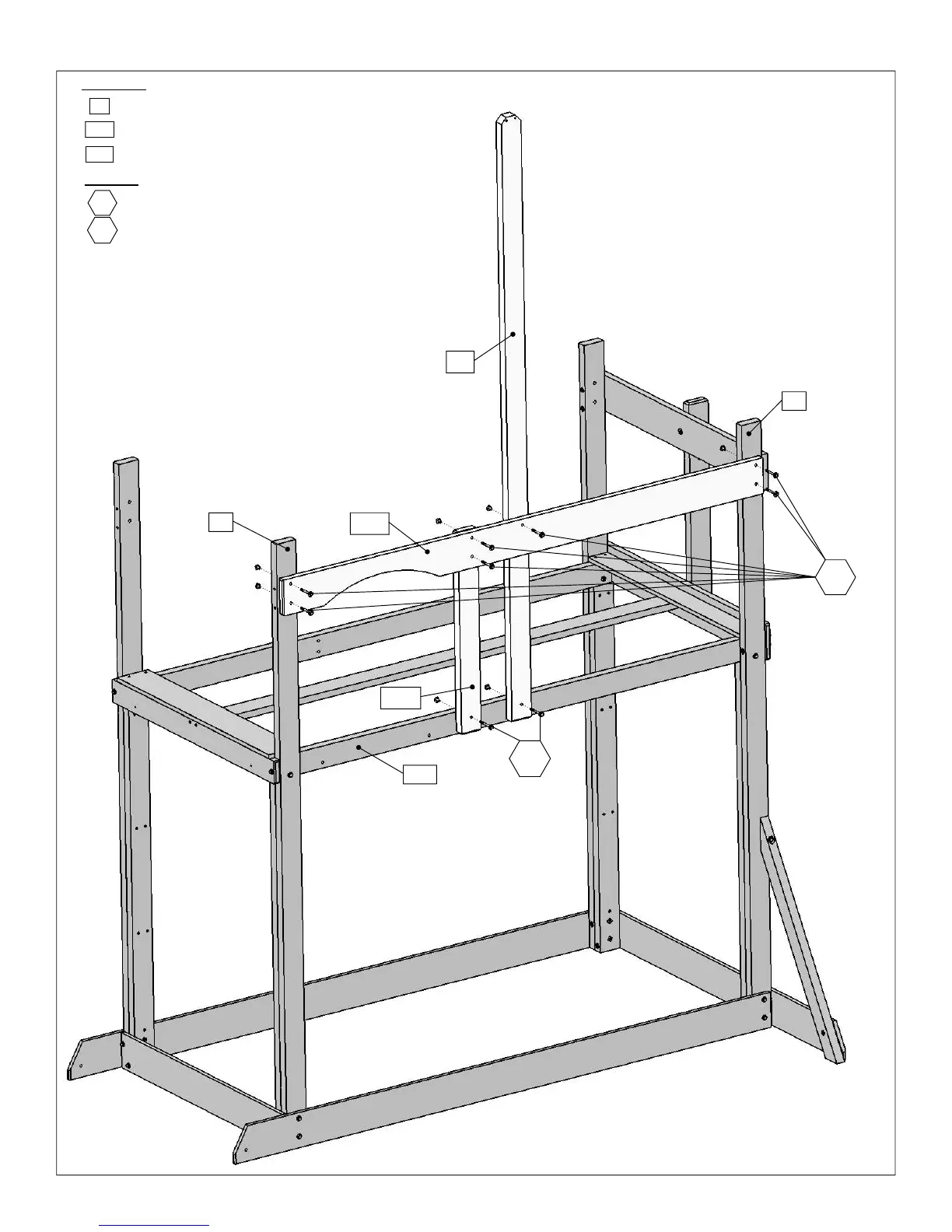

STEP 8 Assemble Upper Frame
Hardware
1X
7X
C9 Roof Upright 2 x 4 x 92Ǫ"
2X
1X
Center Divide 2 x 4 x 31"B18
1X
Hex Bolt 1/4 x 2½"
Hex Bolt 1/4 x 2¾"
H3
Wood Parts
Middle Back 5/4 x 6 x 83"
H11
E39
A
: Attach
(E39)
Middle Back to
(C4)
Post
using 4
(H3)
1/4 x 2½” hex bolt (with flat
washer, lock washer and t-nut).
B
: Attach
(B18)
Center Divide to
(E39)
Middle Back next to the arch using 2
(H3)
1/4
x 2½” hex bolt (with flat washer, lock washer
and t-nut) and to
(B20)
Back Floor using 1
(H11)
1/4 x 2¾” hex bolt (with flat washer,
lock washer and t-nut).
C
: Attach
(C9)
Roof Upright to
(E39)
Middle
Back using 1
(H3)
1/4 x 2½” hex bolt (with flat
washer, lock washer and t-nut) and to
(B20)
Back Floor using 1
(H11)
1/4 x 2¾” hex bolt
(with flat washer, lock washer and t-nut).
23
