Big Backyard F23475 - STEP 17 Attach Porch Wall Boards

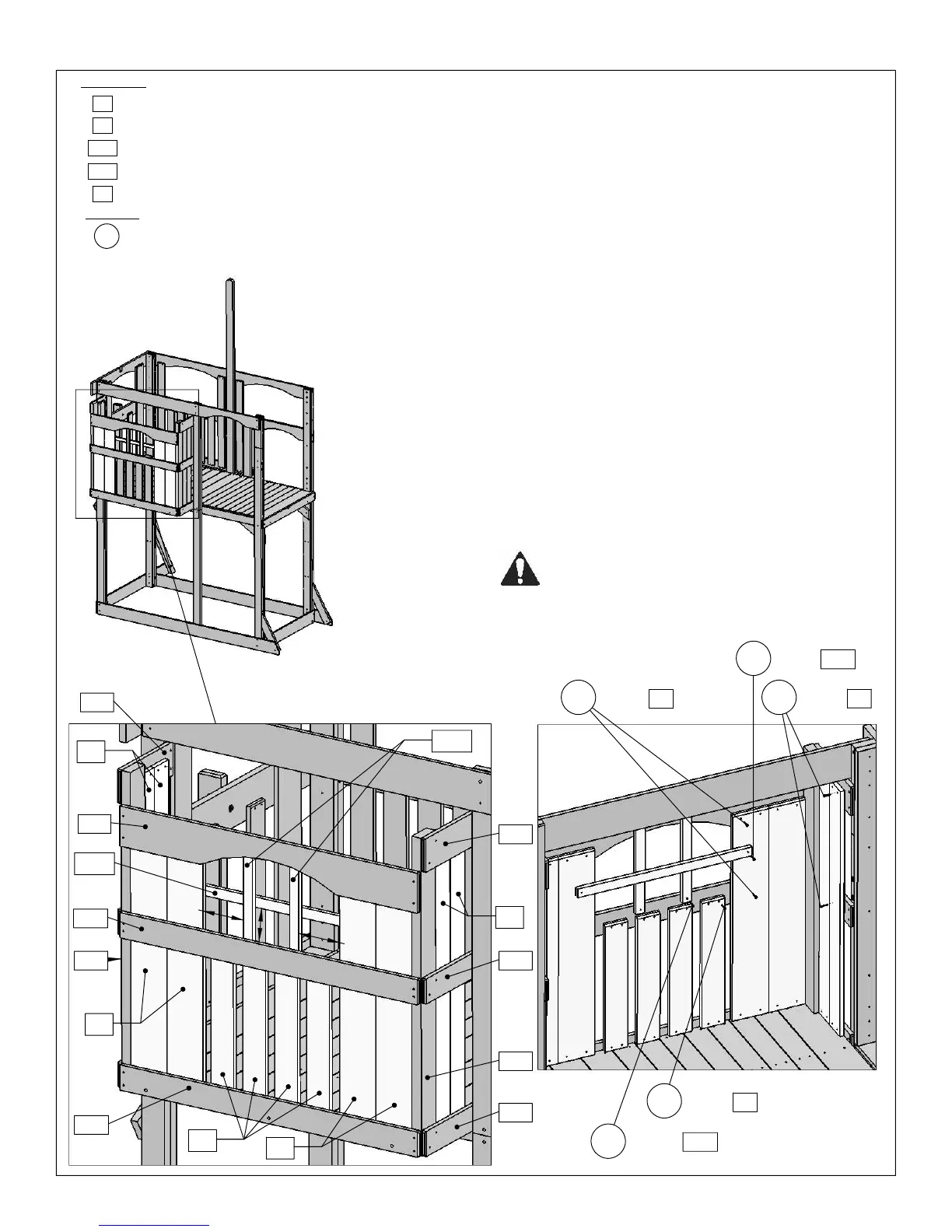

STEP 17 Attach Porch Wall Boards
Window Cross 1 x 2 x 26"
B23
CE Wall Board 1 x 4 x 20"
S1
4X
Hardware
B22
Cedar Wall 1 x 6 x 32½"
Wood Screw #8 x 1ǩ"
B9
2X
1X
CE Gap Board 1 x 4 x 38¾"
62X
Window Upright 1 x 2 x 15"
Wood Parts
4X D6
B7
4X
A
: Attach 2
(B7)
CE Gap Boards per side to each
(B30)
Top
Porch Side and both
(B29)
Porch Side using 5
(S1)
#8 x 1ǩ”
wood screws per board.
B
: Install 4
(D6)
Cedar Wall, 2 tight against both
(B28)
Porch
Posts attaching to
(E38)
Porch Top,
(D11)
Porch Floor and
(D12)
Porch Front using 5
(S1)
#8 x 1ǩ” wood screws per
board.
C
: In the space between the
(D6)
Cedar Walls evenly space
and attach 4
(B9)
CE Wall Boad to
(D11)
Porch Floor and
(D12)
Porch Front using 4
(S1)
#8 x 1ǩ” wood screws per
board.
D
: Attach 2
(B23)
Window Upright, each 6" from inside
(D6)
Cedar Wall, to
(E38)
Porch Top and
(D12)
Porch Front using
2
(S1)
#8 x 1ǩ" wood screws per board.
E
: Measure 5" up from
(D12)
Porch Front and attach
(B22)
Window Cross to both inside
(D6)
Cedar Wall using 2
(S1)
#8
x 1ǩ” wood screws.
Warning.
Center
(B22)
in opening.
B28
D11
B28
B30
E38
B7
B29
B30
B7
B22
B23
D6
B29
B9
D6
D12
6"
6"
5"
2 per
S1
S1
S1
5 per
B22
S1
B23
B7
S1
D6
5 per
2 per
4 per
B9
32
