Big Backyard F23475 - STEP 20 Attach Porch Roof

X5
S4
S2
Corner Braces
w/ hardware
E33
E29
S4
E35
D10
E34
B30
45¾"

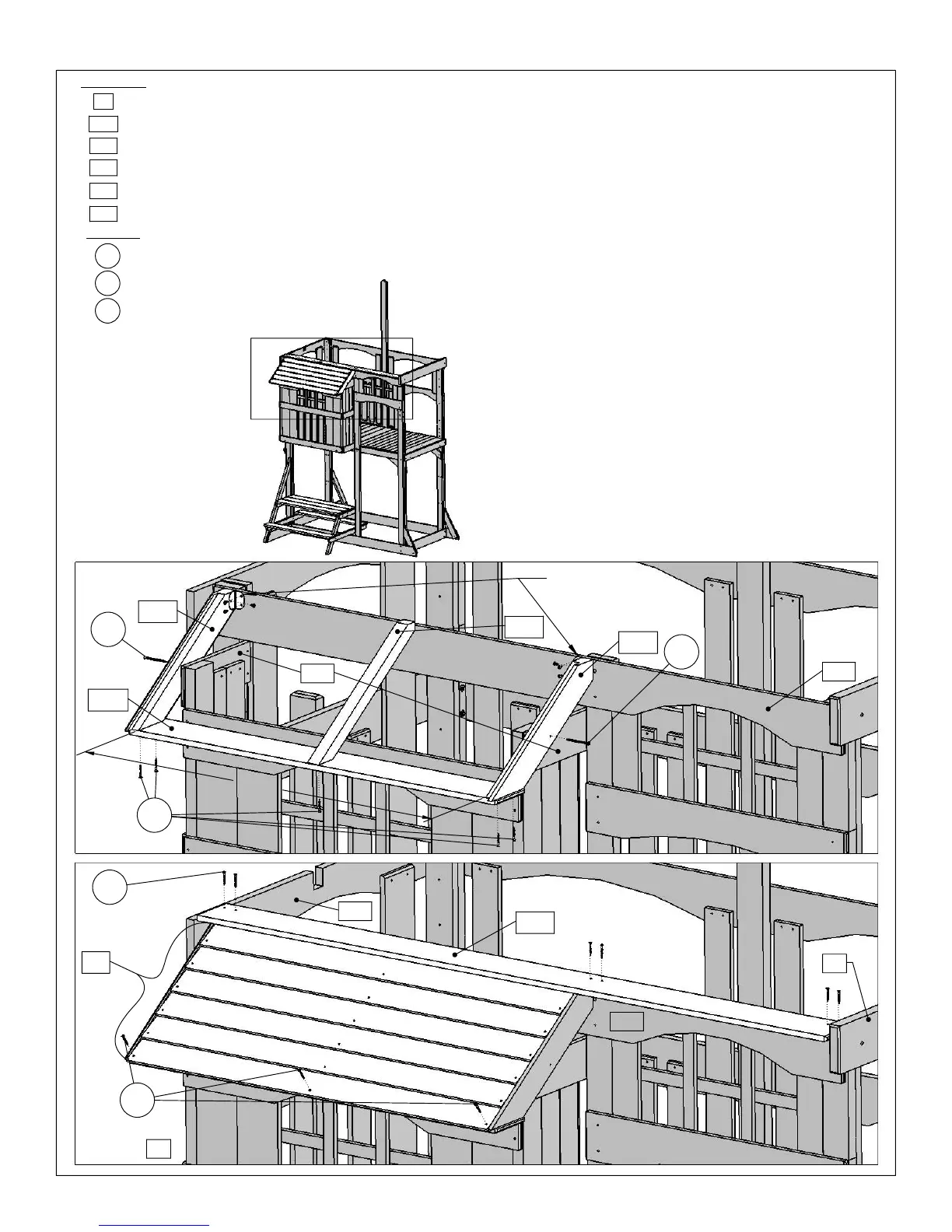

STEP 20 Attach Porch Roof
2X
1X
1X
11X
Soffit 1 x 6 x 83"
R Porch Roof Support 2 x 4 x 21Ǭ"1X
S4
S0 Truss Screw #8 x 7/8"
D7
Wood Parts
S2 Wood Screw #8 x 1½"
18X
1X
1X
L Porch Roof Support 2 x 4 x 21Ǭ"
Wood Screw #8 x 3"
Porch Roof Joist 2 x 2 x 21Ǫ"
6X
E33
E35
E34
E36
Cedar Roofing 3/8 x 3½ x 47½"
Porch Soffit 1 x 6 x 48½"
Hardware
D10
1X Corner Braces
w/ hardware
(pkg of 2)
A
: On the outside of each
(B30)
Top Porch Side,
attach 1
(E34)
L Porch Roof Support and 1
(E33)
R
Porch Roof Support to
(E29)
Front Top using 1
Corner Brace with attached hardware to each
support. The inside distance between
(E33)
and
(E34)
should measure 45¾” and flush to the top of
(E29)
.
B
: Fasten both
(E33)
R Porch Roof Support and
(E34)
L Porch Roof Support to both
(B30)
Top
Porch Sides using 1
(S4)
#8 x 3” wood screw per
side.
C
: Attach
(D10)
Porch Soffit to the bottom of
(E33)
R Porch Roof Support and
(E34)
L Porch Roof
Support using 2
(S2)
#8 x 1½" wood screws per
support.
D
: Attach
(E35)
Porch Roof Joist to
(D10)
Porch
Soffit using 1
(S2)
#8 x 1½” wood screw.
E
: Attach 6
(D7)
Cedar Roofing to
(E33)
R Porch
Roof Support,
(E34)
L Porch Roof Support and
(E35)
Porch Roof Joist using 3
(S0)
#8 x 7/8” truss
screws per board.
F
: Attach
(E36)
Soffit to both of the
(B16)
Roof
Blocks and to the
(B24)
Upper Front Post flush to
the front of
(D9)
SL Top and
(E16)
SW Roof Side
using 6
(S2)
#8 x 1½” wood screws.
D7
E16
D7
(3 per
)
X6
S2
X18
E36
S0
E29
D9
35
