Big Backyard F23475 - STEP 23 Assemble Crowsnest

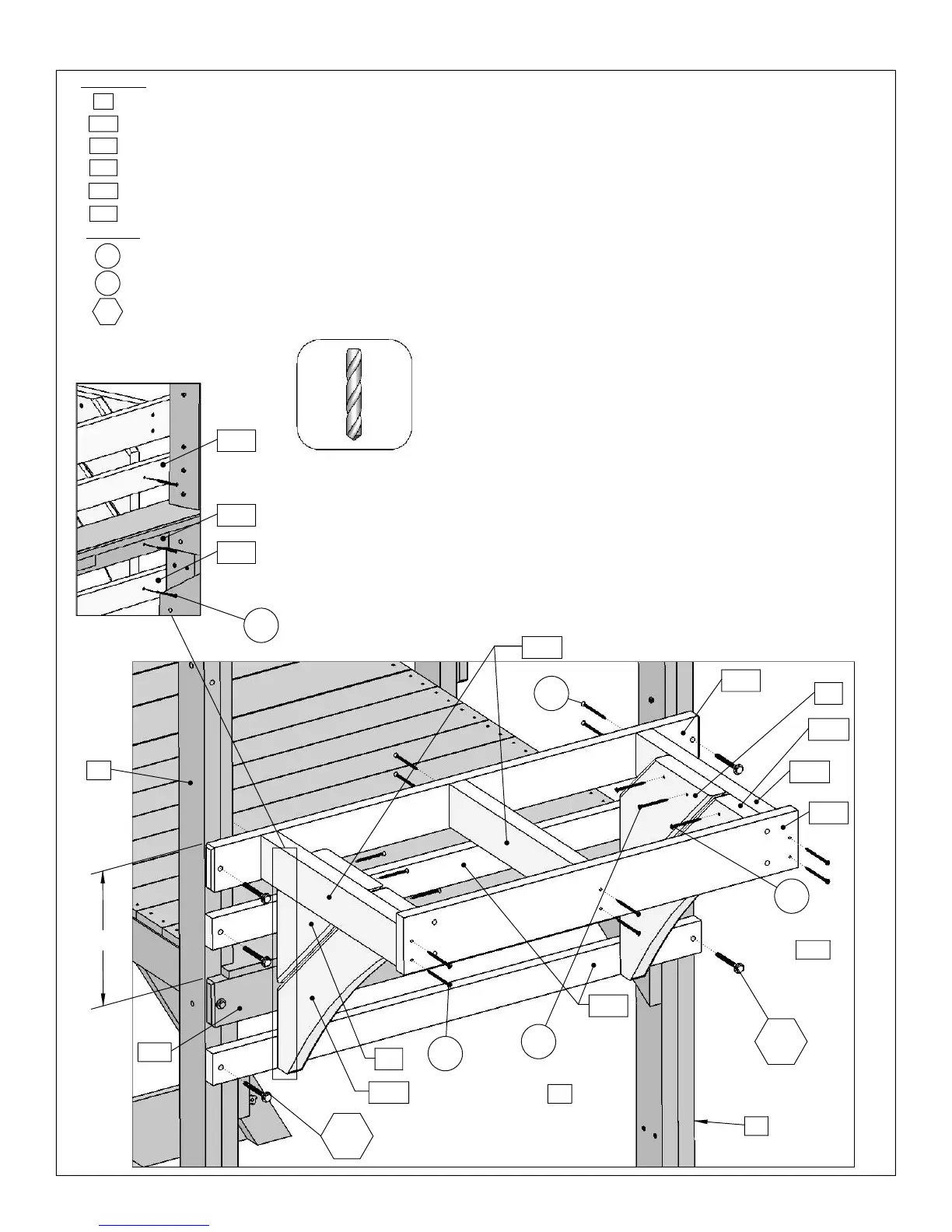

STEP 23 Assemble Crowsnest
S3
C4
S4
C4
E28
S4
(2 per
B17
C17
LS3
E21
E27
X6
C7
X4
C7
C17
LS3
C7
)
(2 per )
X3
S3
S3
X6
C17
X3
X4
B17
E30
10"
S3
Large Gusset 2 x 6 x 25"
12X
E27
1X
Wood Screw #8 x 3"
3X
Hardware
C17
Small Gusset 2 x 6 x 17"
Safety Rail 5/4 x 3 x 41½"
2X
SL Floor Support 5/4 x 5 x 33½"
2X C7
E27
Wood Screw #8 x 2½"14X
E21
Crowsnest Floor Joist 2 x 4 x 18¼"
S4
LS3
B17
2X
Wood Parts
1X
E30
Crowsnest Floor Support 5/4 x 4 x 41½"E28
6X Lag Screw 1/4 x 3"
E27
Pre-drill
1/8" Bit
Pre-drill pilot holes using a 1/8” drill bit before installing lag screws.
A
: Measure 10” up from the top of the floor boards
and attach
(E28)
Crowsnest Floor Support to both
(C4)
Posts using 2
(LS3)
1/4 x 3” lag screws (with flat
washer).
B
: Evenly space and attach 1
(E27)
Safety Rail to
both
(C4)
Posts between
(E28)
Crowsnest Floor
Support and
(E30)
SL Floor using 2
(LS3)
#8 x 3” Lag
Screw (with flat washer).
C
: Attach 3
(B17)
Crowsnest Floor Joist to
(E28)
Crowsnest Floor Support using 2
(S4)
#8 x 3” wood
screws per floor joist.
D
: Attach
(E21)
SL Floor Support to each
(B17)
Crowsnest Floor Joist using 6
(S4)
#8 x 3” wood
screws.
E
: Make sure assembly is level and then attach 1
(C7)
Small Gusset using 2
(S3)
#8 x 2½” wood screws per
gusset and 1
(C17)
Large Gusset using 2
(S3)
#8 x
2½” wood screws per gusset to the inside of each
(B17)
Crowsnest Floor Joist.
F
: Attach 1
(E27)
Safety Rail to both
(C4)
Posts flush
to the bottom of
(C17)
Large Gusset using 2
(LS3)
1/4
x 3” lag screws (with flat washer).
G
: Attach both
(C7)
Small Gussets from the inside of
the fort to top
(E27)
Safety Rail using 1
(S3)
#8 x 2½”
wood screw per gusset.
H
: Attach both
(C17)
Large Gussets from the inside of
the fort to
(E30)
SL Floor and bottom
(E27)
Safety Rail
using 2
(S3)
#8 x 2½” wood screws per gusset.
3 per side
from inside/under floor
38
