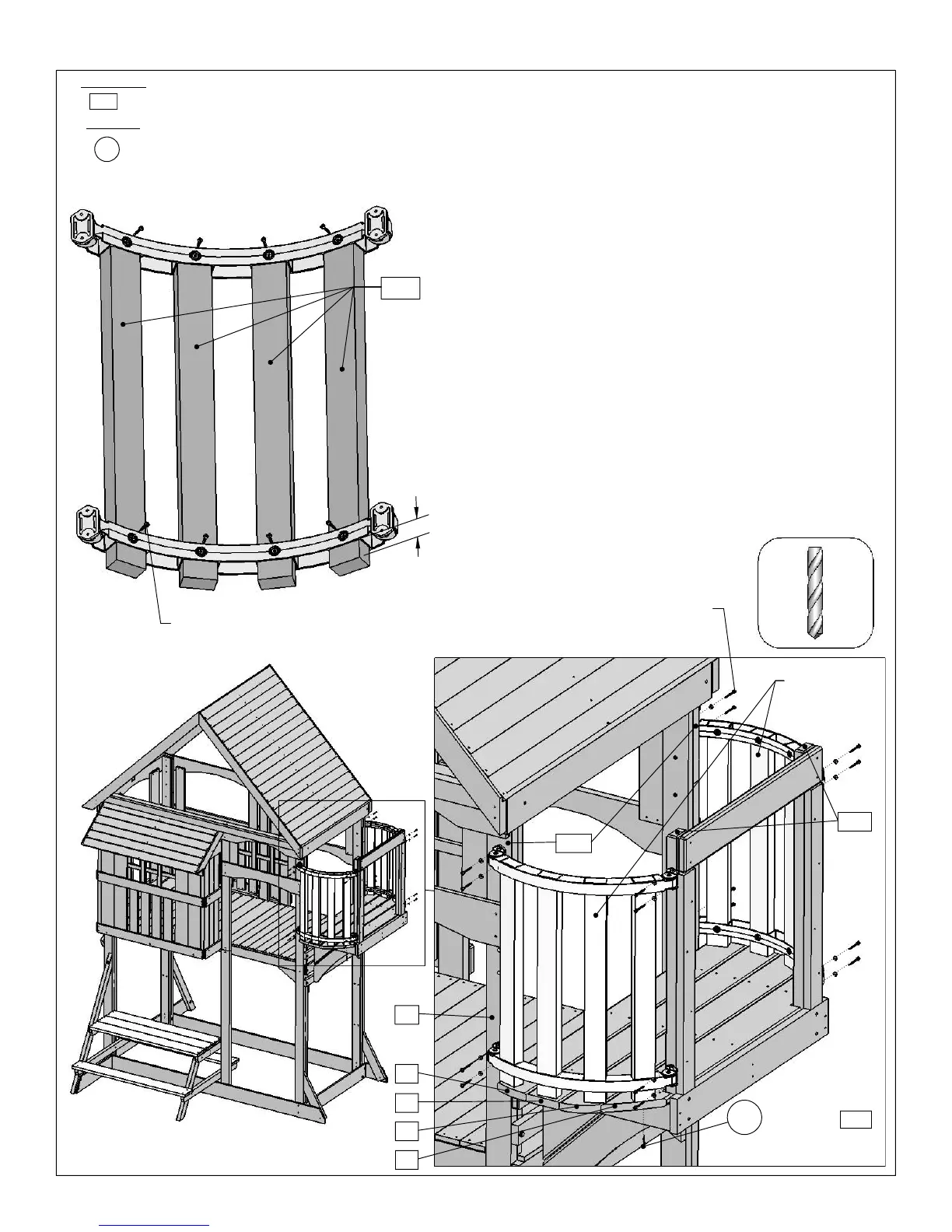

Big Backyard F23475 - STEP 25 Attach Crowsnest Rails

drilled floor boards using 1
Crowsnest Rail 2 x 3 x 28"
Wood Parts
per rail.
4X Crowsnest Rail Set w/ hardware
8X
#8 x 2½” wood screws
: Attach the Crowsnest Rail Assemblies to the pre-
8X Wood Screw #8 x 2½"
(S3)
Hardware
A
: Insert 4
(E22)
Crowsnest Rail into 1 plastic rail
making sure the
(E22)
’s are flush to the top of the rail.
Attach with 1 #8 x 1” pan screw per rail. Hardware is
provided with the set. This is the top of the Assembled
Crowsnest Rail.
B
: Insert the bottom of each
(E22)
Crowsnest Rail into
another plastic rail leaving 1¼" overhang at bottom and
attach with 1 #8 x 1” pan screw per rail. Hardware is
provided with set.
C
: Repeat Steps A & B to create a second Crowsnest
Rail Assembly.
D
: Attach each rail to both
(B16)
Roof Blocks and to
both
(C4)
Posts using 4 #12 x 2” pan screws per side.
Hardware is provided with set.
E
: Attach each rail to both
(E25)
SL Posts using 4 #12
x 2” pan screws per side. Hardware is provided with
set.
F
: Using a 1/8” drill bit pre-drill into both sides of the
(E1)
CE Floor Board,
(E2)
CE Crowsnest Floor,
(E3)
CE Gap Board and
(E4)
CE Floor. Make sure to pre-
drill into the floor boards only and not into the
(E22)
Crowsnest Rails.
G
E22
S3
Pre-drill 1/8" Bit
STEP 25 Attach Crowsnest Rails
S3
E1
Assembled
predrill pilot holes
and w/ flat washers
E2
8 Places (2 per Rail)
Included #8 x 1" Pan Screws
E22
Crowsnest
Rails
)
E3
X8 (1 per
E4
16 Places
B16
only in floor boards
Included #12 x 2" Pan Screws
E25
C4
E22
overhang
1¼"
40
