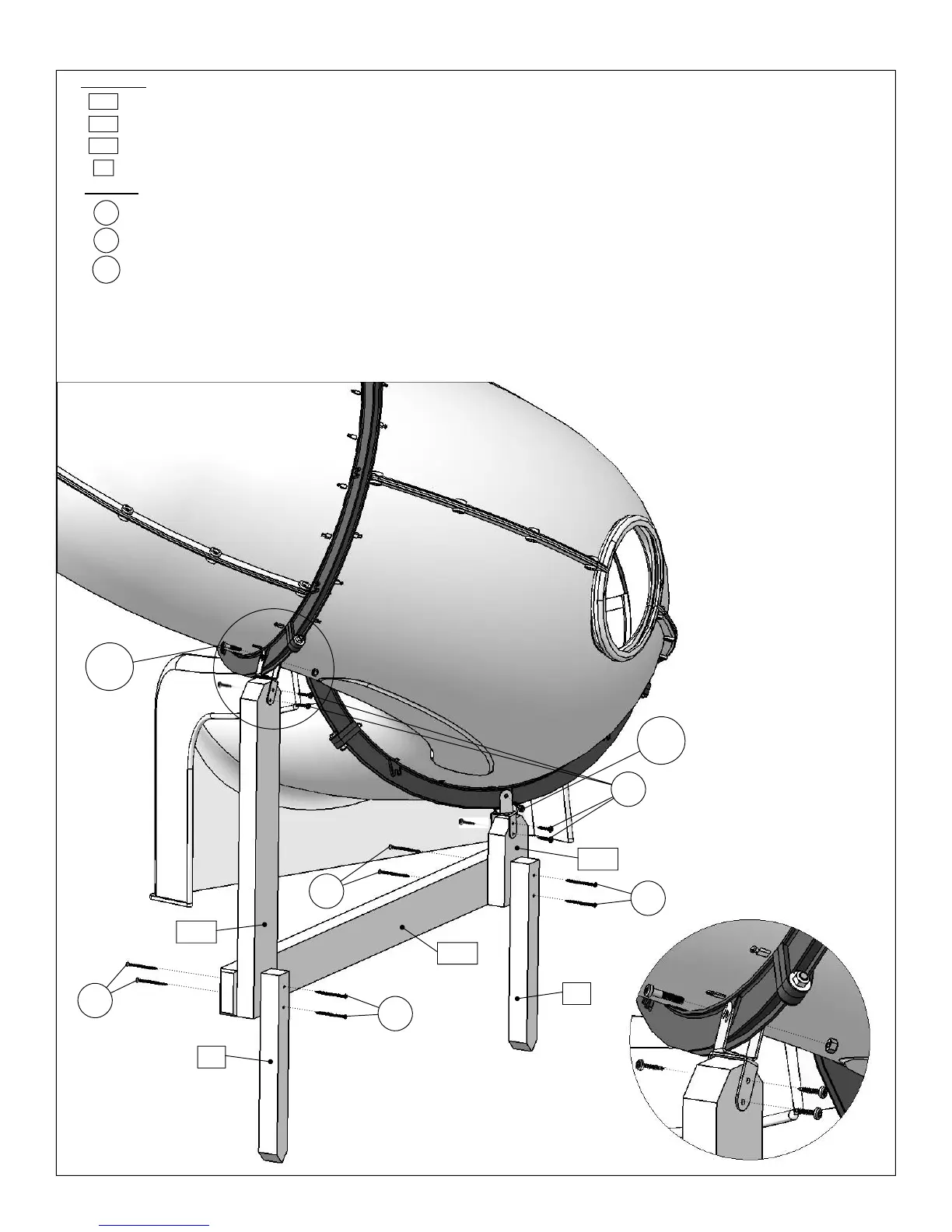

Big Backyard F23475 - STEP 39 Attach Slide Supports

6X
Long SL Upright 2 x 4 x 24½"
1X
Pan Bolt 1/4 x 1ǫ"
2X
1X
Pan Screw #12 x 1"
Hardware
8X
TNR SL Base 2 x 4 x 42½"
S6
2X
S3
B25
1X
SL Block 2 x 4 x 6¼"
B27
Wood Parts
A2
PB4
Ground Stakes 2 x 2 x 14"
Wood Screw #8 x 2½"
B26
2X TNR Slide Support Mount
2X 1/4" Lock Nut
A
: Bolt Slide to Support Mount through previously drilled
hole in Clamp Ring using 1
(PB4)
Pan Bolt (with lock nut)
B
: Attach
(B26)
Slide Block to Support Mount using 3
(S6)
#12 x 1" Pan Screw.
C
: Attach
(B27)
TNR Slide Base to
(B26)
SL Block using 2
(S3)
#8 x 2½" Wood Screw.
D
: Attach
(B25)
Long SL Upright to
(B27)
TNR Slide Base
using 2
(S3)
#8 x 2½" Wood Screws.
E
: Drill 1/4" thru hole at location on Clamp Ring above
(B25)
Long SL Upright, then attach Support Mount using 1
(PB4)
1/4 x 1¾" Pan Bolt (w/ lock nut) and 3
(S6)
#12 x 1"
Pan Screws.
F
: Attach 2
(A2)
Ground Stakes to
(B25)
Long SL Upright
and
(B26)
SL Block using 2
(S3)
#8 x 2½" Wood Screws per
Ground Stake.
STEP 39 Attach Slide Supports
S3
S3
S3
B26
S6
S3
B25
PB4
A2
B27
A2
PB4
55
