KBW (E6) 11/2016 page 39/147
7.4 Light commutation and special controller functions via operation lines
You can define the switching state of up to 16 operation lines (control contacts). They are used to activate
/ deactivate special controller functions.
• Operation line “Idle mode” activates / deactivates the operating mode “Idle mode” (chap. 5.4).
• Operation lines “Light level 1” and “Light level 2” serve to turn on/off the fluorescent tubes
The other operation lines are without function.
Use the “Setpoints” menu to configure the operation lines.

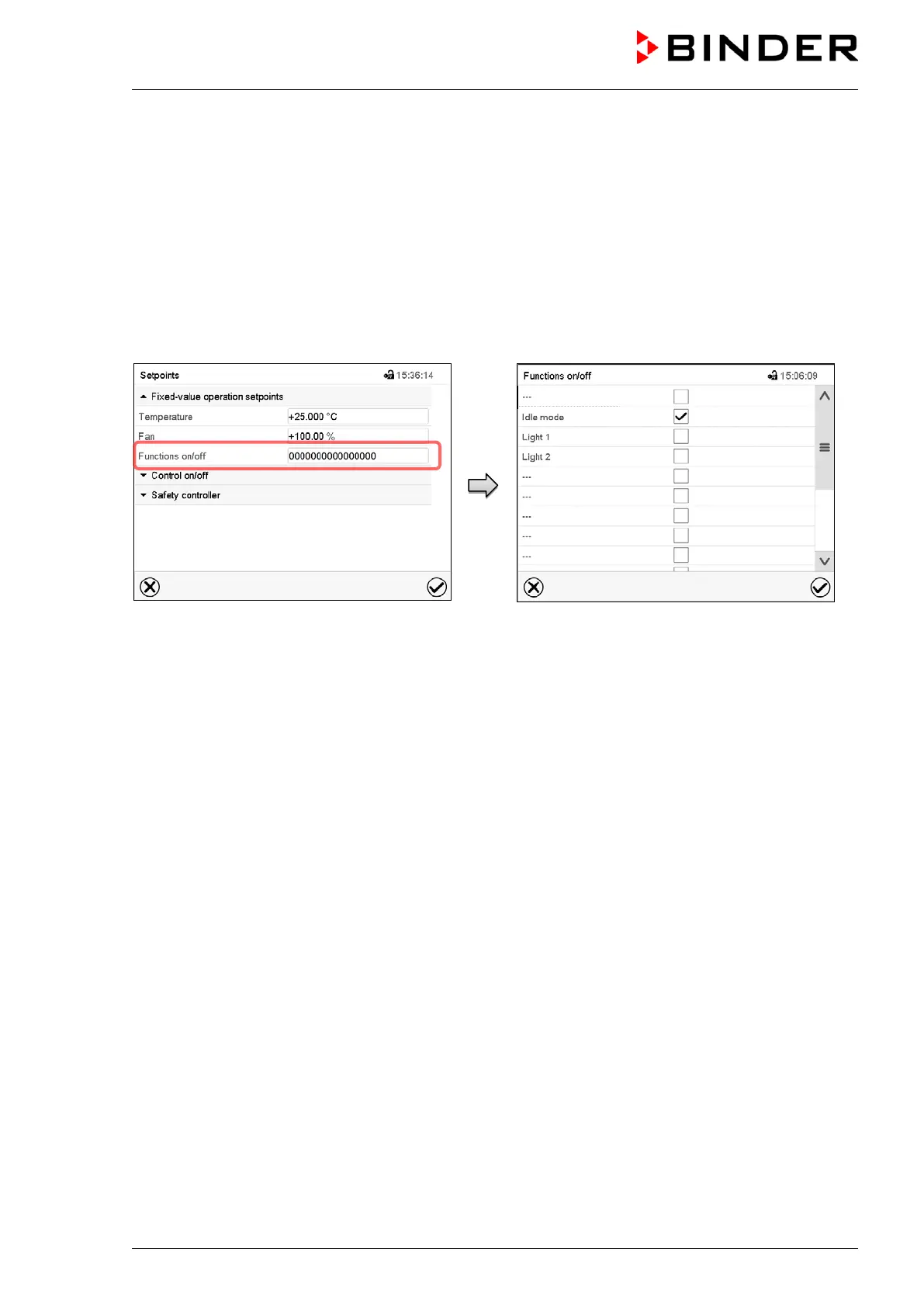

“Setpoints” menu.
Select the field “Functions on/off”.
“Functions on/off” entry menu.
Mark / unmark the checkbox to activate / deac-
tivate the desired function and press the Con-
firm icon.
Activated operation line: switching status “1” (On)
Deactivated operation line: switching status “0” (Off)
The operation lines count from right to left.
Example:
Activated operation line “Idle mode” = 000000000000000
1
Deactivated operation line “Idle mode” = 000000000000000
0
