Example: Desired temperature value: 40 °C, desired safety controller value: 45 °C.
Possible settings for this example:
Temperature set point Safety controller mode Safety controller set-point
40 °C
Limit (absolute)
45 °C
Offset (relative)
5 °C

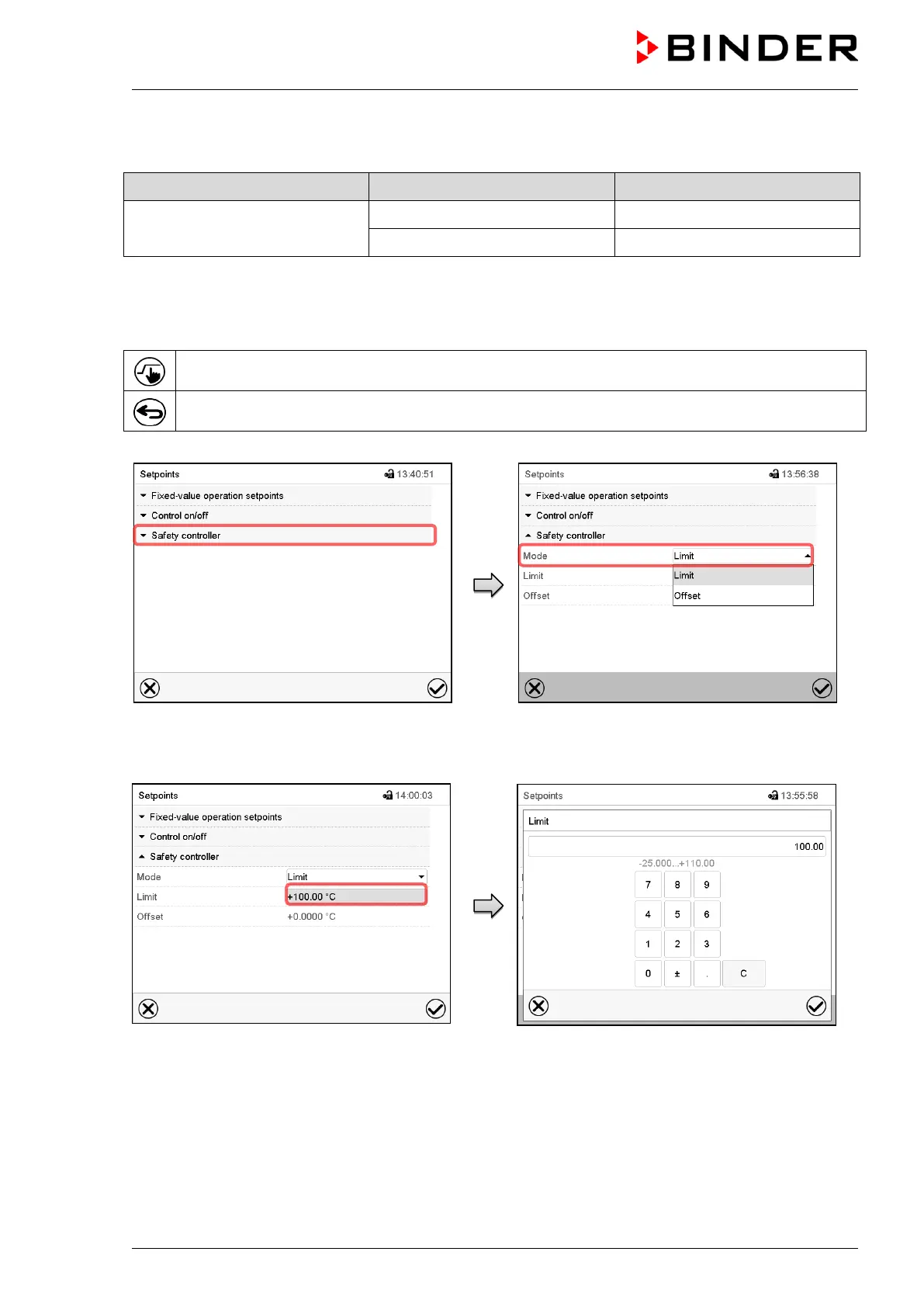

12.2.2 Setting the safety controller
Press the Setpoint setting icon to access the “Setpoint” setting menu from Normal display.
Press the Back icon to go return to Normal display from any menu.
“Setpoints” menu.
Select “Safety controller”.
“Setpoints” menu.
In the field “Mode” select the desired setting “Lim-
it” or “Offset”.
“Setpoints” menu.
Select the corresponding field “Limit” or “Off-
set” (example: “Limit”)
-
“Limit” entry menu.
Enter the desired safety controller setpoint and
press the Confirm icon.
Or
