KBW (E6) 11/2016 page 68/147
10.6.6 Light commutation and special controller functions via operation lines
You can define the switching state of up to 16 operation lines (control contacts). They are used to activate
/ deactivate special controller functions.
• Operation line Idle mode” activates / deactivates the operating mode “Idle mode” (chap. 5.4).
• Operation lines “Light level 1” and “Light level 2” serve to turn on/off the fluorescent tubes
The other operation lines are without function.
Select the desired program and section. You can set the operation lines in the “Functions on/off” field.
For details please refer to chap. 9.7.3.

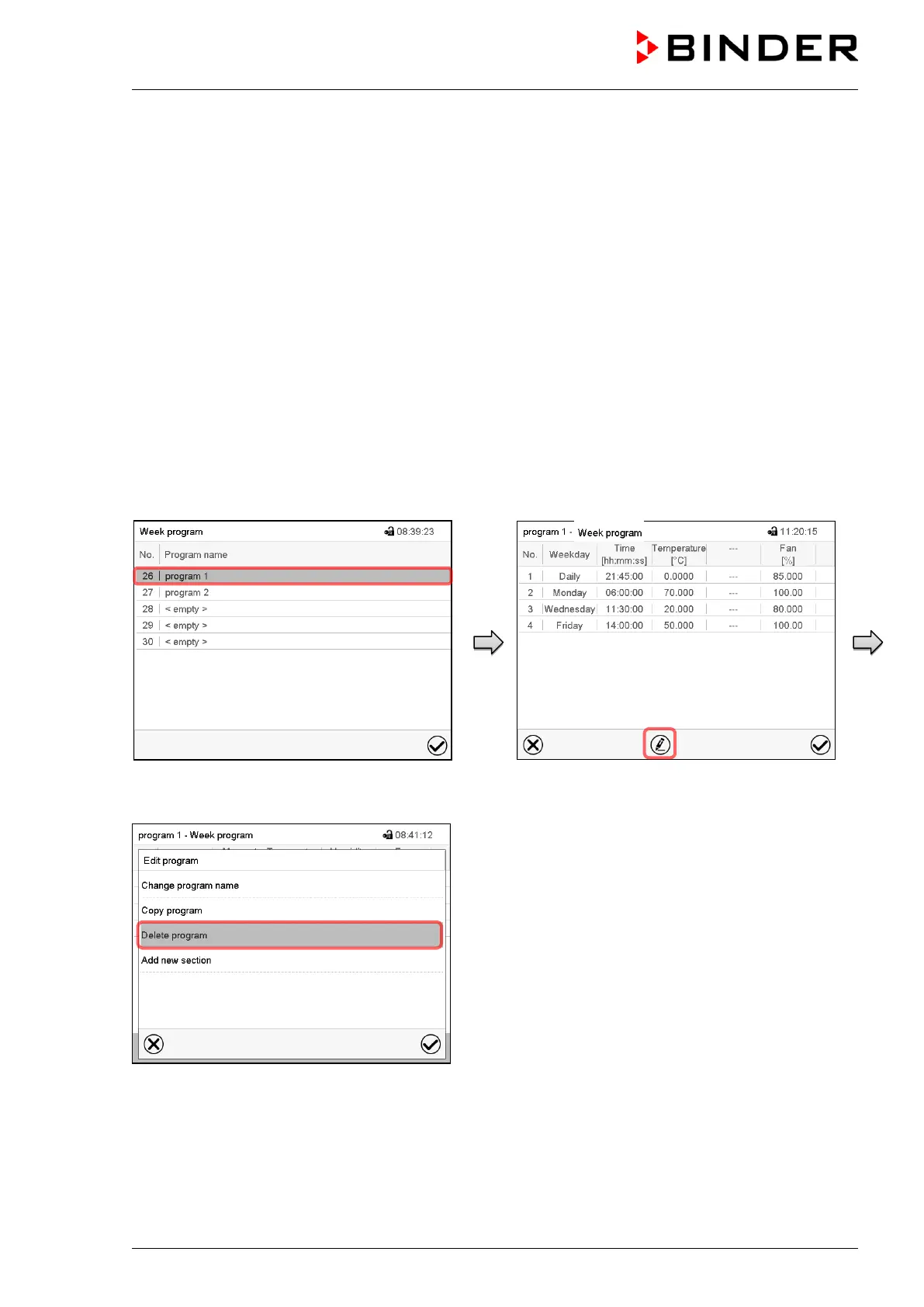

10.7 Deleting a week program
Path: Main menu > Programs > Week program
“Week program” menu.
Select the program to be deleted.
“Program view”.
Press the Edit icon“.
Program editor: “Edit program” menu.
Select “Delete program”.
