CB / CB-UL, CBF / CBF-UL (E7) 01/2022 Page 43/199
4.5.2 Water supply via freshwater bag (standard)
4.5.2.1 Scope of delivery
The optional tubular bag set includes all necessary connecting parts:
• Set art. no. 8009-1083 with 3 freshwater bags (included in scope of delivery)
• Set art. no. 8009-1058 with 12 freshwater bags (option, annual demand)
Each bag set includes:
• 3 resp. 12 (optional kit) freshwater bags (art.no. 6002-0626)
• 3 two-piece tube connectors with 3-5mm nozzles (art.no. 6009-0322)
• 3 two-piece tube connectors with 5-7mm nozzles (art.no. 6009-0323)
• 3 resp. 12 (optional kit) gas fine filters (sterile filter) (art.no. 6014-0012)
• 6 m silicone tube (DN 3mm) (art.no. 6008-0267)
• 1m filling tube (DN 10 mm) (art.no. 6008-0268)
• Instructions (art.no. 7001-0385)
4.5.2.2 Installation and connection of the freshwater bag

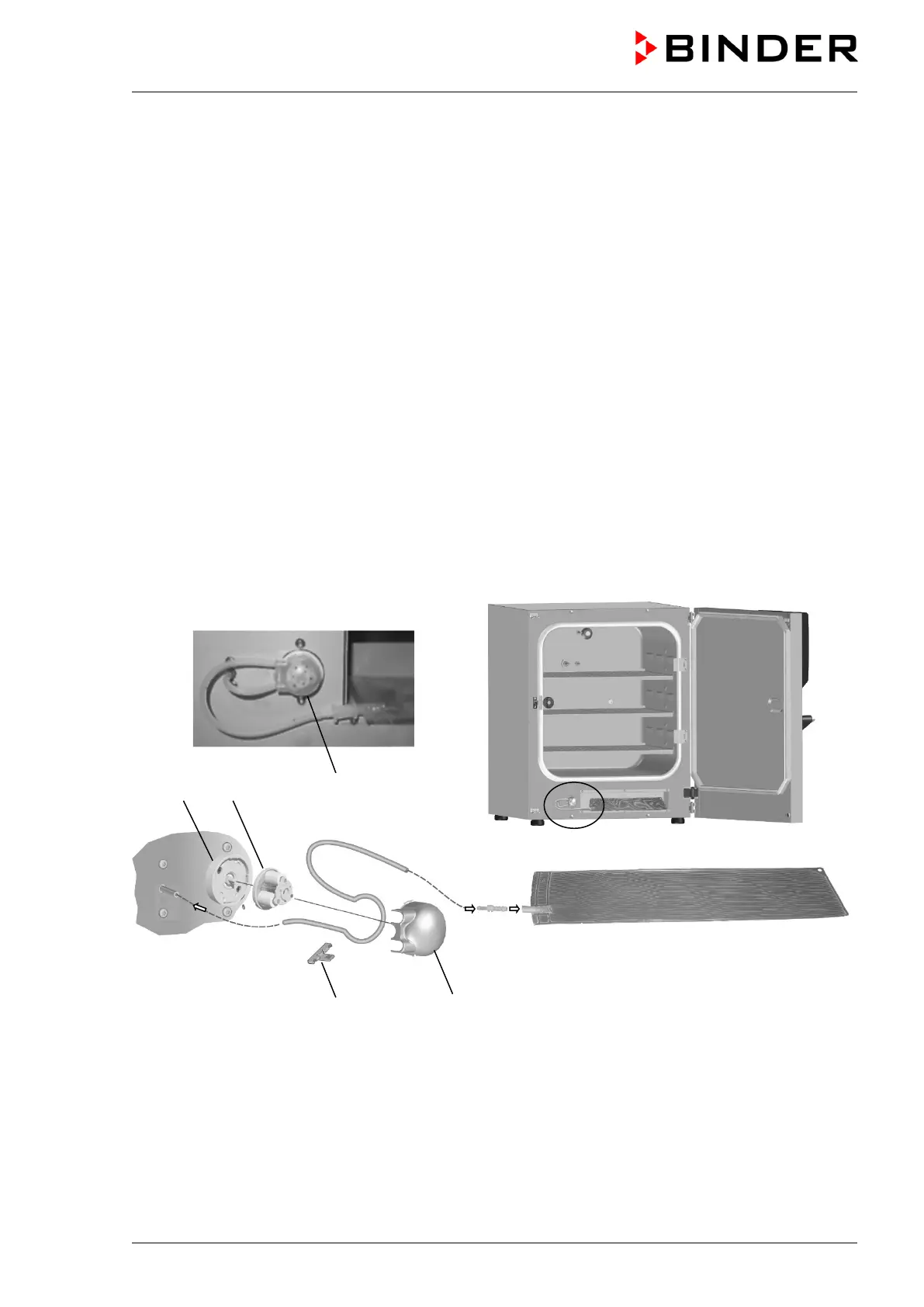

Figure 16: Installation of the water supply via freshwater bag
(12) Pump head
(12a) Pump head cover
(12b) Tube retainer
(12c) Rotor
(13) Pump connector
