4.5.3 Water supply via prefilled water bottle (optional humidification water set)
By using the humidification water set you will achieve unsurpassed contamination safety of your samples
in the BINDER CO
2
incubator CBF / CBF-UL.
4.5.3.1 Scope of delivery
The optional humidification water set includes all necessary connecting parts:
• Art.no. 8009-1104 Set with 10 prefilled one-liter bottles (annual demand)
The humidification water set includes:
• 10 one-liter bottles, prefilled with sterile, deionized water (art.no. 1007-0314)
• 3 spike connectors (transfer sets) for sterile liquids (art.no. 6007-0131)
• 3 two-piece tube connectors with 3-5mm nozzles (art.no. 6009-0322)
• 2 m silicone tube (DN 3mm) (art.no. 6008-0267)
• 3 gas fine filters (sterile filter) (art.no. 6014-0012)
• 20 cm silicone tube (DN 6 mm) (art.no. 6008-0009)
• Instructions (art.no. 7001-0385)
4.5.3.2 Installation, connection and change of the prefilled water bottle
The optional humidification water set includes all necessary connecting parts.

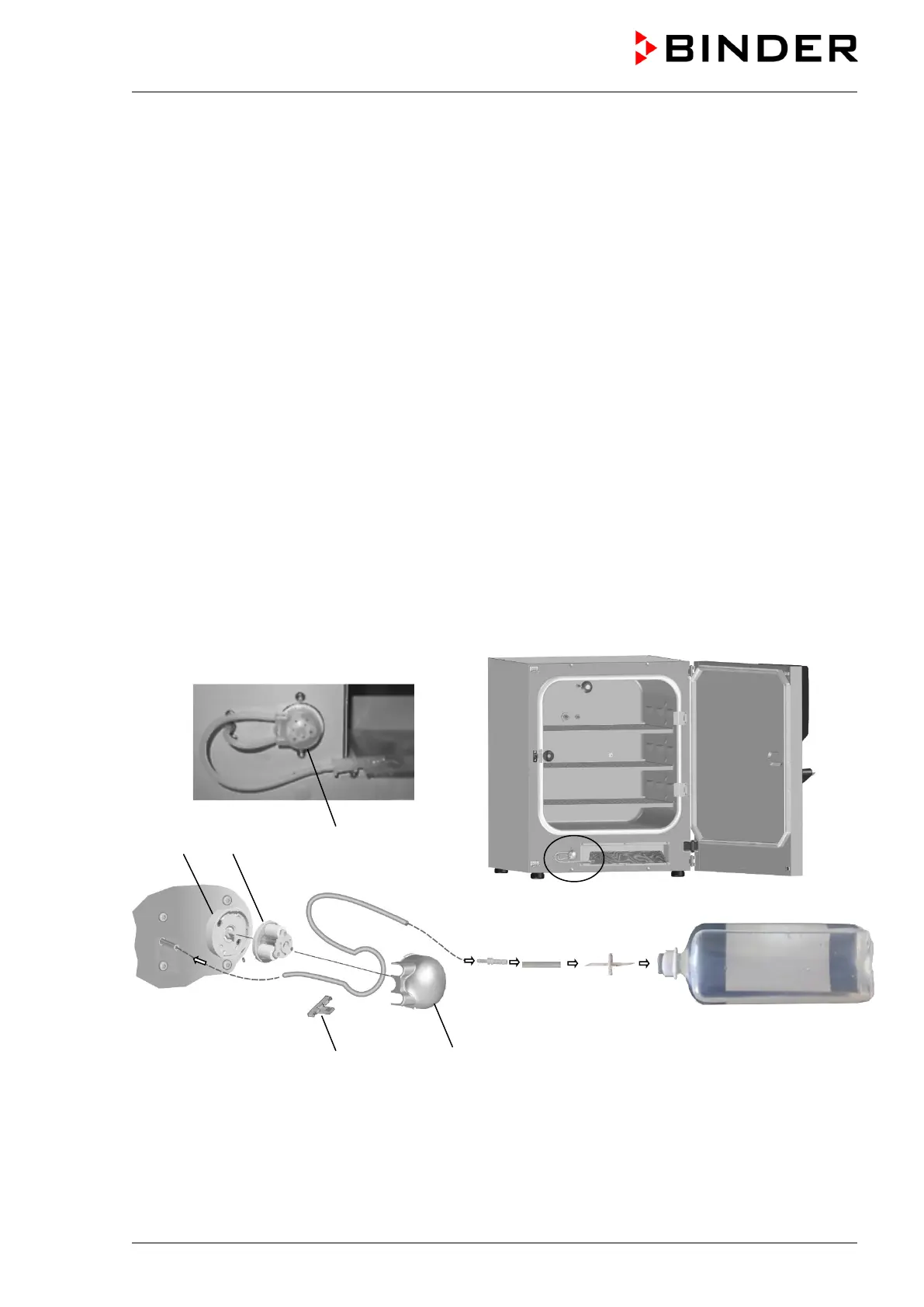

Figure 18: Installation of the water supply via prefilled water bottle
(12) Pump head
(12a) Pump head cover
(12b) Tube retainer
(12c) Rotor
(13) Pump connector
(13) (12c) (12)
(12b) (12a)
①
②
③
④ ⑤ ⑥ ⑦
