Binder CB Series - Mounting the Partition Walls for Cell Therapy Compartmentation

CB / CB-UL, CBF / CBF-UL (E7) 01/2022 Page 55/199
4.7.3 Mounting the partition walls for cell therapy compartmentation

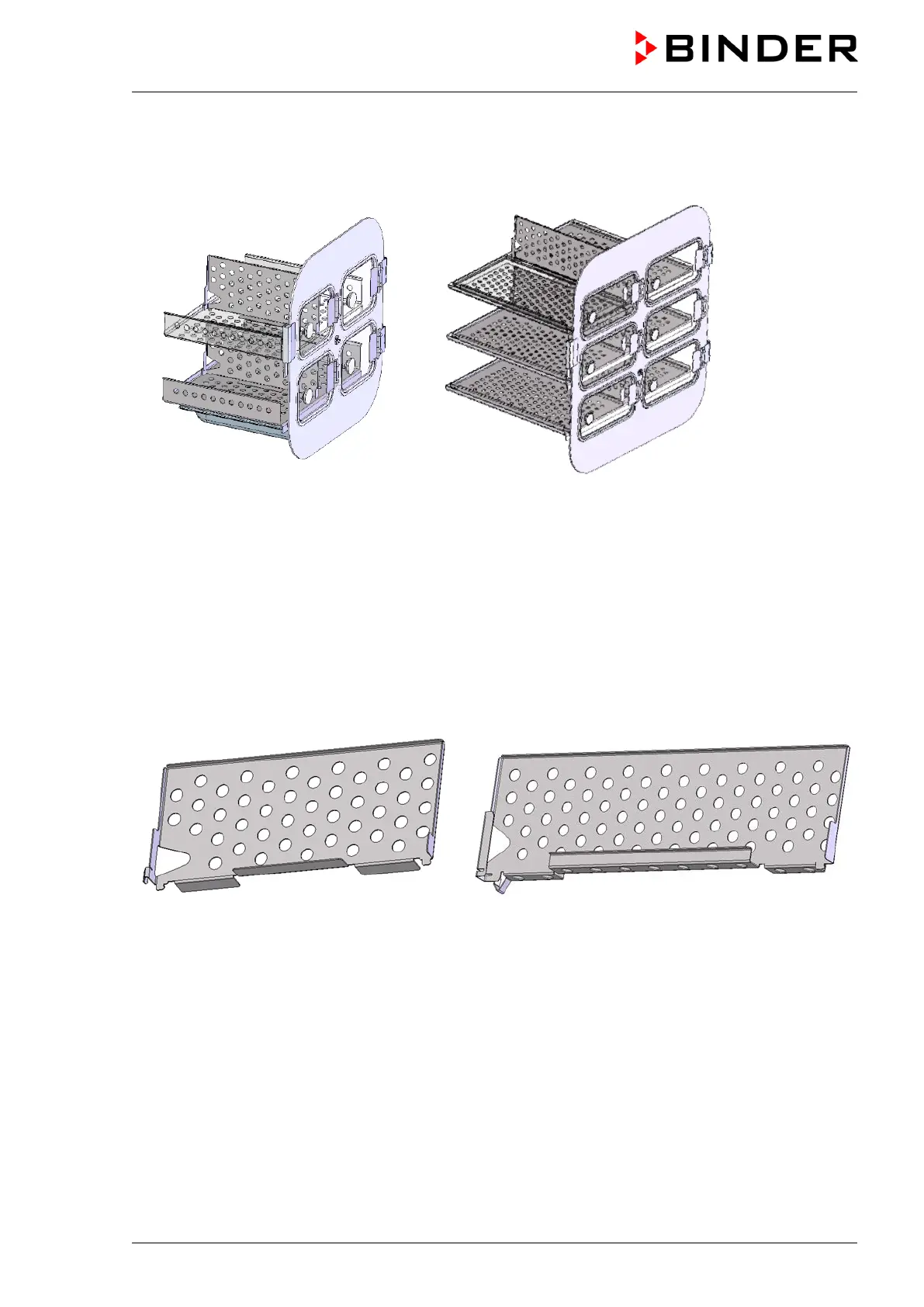

Figure 27: Divided inner door with shelves and partition walls (example, chamber sizes 56 and 170)
The vertical partition wall is used to compartmentalize the interior of the chamber in connection with the
divided inner door. This spatially separates the samples.
The partition wall can be assembled or dismantled without tools and has a secure, vertical position. It can
also be used for chambers with the “Divided inner door” option.
Rear Front
Rear Front
Figure 28: Partition wall size 56 Figure 29: Partition wall size 170 / 260
For assembly, insert the lower rear end of the partition wall from above into the gap between the shelves
so that the rear end hooks onto the rear of the shelf holder.
