Dynamometer Attachments
CAUTION: Shaft Red Dot (dynamometer shaft): The small red dot on the end of
the dynamometer shaft provides an index for proper alignment of attachments
on the dynamometer setup. When affixing any attachment to the shaft, position
the attachment ensuring that its dot for the side to be exercised aligns with the
shaft red dot. Failure to
properly align the dots may result in a reduced range of
motion.
CAUTION: Ensure finger guard is in place when using the knee and hip
attachments. Placing hands or fingers between the dynamometer input
shaft (or attachment) and the mechanical ROM stops may result in
serious injury.

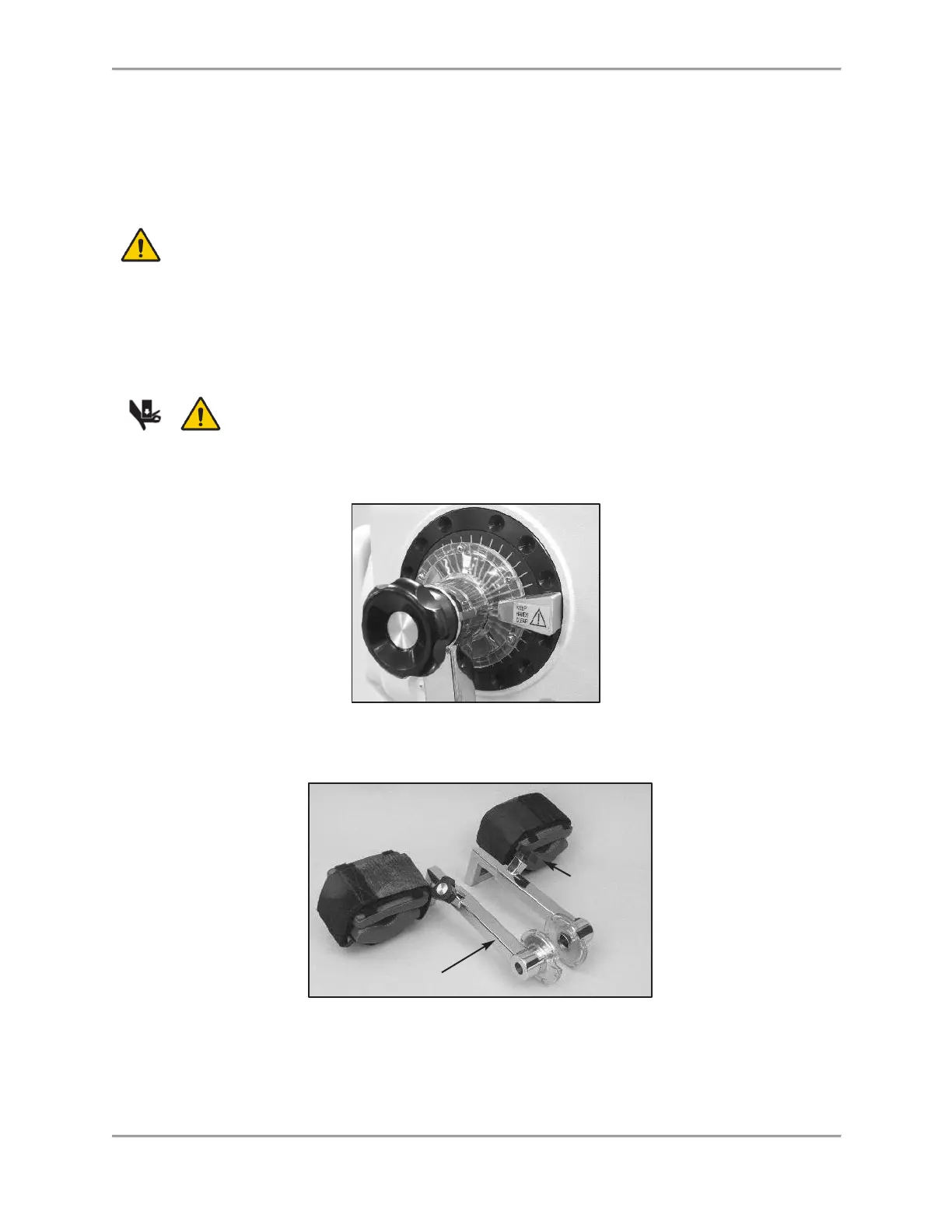

Figure 2.7. Finger Guard Positioned Correctly on Dynamometer for Knee and Hip Attachments.
Figure 2.8. Knee Attachments (Left and Right)
Patterns: Knee:
Extension/Flexion
