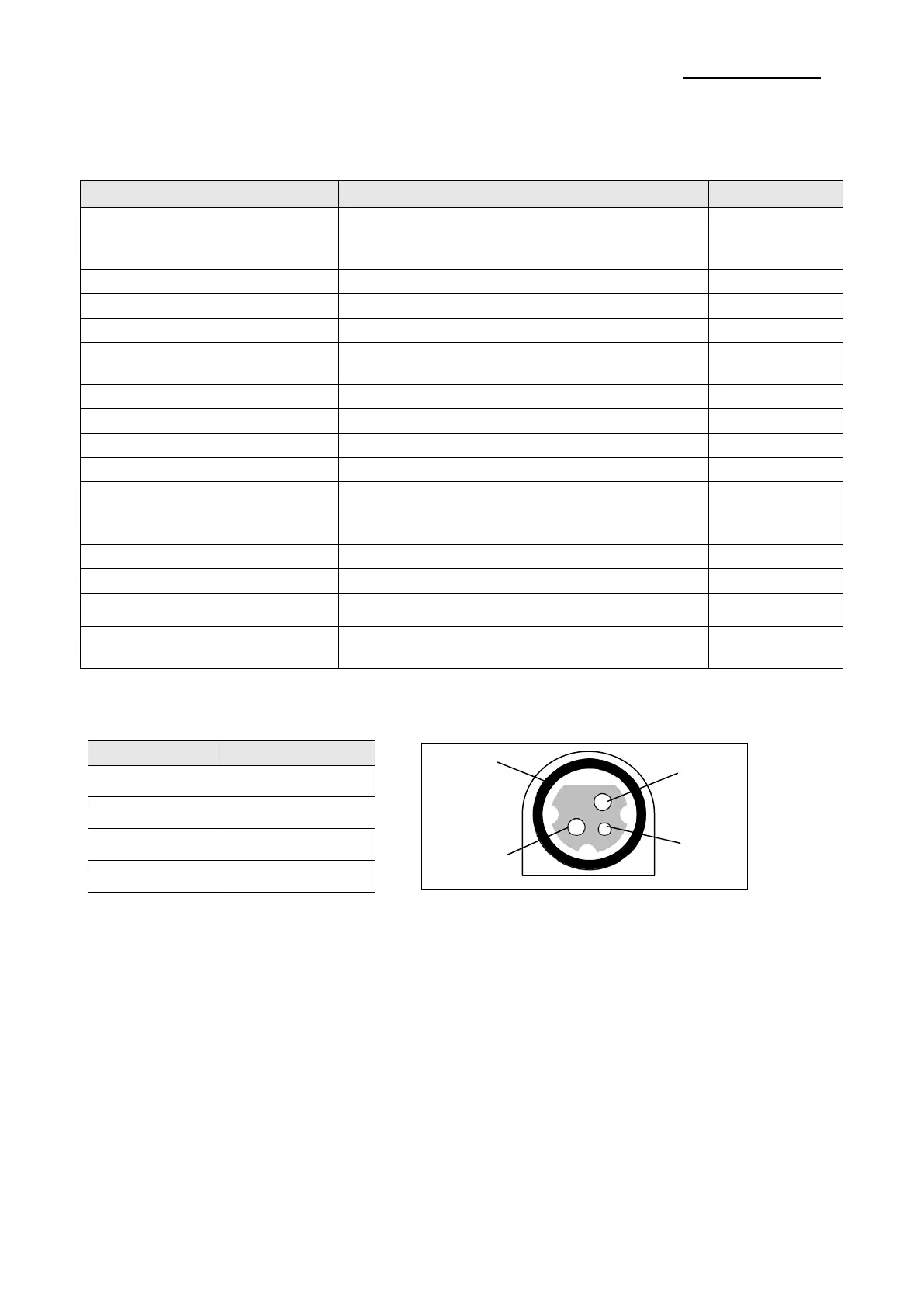

3-4 SMPS Specifications
3-4-1 SMPS (Switching Mode Power Supply) Specifications
Item Description Remark
Input Voltage
Typical : 100V/240V AC
Min : 100V AC
Max : 264V AC
Input Current
Max 1.5A, @100~240V AC Input
Output Voltage
+24V ± 5% Initial Tolerance with no load
Output Current
+24V ± 5%, 0~2.5A
Inrush Current, Cold
100V AC : Max. 30A
240V AC : Max. 50A
No Load Rated Voltage
Min. 22.80V, Std. 24.00V, Max. 25.20V
Full Load Rated Voltage
Min. 22.80V, Std. 24.00V, Max. 25.20V
Rated Current
2.5A, @100~240V AC Input
Ripple and Noise
±250mV @Iout=2.5A, Resistance load
S.C.P(Short Current Protect)
Shutdown Mode
The shutdown shall be cleared by removal of the
short current condition and input power recycling.
O.C.P (Over Current Protection) Min : 5.6A @ 110V AC Input Voltage
O.V.P (Over Voltage Protect) Max : 36V
O.T. P (Over Temperature Protect)
140°C
EFFICIENCY
Average 88% (Min.), per CEC method
@115/230V(60/50Hz),25~100% load
3-4-2 SMPS Output Connector
Pin Number
Signal Name
1 +24 VDC
2 GND(-)
3 N.C
Shell GND(-)
①
②
③
S
hell
