BIXOLON SRP-E770III - 5 Disassembly and Assembly; Case-Lower Block

SRP-E770III
5. Disassembly and Assembly
5-1 Case-Lower Block
5-1-1 Case Lower Block

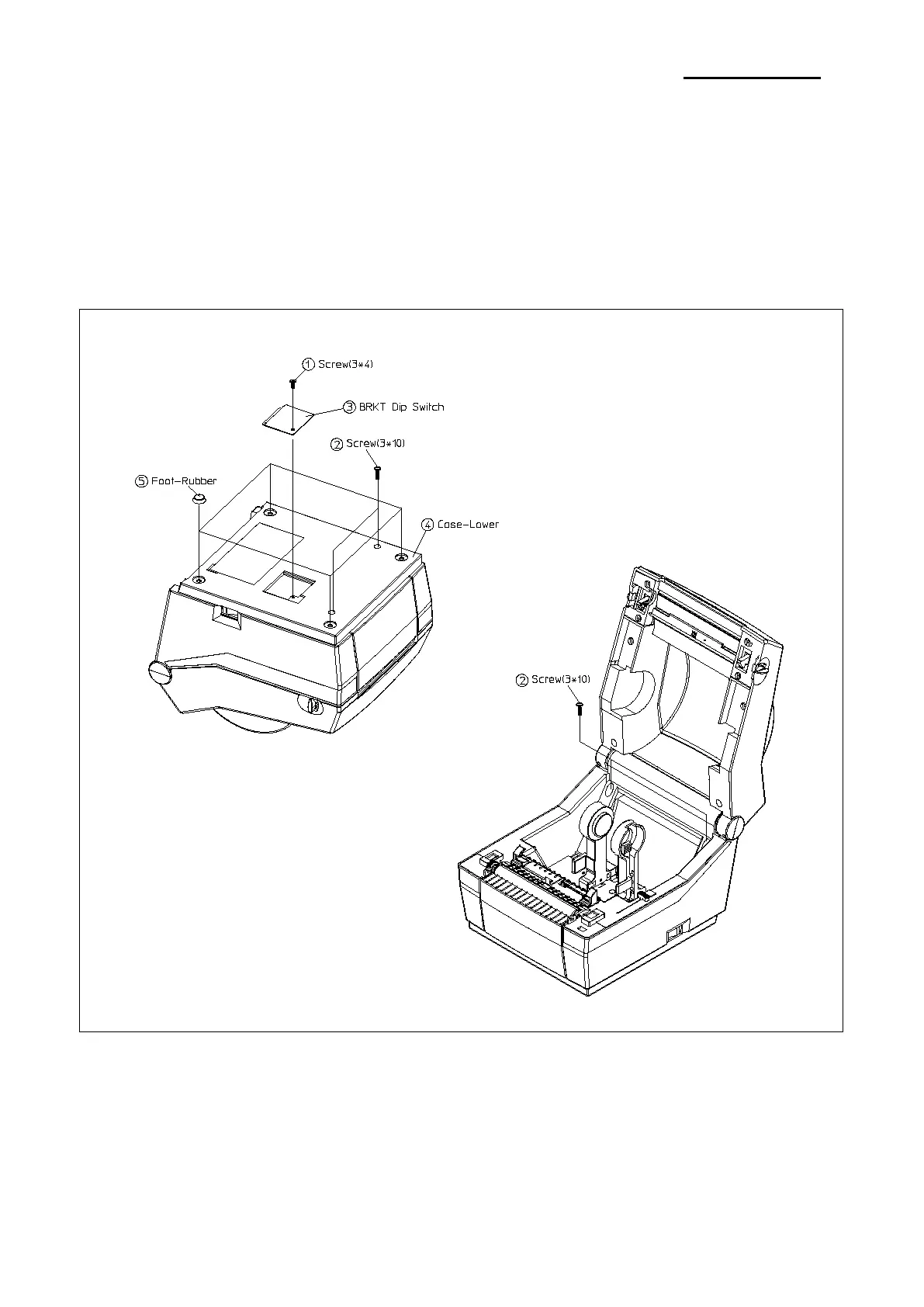

Figure 5-1 Disassembly Case-Lower #1
1. Remove the five screws
① ②
.
2. Separate the ③~⑤ from the printer.
