BIXOLON SRP-E770III - Ethernet Interface

SRP-E770III
3-5-2 Ethernet Interface
1) Ethernet I/F specifications
Item Description Remark
Network Interface
10/100 Base-T All in one type (Auto detection)
Protocol
TCP, UDP, IP, ICMP, ARP
IP mode
Static IP, DHCP(Dynamic Host Configuration Protocol)
Flow control
Hardware (RTS/CTS)

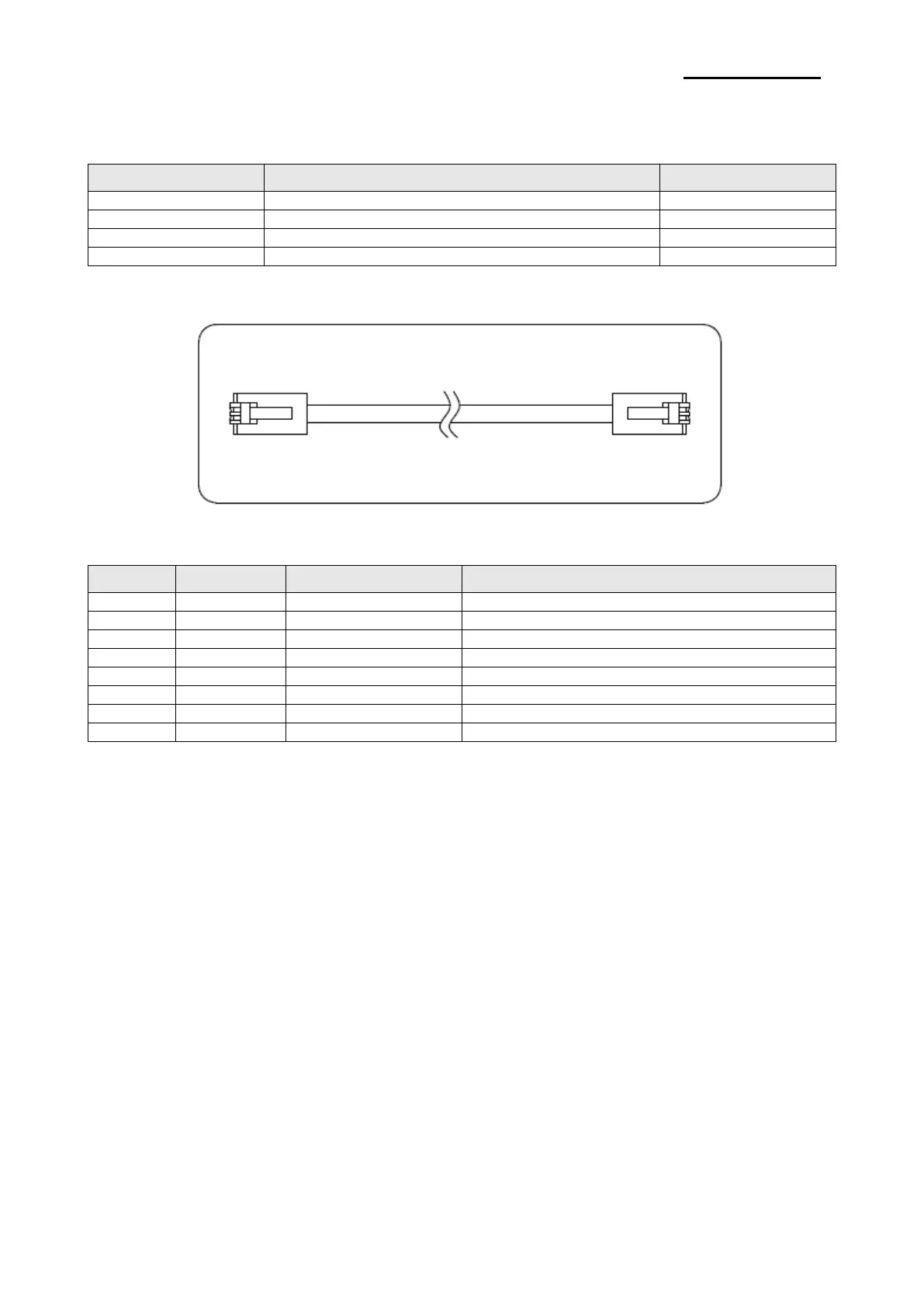

2) Ethernet I/F cable
3) Ethernet I/F signal descriptions
Pin No. Signal name Assignment (Color) Function
1
TD+
White Orange
Transmit +
2
TD-
Orange
Transmit -
3
TCT
White Green
Receive +
4
NC
Blue
5
NC
White Blue
6
RCT
Green
Receive -
7
RD+
White Brown
8
RD-
Brown
* For more information, refer to the Ethernet User Manual in Bixolon Web Site.
