BIXOLON SRP-E770III - TPH Assembly Block

SRP-E770III
5-3-3 TPH Assembly Block

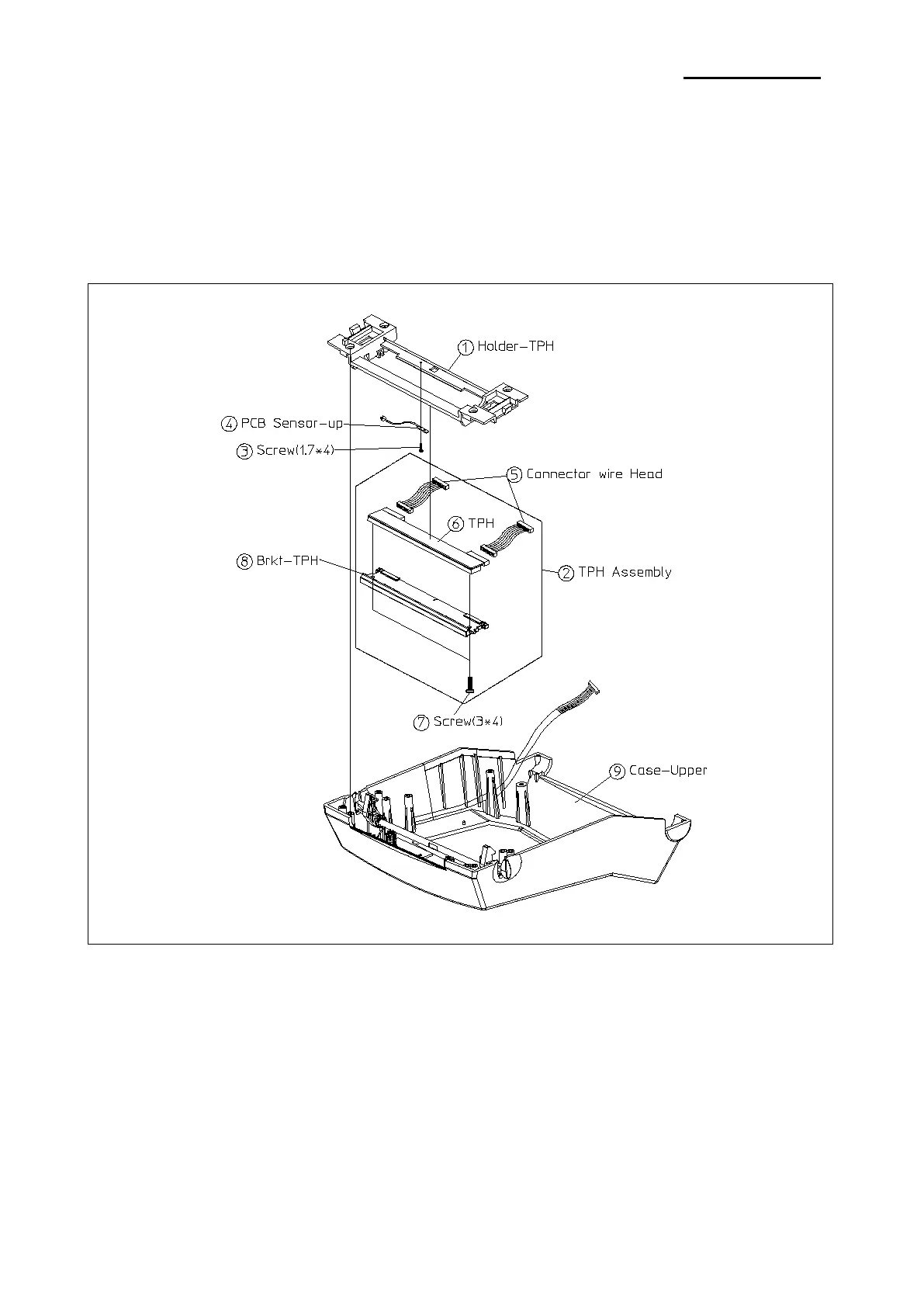

Figure 5-11 Disassembly Case Upper #3
1. Separate the TPH Assembly
②
from the Holder TPH
①
.
2. Remove the one Screw③ and separate the PCB Sensor-up④.
3. Separate the two Connectors Wire Head⑤ from the TPH⑥.
4. Remove the two Screws⑦.
5. Separate the Brkt TPH⑧ from the TPH⑥.
Ver. 1.01
- 46 -
