SRP-E770III
5-3-2 Holder TPH Block

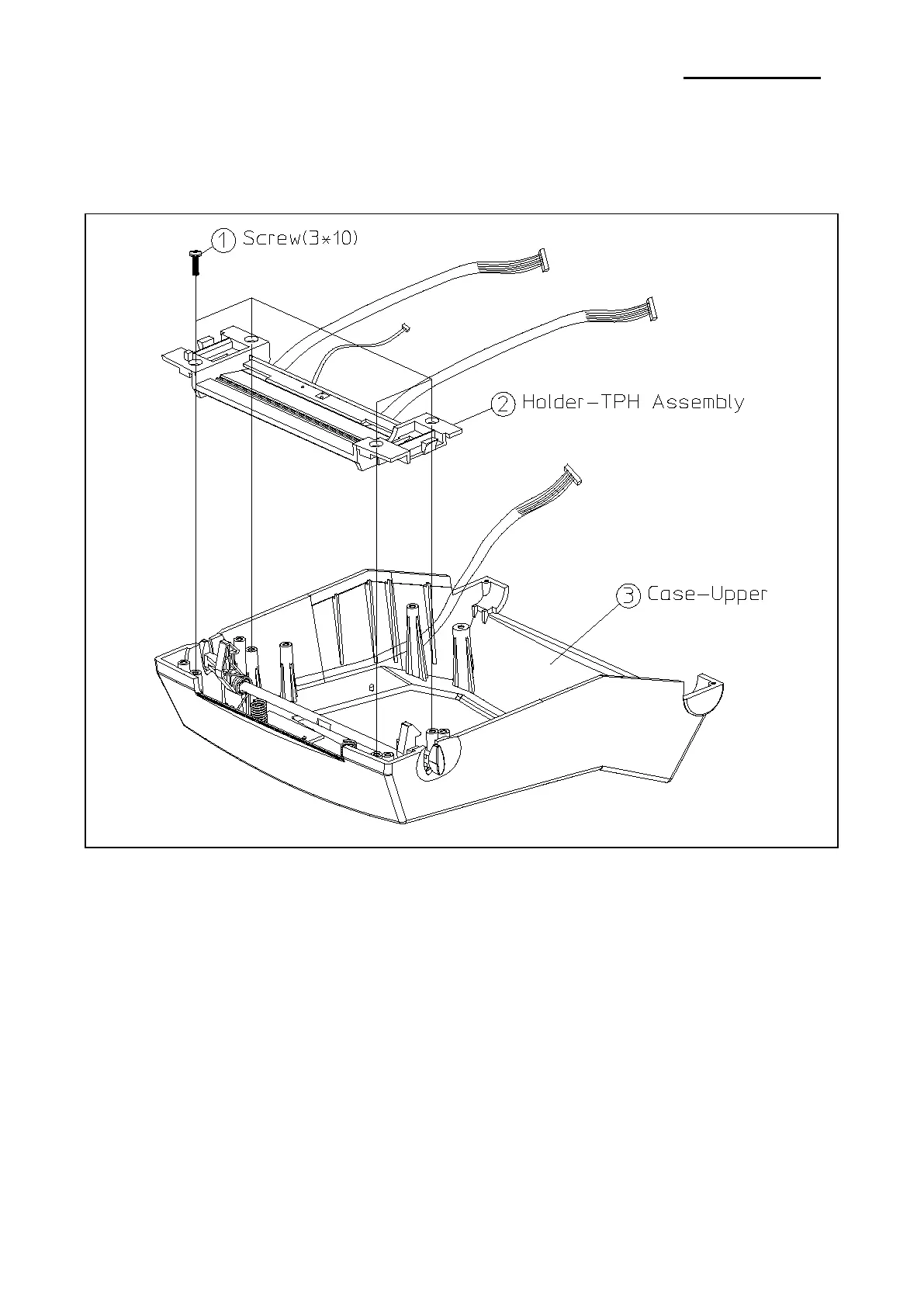

Figure 5-10 Disassembly Case Upper #2
1. Remove the four Screws
①
.
2. Separate the Holder-TPH Assembly② from the Case-Upper③.
Ver. 1.01
- 45 -
