BIXOLON SRP-E770III - Case Upper Block

SRP-E770III
5-3 Case Upper Block
5-3-1 Case Upper Block

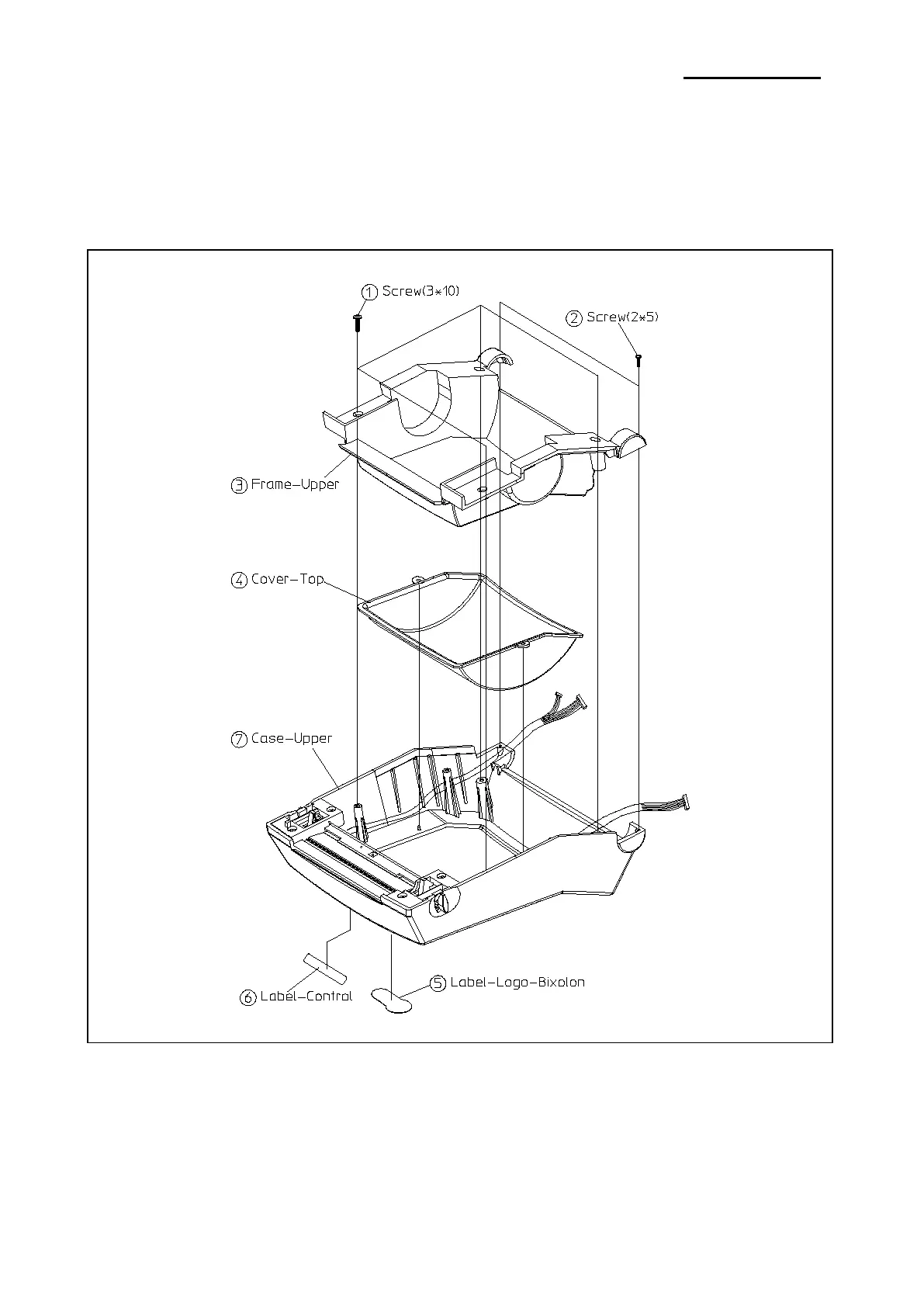

Figure 5-9 Disassembly Case Upper #1
1. Remove the four Screws
①
and two Screw
②
.
2. Separate the
③
~
⑥
from the Case-Upper
⑦
.
