SRP-E770III
5-2-6 Paper Holder Block

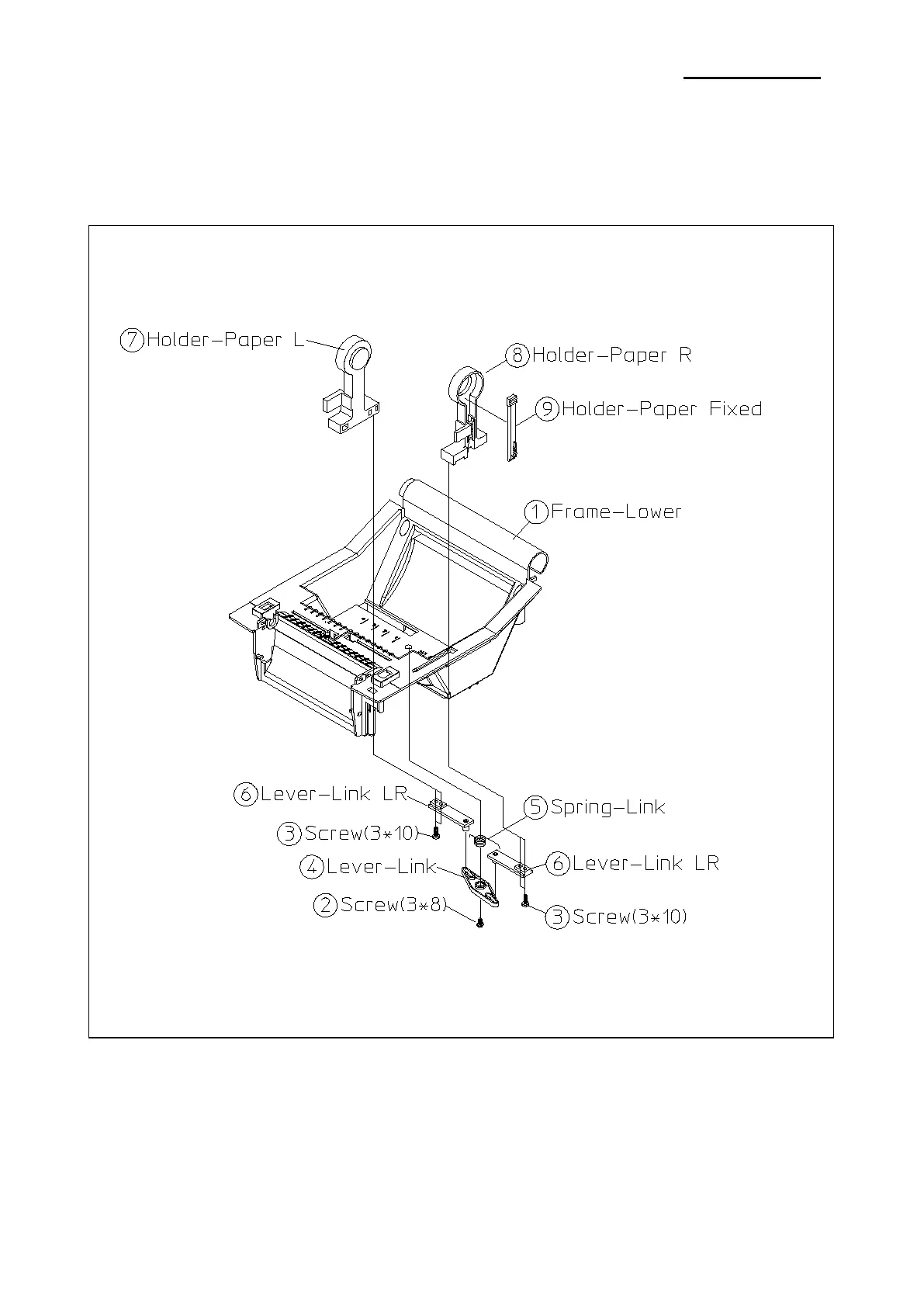

Figure 5-8 Disassembly Frame Lower #6
1. Remove the one Screw
②
and four Screws
③
.
2. Separate the ④~⑧ from the Frame -Lower①.
3. Separate the Holder-Paper Fixed⑨ from the Holder-Paper R⑧.
Ver. 1.01
- 43 -
