BIXOLON SRP-E770III - Cover STD Block

SRP-E770III
5-2-2 Cover STD Block

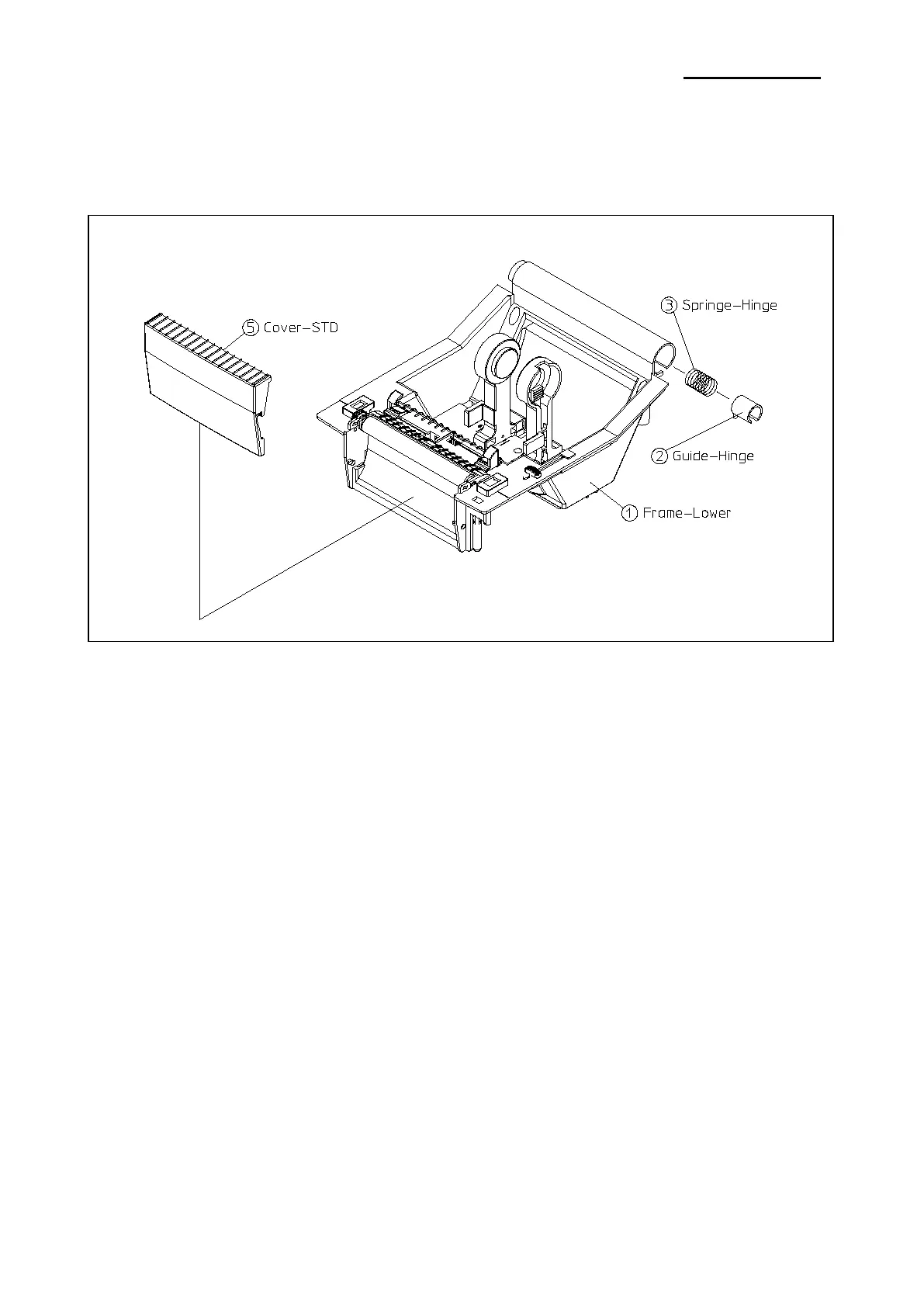

Figure 5-4 Disassembly Frame Lower #2
1. Separate the Guide hinge
②
and Spring hinge
③
from the Frame-Lower
①
.
2. Separate the Cover-STD④ from the Frame-Lower①.
