BIXOLON SRP-E770III - Main PCB Block

SRP-E770III
5-1-2 Main PCB Block

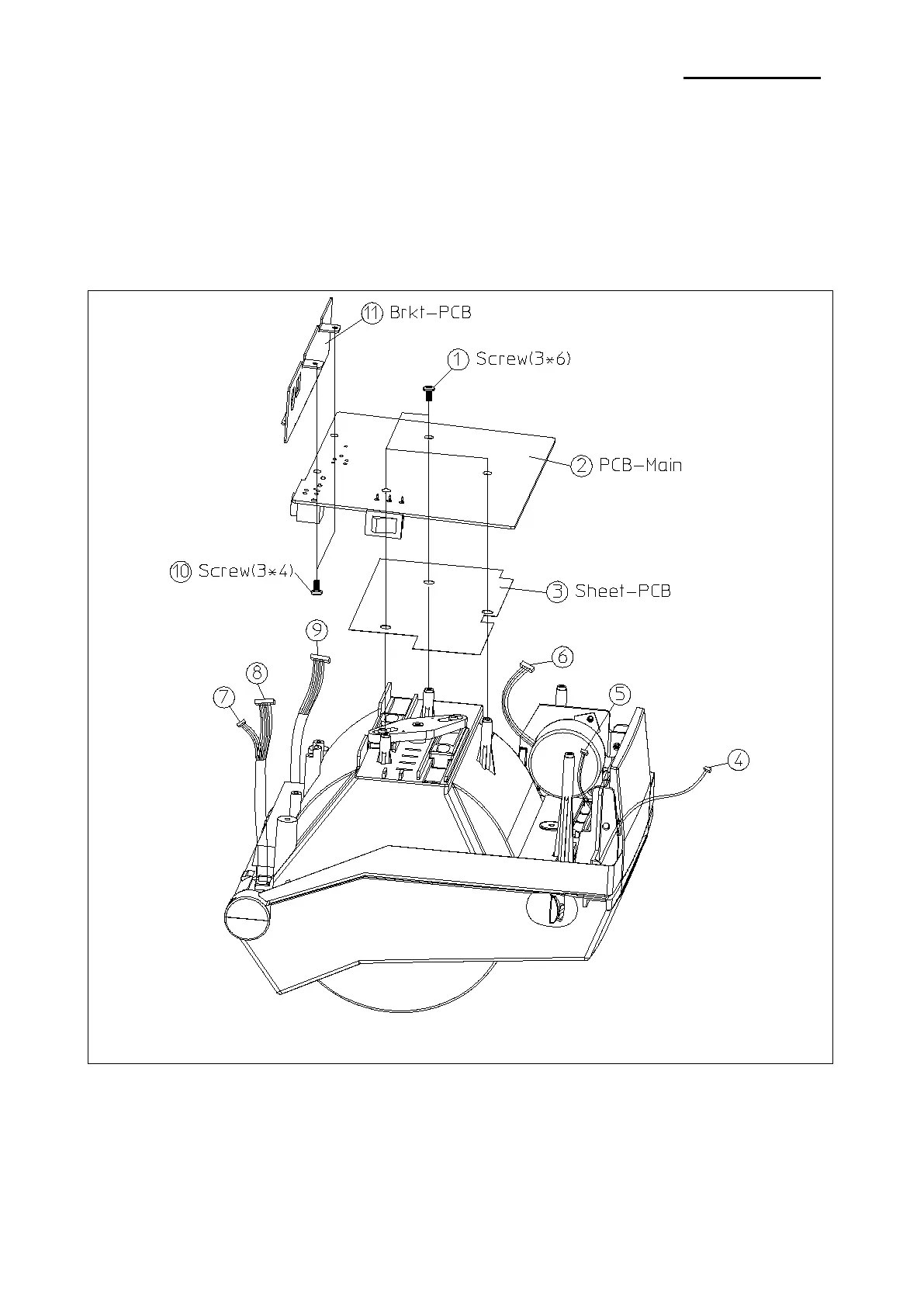

Figure 5-2 Disassembly Case-Lower #2
1. Remove the three Screws①.
2. Remove the connector wires④~ ⑨ from the PCB-Main②.
3. Separate the PCB Main② and sheet PCB③ from the Printer.
4. Remove the two Screws⑩.
4. Separte the Brkt-PCB⑪ from the PCB-Main②.
Ver. 1.01
- 37 -
