SRP-E770III
5-2-4 Platen Roller Block

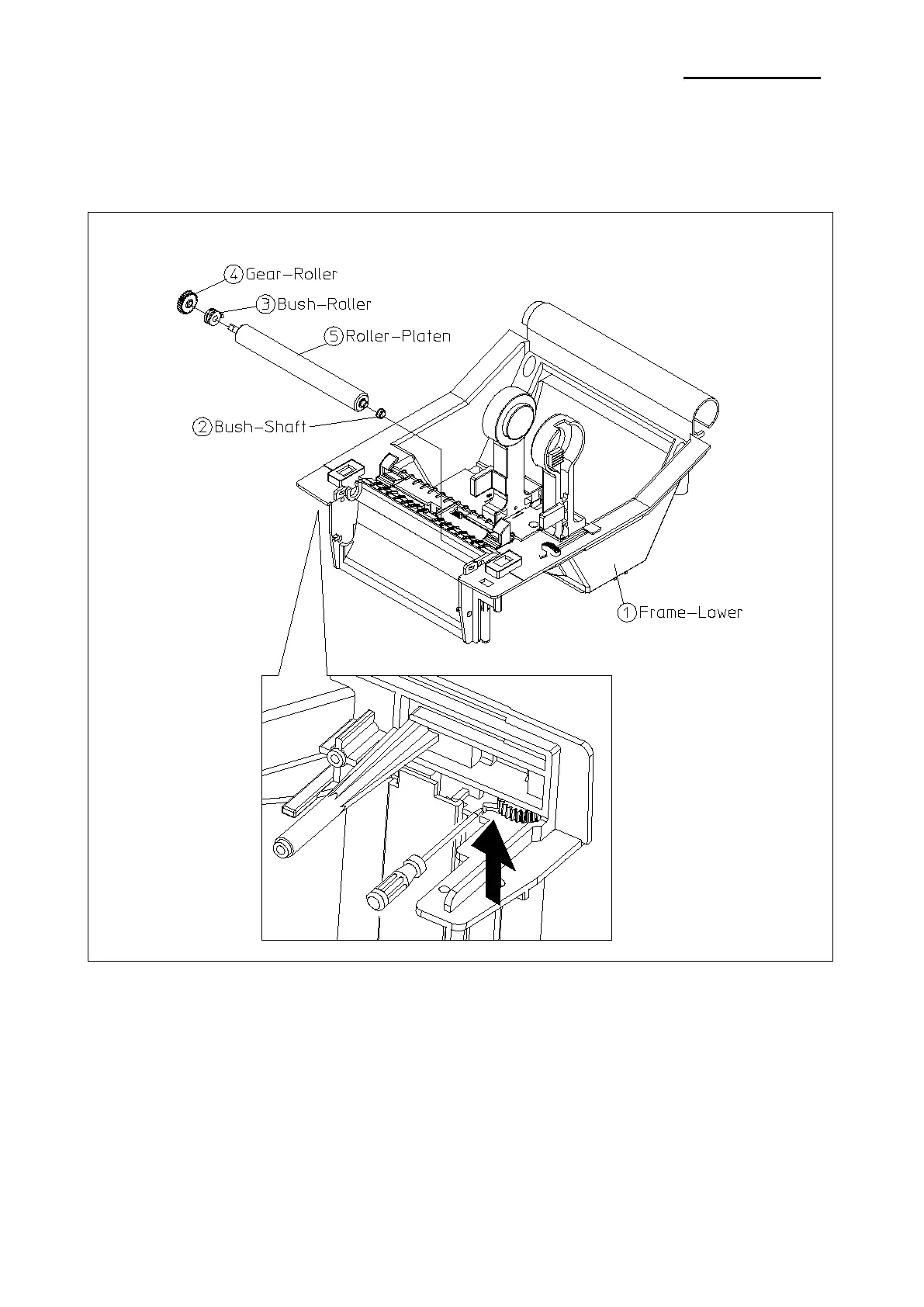

Figure 5-6 Disassembly Frame Lower #4
1. Turn the Bush-Roller
③
.
2. Separate the ②~⑤ from the Frame-Lower①.
Ver. 1.01
- 41 -
