BK Precision 2190D User Manual

96
Save to
Device
Save waveforms to the
oscilloscope’s internal memory.
Waveform
No.1 to No.20
Press the “waveform” option
button or turn the “Universal”
knob to select storage location.
Save
Save waveform to the selected
storage location.
Recall
Recall the “Waveform” from
the selected storage location in
“Waveform” option.

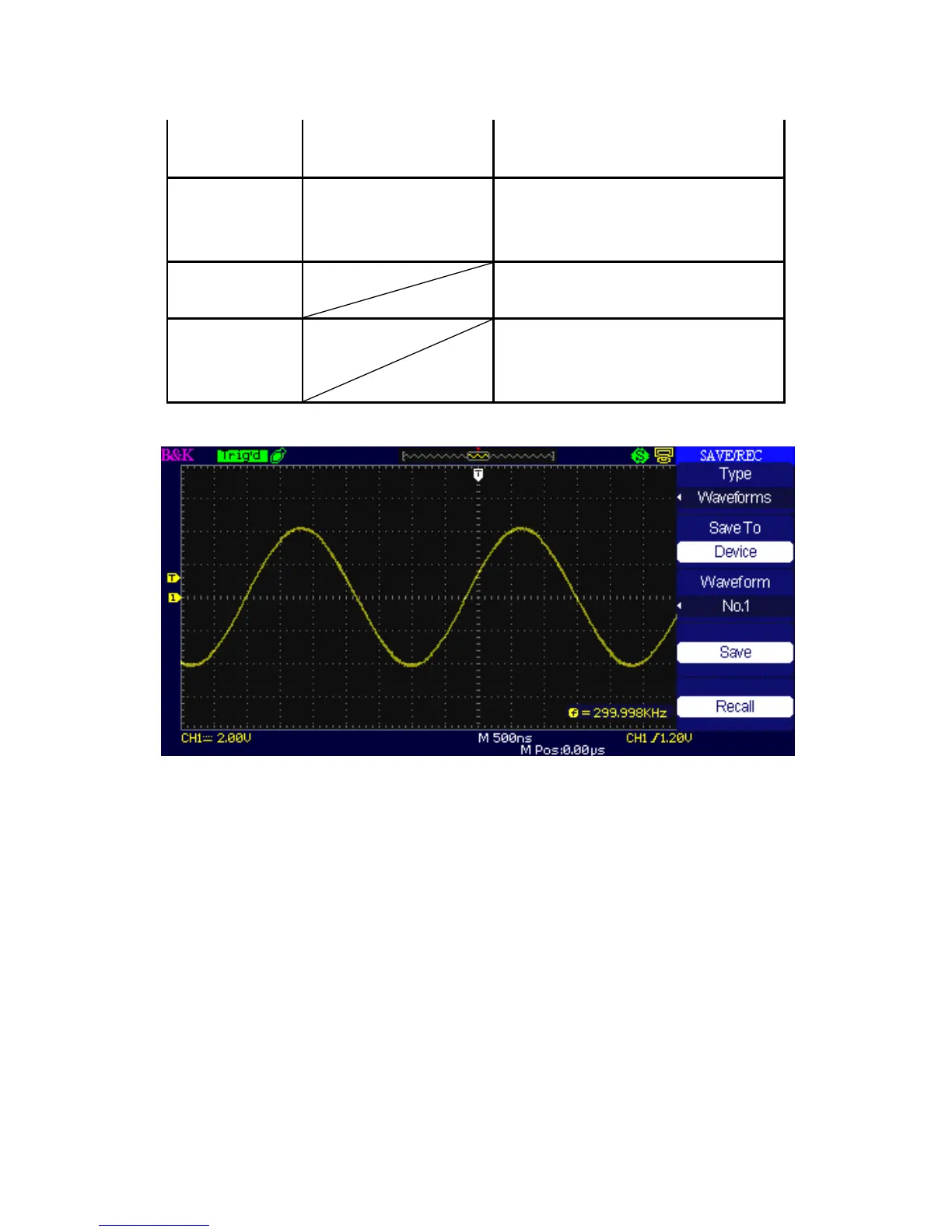

Figure 3.50 – Save Waveform Screen (To Internal Storage)
To save waveforms in internal memory, follow the steps below:
1. Input a sine signal to channel 1 and press the “Auto”
button.
2. Press the “SAVE/RECALL” button to enter “SAVE/RECALL”
display menu.
3. Press the “Type” option button to select “Waveforms”.
4. Press the “Save to” option button to select “Device”.
5. Press the “Waveform” option button or turn the
“Universal” knob to select “No.1”.
6. Turn the “Volts/div” knob or “Time/div” knob to adjust
the waveform that you want.
