Table 3.18 – Pulse Trigger Function Menu 2
Option
Setting
Description
Type
Pulse
Select the pulse to trigger the pulse
match the trigger condition.
Mode
Auto
Normal
single
Select the type of triggering; Normal
mode is best for most Pulse Width
trigger applications.
Set up
Enter the “Trigger setup menu”.
Next Page
Page 2/2
Press this button to return to the first
page.

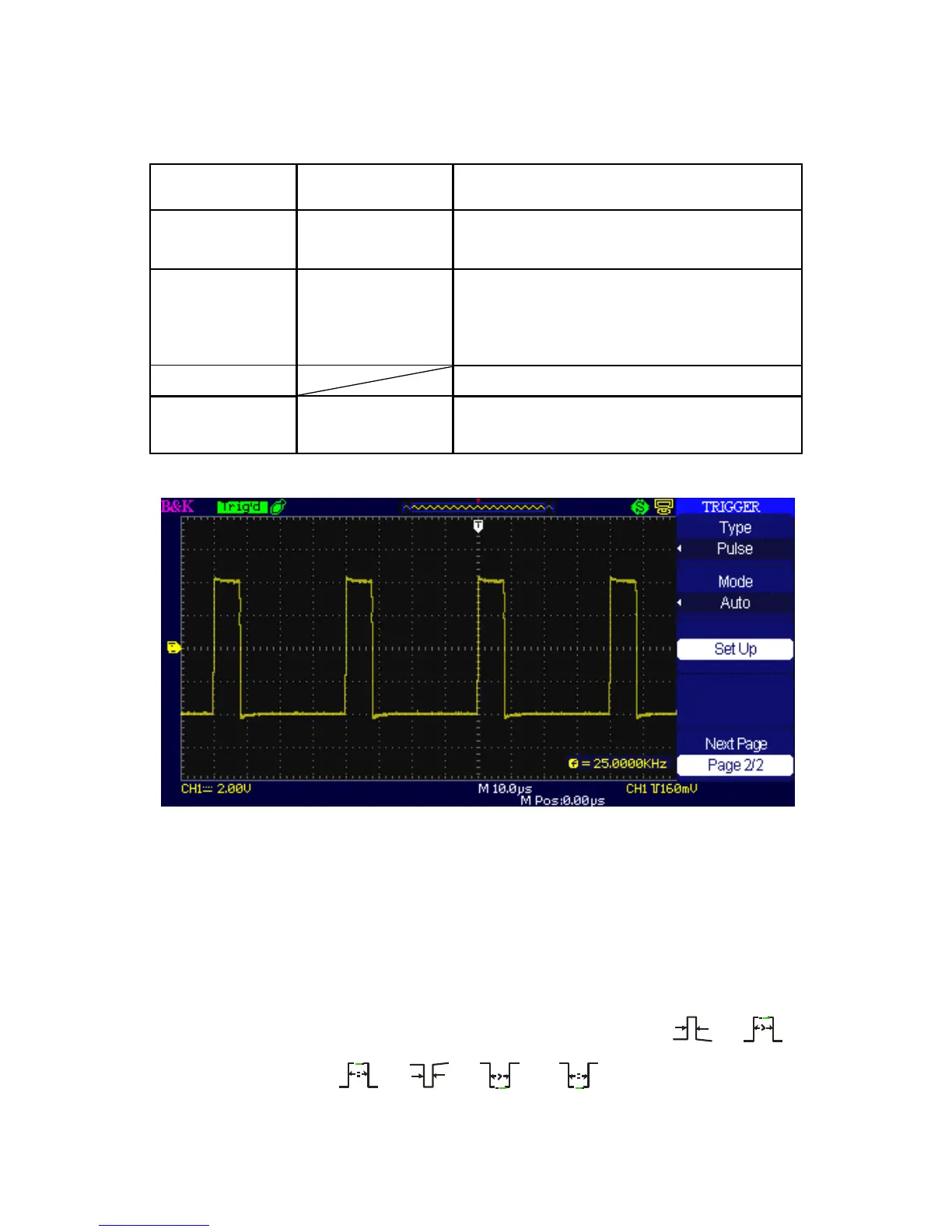

Figure 3.24 – Pulse Trigger Menu 2
Operating Instructions:
1. Setup Type
 Press the “TRIG MENU” button to display “Trigger” menu.
 Press the “Type” option button to select “Pulse”.
2. Set up condition
 Press the “When” option button to select “ ”, “
”, “ ”, “ ”, “ ”or“ ”.
