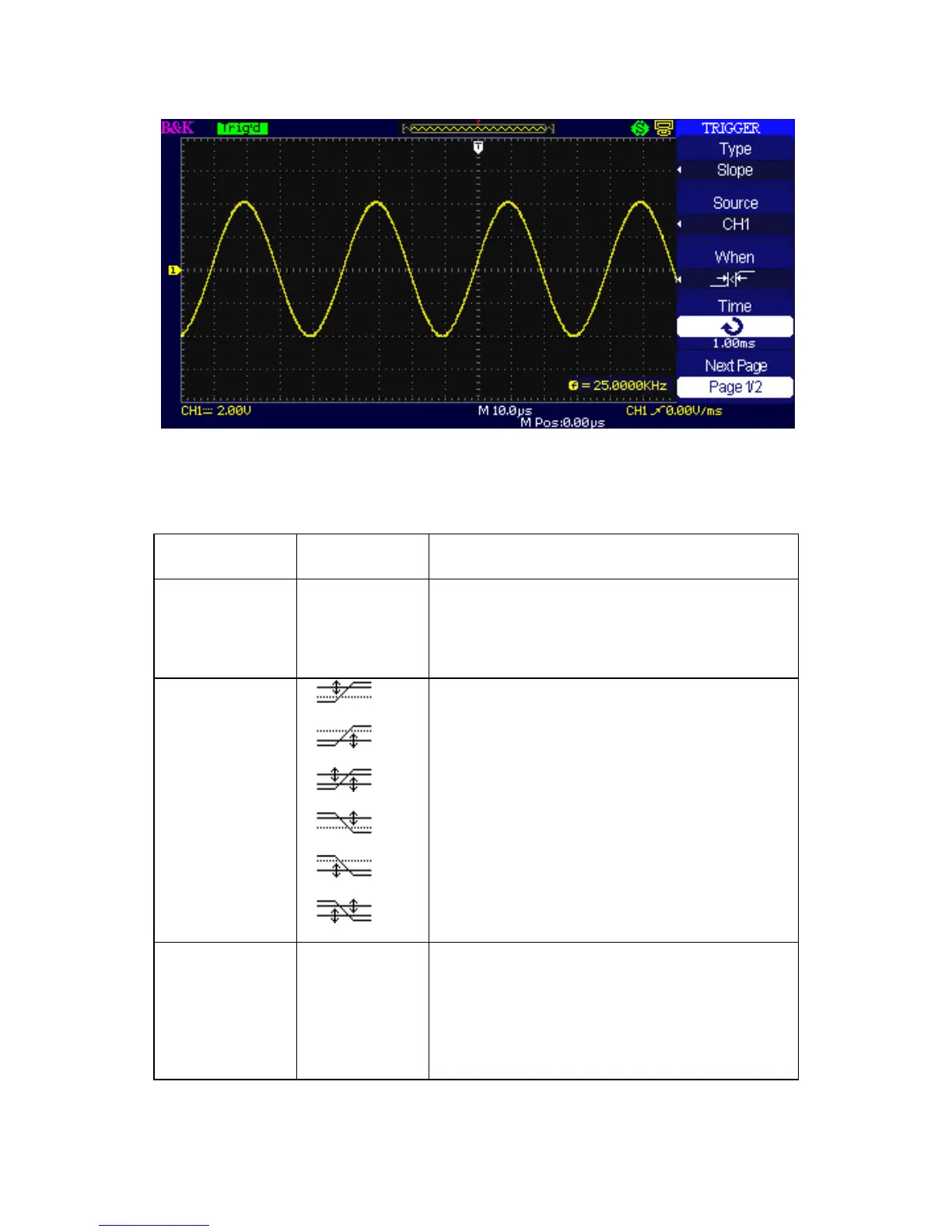

Figure 3.26 – Slope Trigger Menu 1
Table 3.22 – Slope Trigger Function Menu 2
Trigger on positive slope or negative
slope according to setup time of the
oscilloscope.
Select the trigger level that can be
adjusted by “LEVEL” knob. You can
adjust “LEVEL A”, “LEVEL B” or adjust
them at the same time.
Use this mode to let the acquisition free-
run in the absence of a valid trigger; This
mode allows an untriggered, scanning
waveform at 100 ms/div or slower time
base settings.
