BK Precision 2190D User Manual

59
Channels
CH1-CH2
Set the trigger channels
Source
CH1
CH2
Set trigger type information for CH1
signal
Set trigger type information for CH2
signal
Mode
Pulse
Set trigger type of the vertical channel
signal to Pulse trigger.
Next Page
Page 1/2
Enter the second page of Alternative
trigger menu.

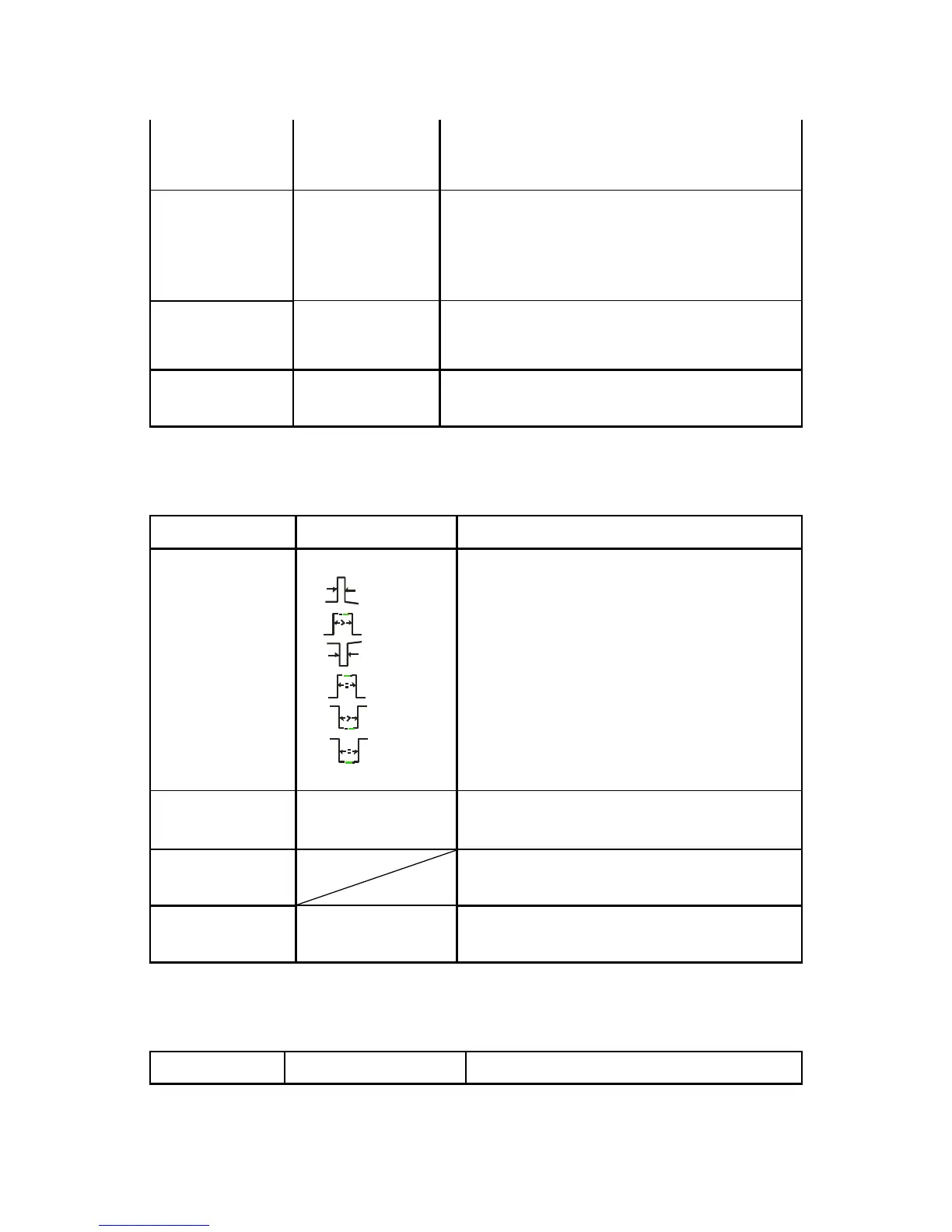

Table 3.26 – Alternate Trigger Pulse Mode Function Menu 2
Option
Setting
Description
When
Select how to compare the trigger
pulse relative to the value selected in
the Set Pulse Width option.
Set Width
20.0ns-10.0s
Selecting this option can turn the
universal to set up the pulse width.
Set up
Enter the “Trigger Setup Menu” (See
Table 3.16).
Next Page
Page 2/2
Press this button to return to the first
page.
Table 3.27 – Alternate Trigger Video Mode Function Menu 1
Option
Setting
Description
