BK Precision 2190D User Manual

61

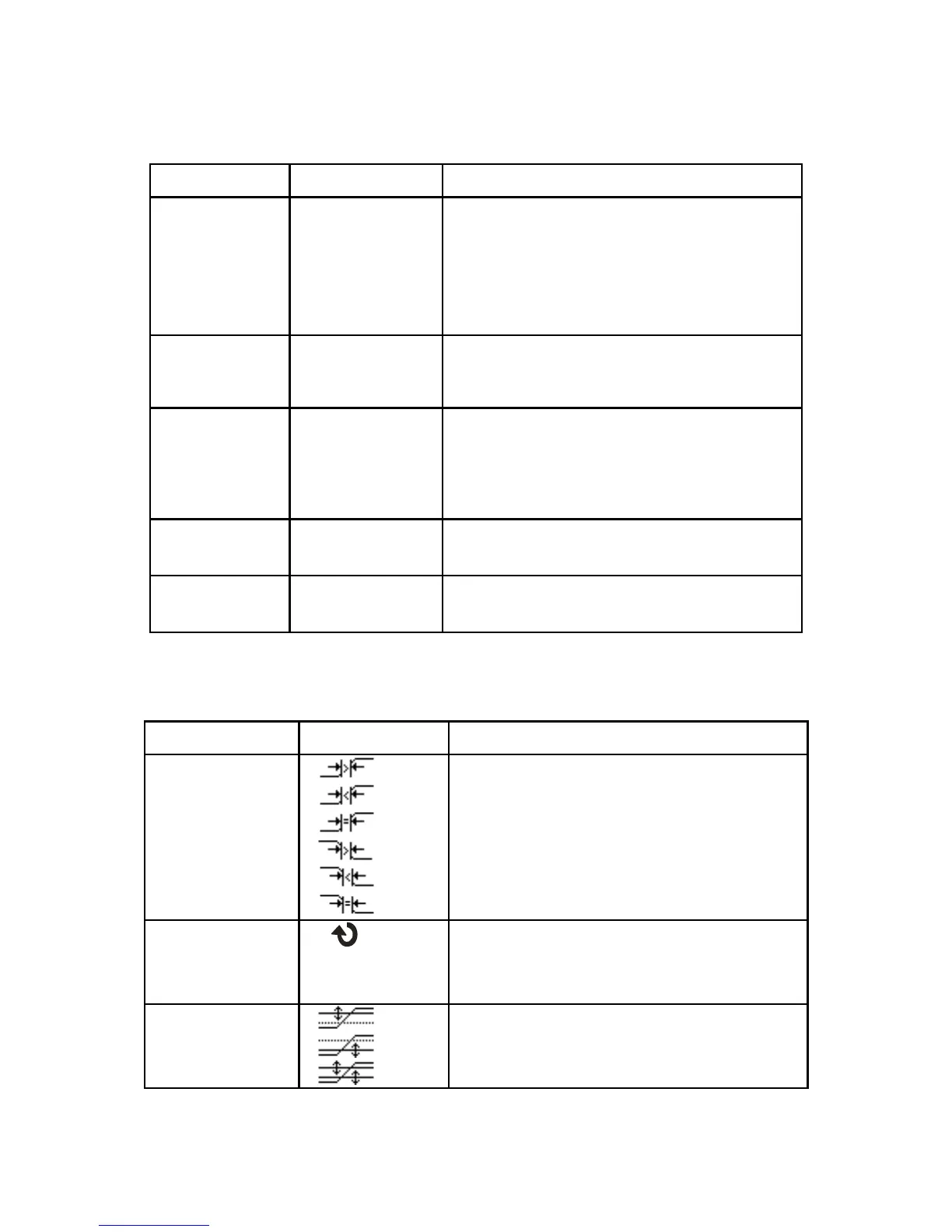

Table 3.29 – Alternate Trigger Slope Mode Function Menu 1
Option
Setting
Description
Type
Alternative
The trigger signal comes from two
vertical channels when you use
alternative trigger. In this mode, you
can observe two irrelative signals at the
same time.
Channels
CH1-CH2
Set the trigger channels
Source
CH1
CH2
Set trigger type information for CH1
signal
Set trigger type information for CH2
signal
Mode
Slope
Set trigger type of the vertical channel
signal to slope trigger.
Next Page
Page 1/2
Enter the second page of the
alternative trigger.
Table 3.30 – Alternate Trigger Slope Mode Function Menu 2
Option
Setting
Description
When
Select slope trigger condition.
Time
<Set time>
Turn the “Universal” knob to set the
slope time. Time setup range is 20ns-
10s.
Vertical
Select the trigger level that can be
adjusted by “LEVEL” knob. You can
adjust “LEVEL A”, “LEVEL B” or adjust
